跑偏開關ROS-2D 廠家
中文介紹
ROS-2D跑偏開關是專為帶式輸送機設計的安全保護裝置，主要用于監測和預防皮帶跑偏。該產品通常安裝在皮帶輸送機兩側的縱梁上，距離輸送機頭部或尾部約0.4-2米處。當皮帶發生跑偏時，防偏立桿會被推動，當偏移角度達到10°時，會觸發報警微動開關，發出皮帶跑偏信號；若皮帶繼續跑偏，立桿偏移20°時，另一組微動開關被觸發，輸送機將自動停機保護。
ROS-2D跑偏開關具有自動復位設計，方便現場使用。其防水、防塵設計使其適合露天安裝和使用。立桿額定轉速為5000r/min，適用于帶速小于6.35m/s的皮帶輸送機。此外，該產品采用雙側引線結構，無需分流箱即可方便接線，且多角度可調的防偏立桿法向角調節范圍為22.5°。堅固耐用的鑄鋁外殼，防護等級IP65，確保了設備在惡劣環境下的可靠性和穩定性。
在技術參數方面，ROS-2D跑偏開關的環境溫度范圍為-30℃～+50℃，相對濕度不大于85%。開關殼體為鑄鋁防風雨外殼，防護等級NEMA4。觸點容量為2個SPDT（單刀雙擲開關），10A/500V，可分別用于報警和停機。輸出接點為雙斷點速動純銀，動作力僅需2.5kg。
ROS-2D跑偏開關廣泛應用于各類皮帶輸送機、封閉式給煤機、堆料/取料輸送機、波型擋邊輸送機以及裙邊皮帶給煤/給料機等設備，為工業生產中的物料輸送提供了可靠的安全保障。
English Introduction
The ROS-2D belt misalignment switch is a safety protection device specifically designed for belt conveyors, mainly used to monitor and prevent belt misalignment. It is usually installed on the side beams of the belt conveyor, about 0.4-2 meters away from the head or tail of the conveyor. When the belt deviates, the deflection rod will be pushed. When the deflection angle reaches 10°, the alarm micro-switch will be triggered, sending a belt misalignment signal; if the belt continues to deviate and the rod deflects 20°, another set of micro-switches will be triggered, causing the conveyor to automatically shut down for protection.
The ROS-2D belt misalignment switch features an automatic reset design for convenient on-site use. Its waterproof and dustproof design makes it suitable for outdoor installation and use. The rod has a rated speed of 5000r/min and is suitable for belt conveyors with a belt speed of less than 6.35m/s. In addition, the product adopts a dual-side wiring structure, which allows convenient wiring without a shunt box, and the multi-angle adjustable deflection rod has a normal angle adjustment range of 22.5°. The robust and durable cast aluminum housing, with an IP65 protection rating, ensures the reliability and stability of the equipment in harsh environments.
In terms of technical parameters, the ROS-2D belt misalignment switch has an ambient temperature range of -30℃～+50℃ and a relative humidity of no more than 85%. The switch housing is a cast aluminum weatherproof enclosure with a NEMA4 protection rating. The contact capacity is 2 SPDT (single-pole double-throw switch), 10A/500V, which can be used for alarm and shutdown respectively. The output contact is a double-break quick-action pure silver, and the actuating force is only 2.5kg.
The ROS-2D belt misalignment switch is widely used in various belt conveyors, enclosed coal feeders, stacking/reclaiming conveyors, wave-sided conveyors, and skirted belt coal/feeders, providing reliable safety protection for material handling in industrial production.
跑偏開關
LW-PKG-12-30，PK1-2BW，PXA-34K，PXA-34KK-A，PH12-30，ROS-2D，TLPK，WHKP-12-30，XLPP，YTJKPT1，YTJKPT2，YWPPH，ZWQ-I2-30， DDP-LJ2， DPK-12-30，DPP-LJ2, HFKPT1-12-30，HFKPT1-20-35，
工作原理
跑偏開關固定在輸送機皮帶支架上，動作桿靠在皮帶一側，當皮帶跑偏時，迫使動作桿偏離，觸動報警微動開關。如果繼續偏離，觸動另一組觸點，輸送機就會保護性停機。
主要技術數據
輸出觸點：兩組SPDT，10A/500V；
動作角度：第10度，第二級20度；
作用力：3-4kg；
動作桿距皮帶邊緣安裝距離：25-75mm；
出線接口螺紋：3/4″NPT，兩個；
防護等級：IP65，適合室外安裝。

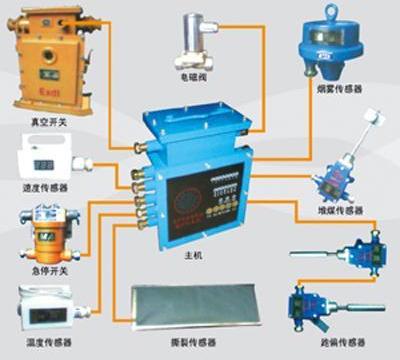

跑偏開關（Belt Sway Switches）又稱防偏開關，也叫兩級跑偏開關。用于檢測帶式輸送機運行中的跑偏現象，按皮帶實際跑偏量輸出報警或停機信號，可有效的防止由皮帶跑偏而產生的事故，是一種帶式輸送機的保護裝置。
安裝和調整
1.跑偏開關設在輸送帶兩側，立輥應與輸送帶邊平面垂直，并使輸送帶兩邊位于立輥高度1/3處。
2.跑偏開關立輥與輸送帶正常位置的間距宜為50～100mm。
3.跑偏開關數量應根據輸送機長度、類型及布置情況進行確定。一般應在輸送機頭部、尾部、凸弧段、凹弧段和在輸送機中間位置進行設置。（注：當輸送機較長時，在輸送機中間位置可每隔30～35米設1對）
4.跑偏開關應通過安裝支架與輸送機中間架連接，開關支架應在輸送機安裝完成后與輸送機機架焊接，跑偏開關與跑偏開關支架用螺栓固定。
適用范圍
兩級跑偏開關廣泛用于冶金、煤炭、水泥建材、采礦、電力、港埠、冶金、化工等域的各種帶式輸送設備。
|
