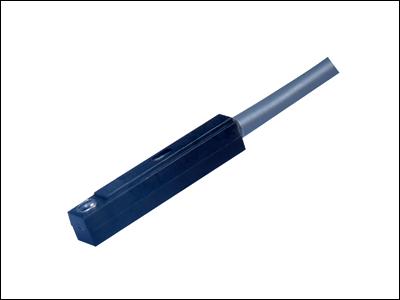

CS1-G系列磁性開關中英文產品介紹
中文版：
CS1-G系列磁性開關是一款專為工業自動化領域設計的非接觸式位置檢測設備。本產品采用優化的電磁感應原理，可在各類復雜工況下實現穩定的物體位置識別與狀態反饋。其緊湊型結構設計兼顧了安裝便捷性與環境適應性，滿足現代工業設備對傳感器模塊的高集成化需求。
產品采用耐環境性強的工程塑料外殼，配合雙重密封工藝，可在-25℃至+85℃溫度范圍內穩定工作。優化的磁路設計確保檢測距離達到行業領先水平，同時具備良好的抗干擾能力。特殊設計的防護結構使產品有效抵御粉塵、油污及潮濕環境的影響，IP67防護等級設計為設備長期可靠運行提供保障。
技術參數包含：
- 檢測距離：5-50mm（根據型號可調）
- 響應頻率：≤1000Hz
- 觸點容量：DC12-24V 200mA
- 機械壽命：≥1000萬次
- 接線方式：直接出線/端子接駁可選
核心優勢體現在三個方面：其一，創新設計的磁敏元件配合專用集成電路，顯著提升信號傳輸穩定性；其二，特殊工藝處理的貴金屬觸點確保接觸電阻長期保持低值狀態；其三，多向安裝卡槽設計支持水平、垂直等多種安裝方式。產品適用于各類液壓氣動裝置、自動化生產線、物料傳送系統等需要精確位置檢測的場合。
應用領域涵蓋：
- 工程機械的油缸位置檢測
- 物流分揀設備的狀態監控
- 汽車制造產線的定位控制
- 食品加工設備的行程檢測
- 智能倉儲系統的動作反饋
通過嚴格的工藝流程控制，該系列產品在溫度沖擊、振動測試、鹽霧試驗等環境模擬測試中表現出優良的可靠性。模塊化結構設計支持快速維護更換，為用戶降低設備維護成本。根據應用場景需求，可提供不同引出線長度、連接器規格及外殼顏色的定制化服務。
English Version：
The CS1-G series magnetic proximity switch is an innovative non-contact position detection device engineered for industrial automation applications. Utilizing advanced electromagnetic induction technology, this product delivers reliable object positioning and status feedback across diverse operating conditions. Its compact design combines installation flexibility with environmental adaptability, meeting the high integration requirements of modern industrial equipment.
Constructed with reinforced engineering plastic housing and dual-sealing technology, the device maintains stable performance within a temperature range of -25℃ to +85℃. The optimized magnetic circuit design achieves industry-leading detection distances while ensuring excellent anti-interference capability. Specially developed protective structure effectively resists dust, oil contamination, and moisture, with robust construction ensuring long-term reliability.
Technical specifications include:
- Detection range: 5-50mm (adjustable by model)
- Response frequency: ≤1000Hz
- Contact capacity: DC12-24V 200mA
- Mechanical durability: ≥10 million operations
- Connection options: Direct cable/PG7 cable gland
Key advantages feature three aspects: Firstly, the innovative magnetic sensing element combined with dedicated IC significantly enhances signal stability. Secondly, specially treated noble metal contacts maintain low contact resistance over extended periods. Thirdly, multidirectional mounting grooves enable flexible installation configurations. Ideal for applications requiring precise position detection in hydraulic/pneumatic systems, automated production lines, and material handling systems.
Application fields include:
- Cylinder position detection in construction machinery
- Status monitoring for logistics sorting equipment
- Positioning control in automotive manufacturing
- Stroke detection for food processing machines
- Motion feedback in intelligent warehousing systems
Through rigorous production process control, the product demonstrates exceptional reliability in environmental simulations including thermal shock, vibration, and salt spray tests. Modular design facilitates quick maintenance and replacement, effectively reducing equipment downtime. Customization services are available for cable lengths, connector types, and housing colors to meet specific application requirements.
