磁性開關YIDA-20 供應
磁性開關YIDA-20產品概述

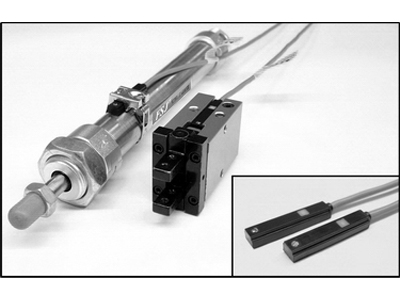

磁性開關YIDA-20是一款用于工業自動化控制的非接觸式傳感裝置，適用于氣缸活塞位置檢測。該產品采用磁感應原理，通過感知磁場變化實現開關信號的輸出，具有結構緊湊、安裝便捷的特點。YIDA-20分為有接點和無接點兩種類型，工作電壓范圍覆蓋5-240V DC/AC，可適配不同電氣環境需求，指示燈設計提供紅色和綠色兩種選擇，便于現場狀態觀察。該產品能夠替代同類磁感應開關，廣泛應用于機械制造、氣動元件等領域。71216
功能特性與技術參數
YIDA-20磁性開關的核心部件采用干簧管技術，當磁性物質接近密封玻璃管時，內部簧片在磁場作用下閉合觸點導通電路。產品最大開關電流為100-200mA，響應速度快，重復定位精度高，適合高速運動機構的檢測。其外殼采用工程塑料或金屬材質，具備防水防塵性能，可在粉塵較多的工業環境中穩定工作。該型號兼容多種氣缸安裝方式，通過夾持式支架可實現快速調試，無需額外配置機械限位裝置。31327
Magnetic Switch YIDA-20 Product Description
The YIDA-20 is a non-contact magnetic proximity switch designed for piston position detection in pneumatic cylinders. Utilizing reed switch technology encapsulated in durable housing, this device operates reliably within 5-240V DC/AC voltage range. Its compact design features visual indicators with dual-color LED (red/green) for immediate status monitoring. The switch activates when ferrous materials approach its sensing zone, making it suitable for automation systems requiring precise position feedback without mechanical contact.720
Technical Features and Applications
This magnetic switch employs hermetically sealed reed contacts that respond to magnetic fields, ensuring long service life exceeding 500,000 operations. With IP-rated protection, it performs consistently in challenging environments containing dust or moisture. The YIDA-20 s universal voltage compatibility and 2-wire/3-wire output options facilitate integration with PLCs and control circuits. Typical applications include packaging machinery, material handling equipment, and production line automation where reliable position sensing is required. Its modular design allows tool-free installation on standard cylinder profiles.152627
安裝與使用說明
安裝YIDA-20磁性開關時需確保磁鐵與感應面保持平行，推薦間隙為1-3mm以獲得最佳靈敏度。布線時請注意極性要求，直流電源需將棕色導線連接正極。產品支持水平或垂直安裝方向，但應避開強磁場干擾源。定期檢查開關固定螺栓的緊固狀態，避免因振動導致位置偏移。該產品適用于-20℃至+80℃環境溫度范圍，特殊工況下可選用耐高溫版本。121327
Installation and Maintenance
For optimal performance, align the switch within specified sensing distance from the actuating magnet (typically 10mm max). The included mounting bracket enables 360° rotational adjustment for flexible positioning. When connecting to DC systems, observe wire color coding: brown to positive terminal, blue to negative. Avoid exposing the unit to direct sunlight or corrosive substances. Periodic functional checks are recommended to maintain operational reliability in continuous duty cycles. The switch requires no lubrication or contact cleaning due to its non-mechanical operation principle.3726
磁性開關
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，F(xiàn)D-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特點 ：
有PP、PVDF材質可適用于強酸堿場所；SUS 304/316金屬材質適用于高溫高壓桶槽。
接線盒規格齊全，有塑料、鋁合金、不銹鋼防爆型，防護等級IP-65以上。
接點容量50W/250VAC SPST或 30W/200VDC SPDT。
接續法蘭有JIS、DIN、ANSI規格；牙口有 NPT、PF、BSP等規格。
有ABS、GL、CR國際船籍認證及Ex防爆認證。
可做多點控制、安裝容易、節省成本。
|
