磁性開關TCS1-D 供應

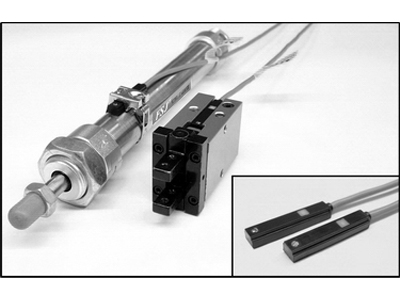

TCS1-D磁性開關產品概述（中文）
TCS1-D磁性開關是一款專為工業自動化控制設計的高性能非接觸式位置檢測裝置，采用磁感應原理實現精準信號觸發。該產品通過內置高靈敏度磁敏元件感知磁場變化，可在無機械接觸條件下穩定輸出電信號，有效避免傳統機械開關的磨損問題。其核心組件采用優質干簧管技術，玻璃封裝結構確保長期使用的可靠性，惰性氣體填充進一步提升了環境適應性。產品支持5-240V寬電壓輸入范圍，最大負載電流100mA，兼容直流和交流供電模式，滿足多樣化電氣配置需求。緊湊型設計（典型尺寸18×34×10mm）使其能靈活安裝在空間受限的場合，特別適用于氣缸行程檢測、閥門狀態反饋及移動部件定位等場景。外殼采用工程塑料與耐腐蝕材料復合工藝，具備-25℃至+85℃的寬溫工作能力，防護等級達IP65，可抵御粉塵、油污及潮濕環境影響。提供導線直連與接插件兩種接線方式，支持NPN/PNP輸出配置，能與主流PLC系統無縫對接。典型應用包括包裝機械、注塑設備、汽車生產線等領域的自動化控制場景，為用戶提供精準可靠的位移檢測解決方案。1924
TCS1-D Magnetic Switch Product Overview (English)
The TCS1-D magnetic switch is a high-performance non-contact position sensing device engineered for industrial automation control systems. Utilizing advanced magnetic induction technology, it achieves precise signal triggering through a hermetically sealed reed switch mechanism filled with inert gas, ensuring long-term operational stability without physical contact. This device features a broad voltage compatibility range of 5-240V AC/DC with maximum load current of 100mA, accommodating diverse electrical configurations. Its compact housing (18×34×10mm typical) incorporates composite engineering plastics with corrosion-resistant properties, maintaining reliable performance across -25℃ to +85℃ environments while achieving IP65 protection against dust, moisture and oil contamination. The switch offers dual output configurations (NPN/PNP) with flexible wiring options including direct cable termination or connector interface, ensuring seamless integration with PLC control systems. Precision-engineered magnetic sensitivity enables consistent detection within 8mm range, making it ideal for pneumatic cylinder stroke monitoring, valve position feedback and moving component alignment in automated production lines. Typical implementations include packaging machinery, injection molding equipment and automotive assembly systems where reliable position detection enhances operational efficiency. The product s robust construction and maintenance-free design significantly reduce downtime in continuous industrial applications.71723
技術特性補充說明（中文）
TCS1-D系列采用優化的磁路設計，確保在強磁場干擾環境下仍能保持穩定檢測性能。特殊處理的觸點材料使電氣壽命達50萬次以上，瞬態響應時間小于2.5ms，適用于高速運動部件的實時監測。產品提供多向指示燈顯示配置，便于現場狀態診斷。安裝方式包含軌道卡扣與螺釘固定兩種選擇，適配不同氣缸槽型。磁體適配方面，可識別各類橡膠磁、永磁鐵氧體及釹鐵硼磁鋼產生的磁場信號。信號輸出采用雙色LED可視化設計，綠色表示電源正常，紅色指示觸發狀態，簡化了設備調試流程。電氣隔離設計有效防止浪涌電壓沖擊，內置過載保護模塊增強系統安全性。導線上印有極性標識，防止安裝過程中的接線錯誤。41321
Additional Technical Features (English)
The TCS1-D series incorporates optimized magnetic circuit design that maintains stable detection capability even in environments with strong electromagnetic interference. Specially treated contact materials deliver over 500,000 switching cycles with rapid transient response under 2.5ms, suitable for high-speed motion monitoring. Multi-directional LED indicators provide instant status diagnostics - green for power-on and red for activation state. Installation flexibility includes both rail-mounted and screw-fixed options compatible with various cylinder groove types. The device demonstrates versatile magnetic compatibility, accurately detecting fields generated by rubber magnets, ferrite permanent magnets and neodymium magnets. Dual-color visual signaling simplifies commissioning, while electrical isolation and built-in overload protection enhance system safety. Polarized wiring with clear cable markings prevents connection errors during installation. These features combine to create a durable, user-friendly solution for industrial positioning applications requiring consistent performance under challenging conditions.111419
磁性開關
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，F(xiàn)D-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特點 ：
有PP、PVDF材質可適用于強酸堿場所；SUS 304/316金屬材質適用于高溫高壓桶槽。
接線盒規格齊全，有塑料、鋁合金、不銹鋼防爆型，防護等級IP-65以上。
接點容量50W/250VAC SPST或 30W/200VDC SPDT。
接續法蘭有JIS、DIN、ANSI規格；牙口有 NPT、PF、BSP等規格。
有ABS、GL、CR國際船籍認證及Ex防爆認證。
可做多點控制、安裝容易、節省成本。
|
