磁性開關DX-20R 廠家
產品概述

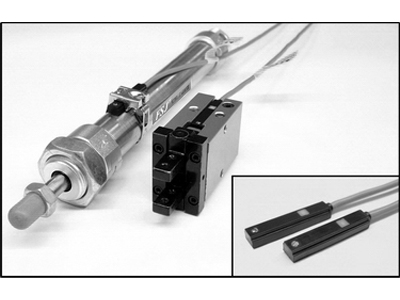

磁性開關DX-20R是一款采用磁感應原理設計的工業自動化控制元件，主要用于檢測氣缸活塞位置或機械運動狀態。該產品通過內置磁簧管結構實現對磁場變化的靈敏響應，當磁性物體接近時自動觸發開關動作，具有反應迅速、穩定性高等特點。其緊湊型設計適用于空間受限的安裝環境，外殼采用耐用的工程塑料材質，能夠抵抗工業環境中常見的酸堿腐蝕和機械沖擊。12
技術特點
DX-20R采用高質量PVDF材質外殼，具備優異的耐化學腐蝕性能，可適應強酸強堿等惡劣工況。產品提供多種接線盒配置選項，包括鋁合金、塑料和不銹鋼等材質，防護等級達到IP65以上。其接點容量為30W/20VDC或50W/250VAC，支持多點控制安裝，有效節省布線成本。獨特的浮球式設計允許在密閉管道內設置多點磁控位，通過磁鐵與磁簧開關的互動實現精準的位置檢測。產品工作距離約10mm，響應速度滿足大多數工業自動化場景需求。316
應用領域
This magnetic switch is widely applied in pneumatic systems for detecting cylinder piston positions. When the magnetic ring on the cylinder approaches, the reed switch inside DX-20R will be activated to generate electrical signals for controlling solenoid valves. Beyond industrial automation, it also serves in security doors, printers, fax machines and other electronic devices requiring position detection. The product s versatile design allows integration with various cylinder types including rodless cylinders and compact pneumatic actuators. Its reliable performance makes it suitable for long-term use in production lines and equipment monitoring systems. 526
產品優勢
The DX-20R series distinguishes itself with easy installation and maintenance-free operation. Its modular structure enables quick replacement without dismantling entire systems. The bright LED indicator provides clear visual status confirmation even in low-light environments. Compared to mechanical limit switches, this contactless solution eliminates physical wear, ensuring over 1 million operation cycles. The product supports both DC and AC power configurations, with color-coded wiring (brown/blue for polarity) simplifying installation procedures. Optional accessories include mounting brackets and protective sleeves for specialized applications. 2227
注意事項
Proper installation requires avoiding strong magnetic interference sources and maintaining minimum 40mm spacing between parallel cylinders. For DC applications, correct polarity connection (brown wire to positive) is essential for indicator function. The switch must always be connected in series with load to prevent damage. When used with inductive loads like relays, parallel protection diodes are recommended to prolong service life. Environmental considerations include avoiding direct exposure to cutting fluids or excessive metal dust accumulation that may affect magnetic sensitivity. 1316
磁性開關
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，F(xiàn)D-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特點 ：
有PP、PVDF材質可適用于強酸堿場所；SUS 304/316金屬材質適用于高溫高壓桶槽。
接線盒規格齊全，有塑料、鋁合金、不銹鋼防爆型，防護等級IP-65以上。
接點容量50W/250VAC SPST或 30W/200VDC SPDT。
接續法蘭有JIS、DIN、ANSI規格；牙口有 NPT、PF、BSP等規格。
有ABS、GL、CR國際船籍認證及Ex防爆認證。
可做多點控制、安裝容易、節省成本。
|
