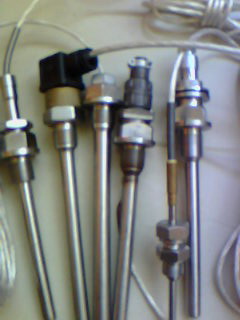

電站測溫用熱電阻WZP2-330B 供應
產品概述
WZP2-330B電站測溫用熱電阻是專為電力工業設計的溫度測量傳感器，采用高品質鉑電阻元件(Pt100)作為感溫核心，適用于電站鍋爐、汽輪機等設備的溫度監測。該產品采用不銹鋼保護管和防水式接線盒設計，能夠穩定測量-200℃至420℃范圍內的液體、氣體介質及固體表面溫度，滿足30萬至60萬千瓦發電機組配套需求。其雙支結構支持兩套顯示或控制系統同步監測同一測點，提升數據可靠性。111326
技術特點
產品采用深盲孔工藝加工的整體式保護管，兼具耐高壓和抗沖擊性能，機械強度達到靜態外壓1.5倍公稱壓力。熱響應時間在保護管直徑16mm時不超過90秒，12mm規格可縮短至45秒。感溫元件通過均勻雙繞工藝確保測量精度，B級精度下允差為±(0.30+0.005|t|)℃。絕緣性能優異，在15-35℃環境溫度下，電極與套管間絕緣電阻≥100MΩ(測試電壓10-100VDC)，符合電站復雜工況要求。61618
結構優勢
WZP2-330B采用活動法蘭安裝方式，配備不銹鋼接線盒和防濺結構，便于在蒸汽管道等高濕度環境中使用。保護管材質可選1Cr18Ni9Ti或0Cr18Ni12Mo2Ti不銹鋼，適應不同腐蝕環境。產品采用模塊化設計，測溫元件與保護管可分離，無需停機即可快速更換元件，顯著降低維護成本。標準總長規格涵蓋300-1150mm，插入深度可根據保溫層厚度定制，適配多種安裝場景。51721
應用領域
本產品廣泛應用于火力發電廠鍋爐溫度監測、汽輪機軸承溫度檢測、蒸汽管網溫度控制等場景，特別適用于存在振動、高壓或腐蝕性介質的工業環境。其穩定性和抗震性能使其成為替代進口測溫儀表的優選方案，在石化、冶金等高溫高壓領域也有成熟應用案例。21422
Product Overview
The WZP2-330B thermal resistor for power plant temperature measurement is specifically engineered for monitoring critical equipment such as boilers and steam turbines. Featuring dual Pt100 sensing elements housed in stainless steel protective tubes, it delivers reliable temperature data within -200°C to 420°C range. The waterproof junction box and flange mounting design ensure stable operation in high-humidity environments, making it suitable for 300MW-600MW generating units. Its dual-channel configuration allows simultaneous connection to multiple control systems. 1126
Technical Features
Manufactured with deep-blind-hole technology, the integrated protection tube exhibits exceptional pressure resistance (1.5x nominal pressure) and impact tolerance. The thermal response time is optimized to 90 seconds (16mm diameter) or 45 seconds (12mm version). Precision-wound sensing elements achieve B-grade accuracy of ±(0.30+0.005|t|)°C. Superior insulation maintains ≥100MΩ resistance between electrodes and sheath under 10-100VDC test voltage, ensuring performance in harsh plant conditions. 613
Structural Advantages
The removable flange design facilitates easy installation on steam pipelines, while the splash-proof junction box protects internal components. Available in 1Cr18Ni9Ti or 0Cr18Ni12Mo2Ti stainless steel, the protection tube resists various corrosive media. The separable sensing assembly enables quick maintenance without system shutdown, significantly reducing operational downtime. Customizable insertion depths (standard lengths 300-1150mm) accommodate diverse installation requirements. 521
Applications
This thermal resistor is widely implemented in coal-fired plants for boiler wall temperature monitoring, turbine bearing protection, and steam header measurement. Its vibration-resistant construction and high-pressure endurance make it ideal for petrochemical reactors, metallurgical furnaces, and other demanding industrial processes where reliable temperature data is crucial for operational safety and efficiency. 214
電站測溫用熱電阻
WZC-130B，WZP-220B，WZP-221B，WZP-230B，WZP-231B，WZP2-220B，WZP2-221B，WZP2-230B，WZP2-231B，WZP-220AB，WZP2-220AB。WZC-220B，WZC-230B，WZC-220AB，WZP-320B，WZP-321B，WZP-330B，WZP-331B，WZP2-320B，WZP2-321B，WZP2-330B，WZP2-330B，WZC-320B，WZC-320B，WZP-420B，WZP-421B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZC-420B，WZC-430B，WZP-420B，WZP-421B，WZP-430B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZP-420B，WZC-430B，WZP-621B，WZP-621AB，WZP-631B，WZP2 -621B，WZP2 -621B，WZP2 -631B，WZP-621B，WZP-631B，WZP-621B，WZP2 -631B，WZP-621AB，WZP2-621AB，WZP-002，WZP-003，WZP-003A，WZCM-201，WZPM-201，WZPM-201，WZP-270S，WZP-26S，WZP-236SB，
量程規格
名 稱 分度號 測溫范圍 ℃ 精度等級 允 差Δt
鎳鉻－鎳硅熱電偶 K 0～800 2 ±2.5℃或 ±0.75％t
鎳鉻－銅鎳熱電偶 E 0～600 2 ±2.5℃或 ±0.75％t
鉑熱電阻 Pt100 -200～500 B ±（0.3＋0.005|t|）
注：t為感溫元件實測溫度或?qū)崪y溫度的值。
□公稱壓力
一般是指在常溫下，保護管所能承受的靜態外壓而不破裂，試驗壓力一般采用公稱壓力的1.5倍。實際上，允許工作壓力不僅與保護管材料、直徑、壁厚有關，而且還與其結構形式、安裝方法、置入深度以及被測介質的流速、種類有關。
□熱電偶絕緣電阻
常溫絕緣電阻的試驗電壓為直流500Ｖ。測量常溫絕緣電阻的大氣條件為：溫度15～35℃，相對濕度45％RH，大氣壓力86～106kPa。
對于長度超過1米的熱電偶，它的常溫絕緣電阻值與其長度的乘積應不小于100MΩ•m，
即：Rr•L＞100MΩ•mL＞1m
式中：Rr-熱電偶的常溫絕緣電阻值，MΩ；
L－熱電偶的長度，m。
對于長度等于或不足1米的熱電偶，它的常溫絕緣電阻值應不小于100MΩ。
□熱電阻絕緣電阻
常溫絕緣電阻的試驗電壓可取直流10～100Ｖ任意值，環境溫度應在15～35℃范圍內，相對濕度應不大于80％RH，常溫絕緣電阻值應不小于100MΩ。
□熱電阻允許通過電流
通過鉑電阻的測量電流大不超過5mＡ。
|
