隔爆鉑電阻WZPK2526SA 價格

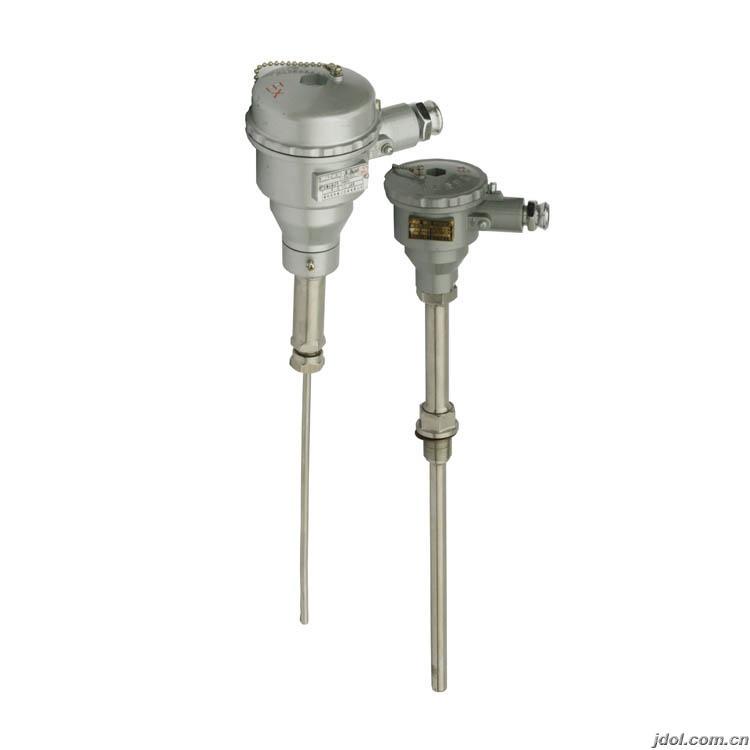

隔爆鉑電阻 WZPK2526SA 產品介紹
中文介紹
隔爆鉑電阻 WZPK2526SA 是一款專為工業環境設計的高性能溫度傳感器。該產品采用先進的隔爆技術，能夠在具有潛在爆炸性氣體的環境中安全使用。其測溫范圍為 -200℃ 至 500℃，能夠滿足多種工業場景的溫度測量需求。
該產品使用高質量的鉑電阻作為感溫元件，具有良好的線性輸出和高精度測量性能。其保護管采用 1Cr18Ni9Ti 不銹鋼材質，具有優異的耐腐蝕性和機械強度。此外，WZPK2526SA 的接線盒采用特殊的隔爆結構設計，能夠有效防止內部火花外泄，確保設備在危險環境中的安全運行。
WZPK2526SA 的安裝方式靈活多樣，支持固定螺紋和固定法蘭等多種安裝形式。這使得用戶可以根據實際工況選擇最適合的安裝方式，提高設備的穩定性和可靠性。其熱響應時間短，能夠快速準確地反映被測介質的溫度變化。
English Introduction
The WZPK2526SA Explosion-Proof Platinum Resistance Thermometer is a high-performance temperature sensor designed for industrial environments. This product uses advanced explosion-proof technology and is safe for use in environments with potentially explosive gases. It has a temperature measurement range of -200℃ to 500℃, which can meet the temperature measurement needs of various industrial applications.
The product uses high-quality platinum resistance as the temperature-sensing element, offering good linear output and high-precision measurement performance. The protection tube is made of 1Cr18Ni9Ti stainless steel, which provides excellent corrosion resistance and mechanical strength. In addition, the junction box of the WZPK2526SA is specially designed with an explosion-proof structure that can effectively prevent the escape of internal sparks, ensuring the safe operation of the equipment in hazardous environments.
The WZPK2526SA offers flexible installation options, including fixed threads and fixed flanges. This allows users to choose the most suitable installation method based on actual working conditions, enhancing the stability and reliability of the equipment. It also has a short thermal response time, enabling it to quickly and accurately reflect the temperature changes of the measured medium.
隔爆鉑電阻
WZPK-524S，WZPK-525S，WZPK-526S，WZPK2-525SA，WZPK2526SA，WZPK-133S，WZPK-134S，WZPK-135S，WZPK-136S，WZPK2-135SA，WZPK2-136SA，WZPK-233S，WZPK-234S，WZPK-235S，WZPK-236S，WZPK2-235SA，WZPK2-236SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-336S，WZPK2-335SA，WZPK2336SA，WZPK-433S，WZPK-434S，WZPK-435S，WZPK-436S，WZPK2-435SA，WZPK2436SA，WZPK-533S，WZPK-534S，WZPK-535S，WZPK-536S，WZPK2-535SA，WZPK2536SA，WZPK-163S，WZPK-164S，WZPK-165S，WZPK-166S，
應用
工業用隔爆鉑電阻是一種溫度傳感器。在工業自控系統中應用極廣，通過溫度傳感器，可將 控制對象的溫度參數變成電信號,傳遞給顯示、記錄和調節儀表,對系統實行檢測、調節和控制。在化工廠、生產現場常伴有各種易燃、易爆等化學氣體、 蒸氣，如果使用普通的鉑電阻非常不安全，極易引起環境氣體爆炸。因此，在這些場合必須使用隔爆熱電偶作溫度傳感器，本廠生 產的隔爆鉑電阻產品適用在d II BT4~d II CT6 溫度組別區間內具有爆炸性氣體危險的場所內。本廠生產的隔爆熱電偶采用引進元件作感溫元件，其技術性能符合 ZBY301-85工業鉑電技術 條件和分度表。同時產品符合爆炸性環境用防爆電氣設備通用要求 GB3836.1-83 、 GB3836.2-83 標準。
|
