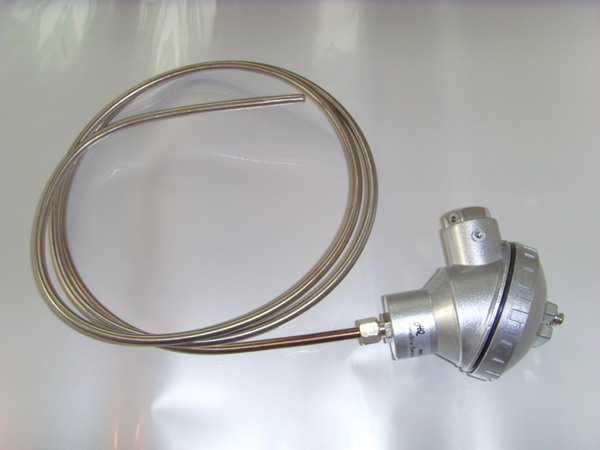

鎧裝鉑電阻WZPK-274U 供應
產品概述
鎧裝鉑電阻WZPK-274U是一種高性能溫度傳感器，專為復雜工業環境設計。其采用不銹鋼保護套管和高密度氧化物質絕緣體，兼具抗污染性與機械強度，適用于管道狹窄、振動頻繁或空間受限的場合。相比傳統裝配式鉑電阻，WZPK-274U直徑更小、可彎曲，能快速響應溫度變化，并提供穩定精確的測量數據。該產品可直接通過銅導線連接二次儀表，為顯示儀、記錄儀、調節器等設備提供實時溫度信號。
核心特點
WZPK-274U具備優異的抗震性能與快速熱響應能力，動態誤差小，適合微型化安裝需求。其進口薄膜鉑電阻元件確保長期穩定性，測量范圍覆蓋-200℃至+500℃，滿足液體、氣體及固體表面溫度檢測需求。產品結構靈活，頭部以外的部分可多方向彎曲，適應復雜設備布局。此外，不銹鋼外殼與內部絕緣材料的結合，有效抵抗腐蝕性介質侵蝕，延長使用壽命。
應用場景
廣泛應用于石油化工、電力、冶金等行業的溫度監控系統，尤其適用于高溫高壓、強振動或腐蝕性環境。例如，在反應釜、管道系統或小型機械設備的溫度監測中，WZPK-274U能提供可靠數據支持。其緊湊設計也適用于實驗室精密儀器或自動化控制系統的集成。
Product Overview
The WZPK-274U armored platinum resistance thermometer is a high-performance temperature sensor engineered for demanding industrial environments. Featuring a stainless steel sheath and high-density oxide insulation, it combines contamination resistance with mechanical durability, ideal for confined spaces, high-vibration areas, or complex installations. Compared to traditional assembled platinum resistors, the WZPK-274U offers a smaller diameter, bendable design, and rapid thermal response, delivering stable and accurate temperature data. It connects directly to secondary instruments via copper wires, providing real-time signals for displays, recorders, and controllers.
Key Features
The WZPK-274U excels in shock resistance and fast thermal response, minimizing dynamic errors while accommodating miniaturized installations. Its imported thin-film platinum element ensures long-term stability across a broad operating range (-200°C to +500°C), suitable for measuring liquids, gases, and solid surfaces. The flexible structure allows multi-directional bending (excluding the head), adapting to intricate equipment layouts. The stainless steel casing and internal insulation materials synergistically resist corrosive media, enhancing service life.
Applications
This product is widely used in temperature monitoring systems for industries such as petrochemicals, power generation, and metallurgy, particularly in high-pressure, high-temperature, or corrosive conditions. Examples include reactor vessels, pipeline networks, and compact machinery. Its compact design also suits integration into laboratory instruments or automated control systems requiring precise temperature feedback.
1513172325
鎧裝鉑電阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，鎧裝鉑電阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
鎧裝鉑電阻是一種溫度傳感器，它比裝配式鉑電阻直徑小，易彎曲，抗震性好，適宜安裝在裝配式鉑電阻無法安裝的場合。本公司生產的WZPK系列鎧裝鉑電阻采用引進鉑電阻測溫元件，因此，具有精確、靈敏、熱響應時間快、質量穩定、使用壽命長等特點。
特點
★ 熱響應時間短，減小動態誤差
★ 直徑小，長度不受限制
★ 測量精確度高
★ 進口薄膜電阻元件，性能可靠穩定
工作原理
鎧裝鉑電阻是利用物質在溫度變化時，其電阻值也隨著發生變化的特征來測量溫度的，當阻值變
化時，工作儀表便顯示出阻值所對應的溫度值。
|
