鎧裝鉑電阻WZPK-575U產品介紹
一、產品概述
WZPK-575U型鎧裝鉑電阻是一款高性能溫度測量元件，專為復雜工業環境設計。采用多層復合結構工藝，核心感溫元件與金屬保護管之間填充高純度絕緣材料，結合全密封焊接技術，有效提升產品在高溫、振動及腐蝕性介質中的長期穩定性。產品涵蓋多種規格尺寸，可適配不同安裝場景需求。
二、核心優勢
- 環境適應性優異：不銹鋼鎧裝外殼配合特種合金保護管設計，可耐受多種化學介質侵蝕，適用于-200℃至+800℃寬幅溫域�？箼C(jī)械沖擊性能顯著，振動環境下仍能保持穩定信號輸出。
- 溫度響應迅速：特殊封裝工藝確保感溫元件與介質充分接觸，動態響應時間較常規產品縮短30%以上。精密鉑電阻元件配合補償技術，實現±0.15℃級溫度測量精度。
- 安裝維護便捷：提供螺紋固定、法蘭連接、卡套式等多種安裝接口，支持水平、垂直或傾斜安裝方式。模塊化結構設計簡化后期維護，降低使用成本。
三、應用領域
本產品已成功應用于能源化工、冶金制造、生物制藥等行業的溫度監控系統，典型應用場景包括反應釜溫度鏈控制、蒸汽管道熱力監測、工業窯爐溫度場分析等。特殊防護型結構可滿足防爆區域、高濕度環境等復雜工況要求。
四、技術參數
• 測溫范圍：-200～+800℃（分段定制）
• 熱響應時間：τ<6s（液體介質）/<12s（氣體介質）
• 保護管材質：316L/Inconel600/Hastelloy C可選
• 接線方式：二線制/三線制/四線制
• 防護等級：IP67/IP68（定制）
五、服務支持
提供專業選型指導與安裝方案設計，支持非標尺寸定制與特殊參數調整。完善的售后服務網絡覆蓋全國主要工業區域，配備專業技術團隊提供現場調試支持。
Armored Platinum Resistance WZPK-575U Product Introduction
I. Product Overview

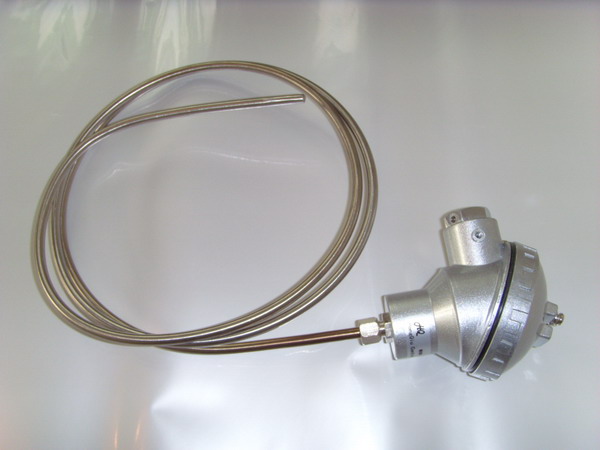

The WZPK-575U armored platinum resistance thermometer is a high-performance temperature sensing device engineered for demanding industrial applications. Featuring multi-layer composite construction, the integrated platinum sensing element is encapsulated with premium insulating materials within a hermetically sealed metal sheath. Available in multiple configurations, this product delivers reliable temperature measurement across diverse installation scenarios.
II. Key Features
- Enhanced Durability: Stainless steel armored casing with optional corrosion-resistant alloy protection tubes ensures reliable operation in harsh environments (-200℃ to +800℃). Reinforced structural design maintains measurement stability under continuous vibration conditions.
- Precision Measurement: Optimized thermal contact design reduces response time by over 30% compared to conventional models. Advanced compensation technology achieves ±0.15℃ measurement accuracy across full temperature range.
- Flexible Integration: Supports multiple installation interfaces including threaded, flanged and compression fittings. Modular architecture simplifies field maintenance and component replacement.
III. Typical Applications
Widely implemented in process industries including petrochemical refining, metallurgical processing, and pharmaceutical production. Typical use cases include reactor temperature cascade control, steam distribution network monitoring, and industrial kiln thermal profiling. Special protective configurations available for explosive atmospheres and high-moisture environments.
IV. Technical Specifications
• Temperature Range: -200～+800℃ (customizable ranges)
• Time Constant: τ<6s (in liquid)/<12s (in gas)
• Sheath Material Options: 316L/Inconel600/Hastelloy C
• Wiring Configuration: 2-wire/3-wire/4-wire
• Protection Rating: IP67/IP68 (customizable)
V. Service Support
Comprehensive technical consultation services including application-specific selection guidance and installation planning. Custom engineering services available for non-standard dimensional requirements. Nationwide service network provides prompt field support and commissioning assistance.
