鎧裝鉑電阻WZPK2-336SA 廠家
中文介紹

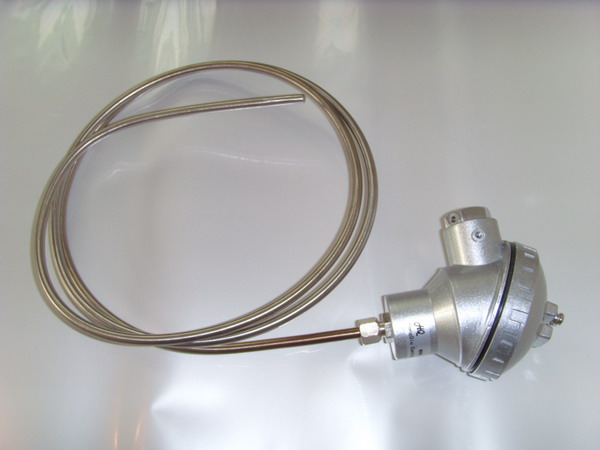

WZPK2-336SA鎧裝鉑電阻是一種高性能的溫度傳感器，廣泛應用于工業自動化和過程控制領域。它采用先進的鉑電阻測溫元件，具有精確、靈敏、熱響應時間快、質量穩定、使用壽命長等優點。該產品的外保護套采用不銹鋼材質，內填充高密度氧化鎂絕緣體，使其具有很強的抗污染性能和優良的機械強度，能夠適應惡劣的工作環境。
WZPK2-336SA鎧裝鉑電阻可用于測量-200℃至500℃范圍內的溫度，能夠直接與銅導線和二次儀表連接，為顯示儀、記錄儀、調節器、掃描器、數據記錄儀以及電腦提供精確的溫度變化輸入信號。其直徑小、易彎曲、抗震性好，特別適合安裝在裝配式鉑電阻無法安裝的場合。此外，該產品還具備防水式接線盒，進一步提升了其在復雜環境中的可靠性。
English Introduction
The WZPK2-336SA armored platinum resistance thermometer is a high-performance temperature sensor widely used in industrial automation and process control. It features precise, sensitive, fast thermal response, stable quality, and long service life, thanks to the advanced platinum resistance temperature sensing elements. The thermometer is equipped with a stainless steel outer protective sheath and filled with high-density magnesium oxide insulating material, which provides strong resistance to contamination and excellent mechanical strength, making it suitable for harsh working environments.
The WZPK2-336SA armored platinum resistance thermometer can measure temperatures ranging from -200°C to 500°C. It can be directly connected to copper wires and secondary instruments, providing accurate temperature change input signals for displays, recorders, regulators, scanners, data recorders, and computers. With its small diameter, flexibility, and good抗震性，it is particularly suitable for installation in locations where traditional platinum resistance thermometers cannot be used. Additionally, the thermometer features a waterproof junction box, further enhancing its reliability in complex environments.
鎧裝鉑電阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，鎧裝鉑電阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
鎧裝鉑電阻是一種溫度傳感器，它比裝配式鉑電阻直徑小，易彎曲，抗震性好，適宜安裝在裝配式鉑電阻無法安裝的場合。本公司生產的WZPK系列鎧裝鉑電阻采用引進鉑電阻測溫元件，因此，具有精確、靈敏、熱響應時間快、質量穩定、使用壽命長等特點。
特點
★ 熱響應時間短，減小動態誤差
★ 直徑小，長度不受限制
★ 測量精確度高
★ 進口薄膜電阻元件，性能可靠穩定
工作原理
鎧裝鉑電阻是利用物質在溫度變化時，其電阻值也隨著發生變化的特征來測量溫度的，當阻值變
化時，工作儀表便顯示出阻值所對應的溫度值。
|
