鎧裝鉑電阻WZPK-525S 供應
產品概述
鎧裝鉑電阻WZPK-525S是一種高性能溫度傳感器，專為復雜安裝環境和精準測溫需求設計。相比傳統裝配式鉑電阻，其直徑更小，具備優異的彎曲性能與抗震性，適合管道狹窄、空間受限或需快速響應的應用場景。核心采用進口鉑電阻測溫元件，確保測量精度高、反應靈敏、穩定性強且使用壽命長。不銹鋼外保護套管結合高密度氧化絕緣材料，賦予產品卓越的抗污染能力與機械強度，適用于化工、石油、環保等惡劣工況。測溫范圍覆蓋-200℃至500℃，可直接通過銅導線連接二次儀表，為工業自動化系統提供可靠溫度數據支持。1216
核心優勢
WZPK-525S的熱響應時間短，有效減少動態誤差，直徑小且長度靈活可定制。其結構設計支持多方向彎曲，適配復雜設備布局；不銹鋼材質兼顧耐腐蝕與抗沖擊特性，適合振動環境長期使用。產品通過優化內部絕緣填充工藝，進一步提升了高溫下的穩定性，適合連續監測場景。此外，單支或雙支配置可選，滿足不同信號傳輸需求，三線制引線設計可降低線路干擾。3521
應用領域
該產品廣泛應用于能源、食品加工、制藥等行業，適用于液體、氣體及固體表面溫度測量。例如，在反應釜溫度監控、 HVAC系統或微型設備測溫中表現突出。其兼容性強的電輸出特性可與記錄儀、PLC、DCS等控制系統無縫對接，為流程優化與數據追溯提供基礎支持。安裝方式靈活，提供卡套法蘭、螺紋固定等多種選項，適配不同接口標準。7922
Product Overview
The WZPK-525S armored platinum resistance thermometer is a precision temperature sensor designed for challenging installations and accurate measurements. With a compact diameter and superior flexibility, it outperforms traditional assembly-type sensors in confined spaces or high-vibration environments. The sensor utilizes imported platinum sensing elements to deliver fast response, exceptional stability, and long-term reliability. Its stainless steel sheath, filled with high-density oxide insulation, ensures robust resistance to contamination and mechanical stress, making it ideal for harsh industrial conditions such as chemical processing or oil refineries. The operational range spans -200°C to 500°C, supporting direct connectivity to readout devices via copper wires.11417
Key Features
This model excels with minimal thermal inertia, reducing measurement lag, while its bendable design adapts to complex equipment layouts. The corrosion-resistant construction withstands aggressive media, and optional single/dual sensing elements cater to diverse signal transmission needs. Engineered for durability, it maintains consistent performance under continuous operation, with modular installation options (e.g., flange or threaded fittings) simplifying integration. The three-wire configuration further enhances signal accuracy in electrically noisy environments.3620
Applications
Ideal for energy systems, food production lines, and pharmaceutical monitoring, the WZPK-525S accurately measures temperatures in pipelines, reactors, and compact machinery. Its compatibility with SCADA systems and data loggers facilitates real-time process control. Customizable probe lengths and termination styles (e.g., waterproof junction boxes) address site-specific requirements, ensuring versatility across industries from wastewater treatment to precision manufacturing.81219
鎧裝鉑電阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，鎧裝鉑電阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述

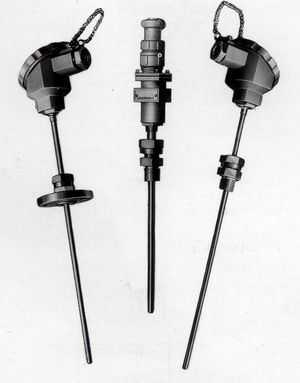

鎧裝鉑電阻是一種溫度傳感器，它比裝配式鉑電阻直徑小，易彎曲，抗震性好，適宜安裝在裝配式鉑電阻無法安裝的場合。本公司生產的WZPK系列鎧裝鉑電阻采用引進鉑電阻測溫元件，因此，具有精確、靈敏、熱響應時間快、質量穩定、使用壽命長等特點。
特點
★ 熱響應時間短，減小動態誤差
★ 直徑小，長度不受限制
★ 測量精確度高
★ 進口薄膜電阻元件，性能可靠穩定
工作原理
鎧裝鉑電阻是利用物質在溫度變化時，其電阻值也隨著發生變化的特征來測量溫度的，當阻值變
化時，工作儀表便顯示出阻值所對應的溫度值。
|
