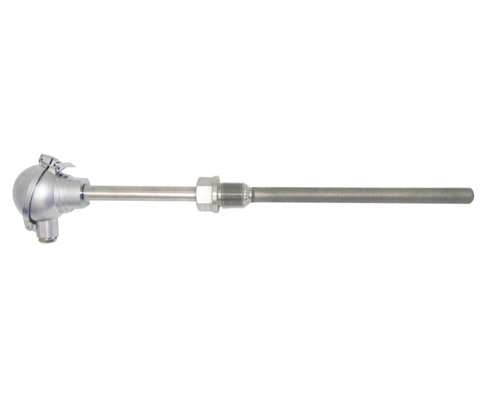

耐腐型、耐磨型熱電阻WZP-231 廠家
產品概述
耐腐型、耐磨型熱電阻WZP-231是一款專為工業嚴苛環境設計的溫度傳感器，適用于化工廠、冶煉廠、火電廠等具有強腐蝕或高磨損特性的工況。該產品通過特殊材料與結構優化，有效解決了普通熱電阻在惡劣環境下易損壞的問題，能夠長期穩定地測量介質溫度。123
產品特點
WZP-231采用耐腐型涂層技術，具有良好的化學穩定性，能夠抵抗絕大多數化學介質的侵蝕，包括酸、堿及有機溶劑，但對熔融金屬鋰、鉀、鈉及高流速液氟等極端介質需避免接觸。其耐磨型涂層硬度達到HRC58-62，可承受0-600℃范圍內的高溫磨損，部分型號可擴展至0-1000℃。產品結構設計兼顧耐壓與密封性，但需注意耐腐結構的螺紋部分不適用于高壓環境。456
應用場景
該產品廣泛應用于化工流程控制、冶金高溫爐監測、電力鍋爐溫度檢測等領域，特別適用于循環流化床鍋爐、水泥窯尾等高磨損場景。在石油、環保等行業中，其鈦合金保護管版本可耐受海水、氯化物及氧化性酸腐蝕，為長期穩定運行提供保障。789
技術參數
WZP-231采用鉑電阻元件(Pt100)，測溫范圍覆蓋-200℃至800℃，部分型號可達1000℃。保護管直徑通常為12mm或16mm，支持螺紋或法蘭安裝。產品響應時間根據插入深度不同可優化至24秒（淺插式）或90秒（深插式），電氣接口提供M20×1.5或NPT1/2等多種選項。101112
Introduction to WZP-231 Corrosion & Wear-Resistant RTD
The WZP-231 is an industrial-grade temperature sensor engineered for harsh environments featuring chemical corrosion or mechanical abrasion. Its specialized coating and structural design ensure reliable performance in chemical plants, smelters, and power stations where standard RTDs would rapidly degrade. The sensor maintains stable measurements through advanced material selection and protective mechanisms.131415
Key Features
This RTD utilizes dual protective technologies: The corrosion-resistant coating exhibits exceptional chemical inertness against most acids, alkalis and organic solvents (excluding molten alkali metals and high-velocity fluorine). The wear-resistant surface with hardness up to HRC58-62 withstands continuous abrasion at 0-600°C, with optional high-temperature versions reaching 1000°C. The pressure-resistant body design incorporates sealed connections, though threaded corrosion-proof joints have pressure limitations.161718
Typical Applications
Ideal for process control in aggressive media, the WZP-231 excels in CFB boilers, cement kiln exhaust systems, and metallurgical furnaces. The titanium-alloy variant demonstrates particular effectiveness in marine applications and chlorinated compound handling, providing extended service life in oxidizing acid environments. Its versatility covers petrochemical, environmental monitoring, and heavy industrial sectors.192021
Specifications
Equipped with platinum sensing elements (Pt100), the WZP-231 measures from -200°C to 800°C (extendable to 1000°C). Standard protection tube diameters include 12mm and 16mm with threaded/flange mounting options. Response time ranges from 24s (shallow insertion) to 90s (deep immersion), with multiple electrical connection types including M20×1.5 and NPT1/2 available for flexible installation.222324
