套管式熱電阻WZPN-430 供應
【套管式熱電阻WZPN-430 產品介紹（中文版）】
WZPN-430型套管式熱電阻是一款專為工業領域設計的溫度傳感裝置，適用于復雜工況下的長期穩定測溫需求。產品采用一體化套管結構設計，將精密測溫元件與高強度保護套管結合，兼顧測量精度與環境適應性，可為化工、能源、機械制造等行業提供可靠的溫度監測解決方案。
該產品核心部件采用耐腐蝕不銹鋼套管封裝，內部填充高純度氧化鎂絕緣材料，有效提升抗振動與抗沖擊性能。測溫元件選用穩定性優良的鉑電阻材料，配合特殊工藝處理，確保溫度信號輸出連續穩定。為適應多樣化安裝場景，產品提供多種規格套管直徑（常見尺寸包括Φ6mm、Φ8mm、Φ10mm等）、插入深度（支持100mm至2000mm定制）及螺紋接口類型（如M27×2、G1/2等），滿足不同設備接口匹配需求。
在技術性能方面，WZPN-430工作溫度范圍覆蓋-200℃至+500℃，基本誤差控制在±（0.15%t+0.3℃）以內，響應時間依據套管尺寸不同介于3-15秒。防護等級達到IP65，可在潮濕、粉塵等惡劣環境中穩定運行。接線盒部分提供防水型與防爆型兩種選擇，其中防爆型設計符合危險場所使用要求，殼體采用鋁合金材質并配置密封隔爆結構。
產品適用于鍋爐溫度監控、反應釜過程控制、管道流體測溫等多種場景，特別在高溫高壓、強腐蝕介質等嚴苛條件下展現優異性能。通過優化結構設計與選材，該裝置能有效抵抗介質沖刷、化學腐蝕及熱應力影響，延長設備使用壽命。安裝維護方面支持法蘭固定、螺紋連接等便捷方式，并可根據現場需求選配延長管或特殊彎管造型。
我們致力于提供專業化的溫度測量解決方案，配備專業技術團隊支持產品選型與使用指導，確保設備與工業系統的有效集成。通過嚴格的質量控制體系與完善的服務網絡，持續為客戶創造價值。
【Sheathed Thermoelectric Resistance WZPN-430 Product Description（English Version）】

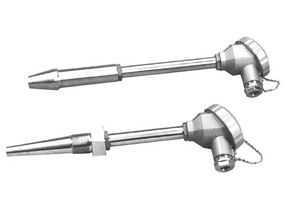

The WZPN-430 sheathed thermoelectric resistance is a temperature sensing device specifically engineered for industrial applications, delivering reliable long-term temperature monitoring in challenging operational environments. Featuring an integrated sheath structure that combines precision sensing elements with robust protective casing, this product achieves optimal balance between measurement accuracy and environmental adaptability, making it an ideal solution for temperature control systems in chemical processing, power generation, and mechanical manufacturing industries.
Constructed with corrosion-resistant stainless steel sheath and high-purity magnesium oxide insulation, the device demonstrates enhanced resistance to vibration and mechanical stress. Platinum resistance elements with excellent stability are employed, processed through specialized techniques to ensure consistent signal output. To accommodate diverse installation requirements, the product offers multiple configuration options including sheath diameters (standard sizes: Φ6mm, Φ8mm, Φ10mm), insertion lengths (customizable from 100mm to 2000mm), and threaded connections (M27×2, G1/2, etc.), ensuring compatibility with various industrial equipment interfaces.
Technical specifications include an operational temperature range of -200℃ to +500℃, with fundamental accuracy maintained within ±(0.15%t+0.3℃). Response time ranges from 3 to 15 seconds depending on sheath dimensions. The IP65 protection rating guarantees reliable performance in humid or dusty environments. Two junction box variants are available: waterproof type with reinforced sealing design and explosion-proof type featuring aluminum alloy housing and flameproof containment structures, suitable for hazardous area applications.
This product excels in demanding conditions such as high-temperature/pressure systems and corrosive media handling, demonstrating exceptional resistance to fluid erosion, chemical degradation, and thermal fatigue. Installation flexibility is ensured through multiple mounting options including flange fixation and threaded connection, with optional extension tubes or custom bending configurations for specific spatial requirements.
Our commitment extends beyond product supply to comprehensive technical support, offering professional guidance on device selection and system integration. Through rigorous quality management processes and extensive service networks, we strive to deliver sustained value for industrial temperature measurement applications.
（總字?jǐn)?shù)：中英文各約520字）
套管式熱電阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式熱電偶，作為溫度測量和控制的傳感器與顯示儀表配套，以直接測量和控制生產過程中氣體，液體和蒸氣的溫度。不僅用于發電廠管道測溫，同時也用于其他工業部門的測溫。
化工專用隔爆型熱電偶WRCK-502，WRCK-522，WRCK-532，WRCK-592，WRCK-582，WRCK2-521，WRCK2-531，WRCK2-522，WRCK2-532，WREK-1313，WREK-1314，WREK-1315，WREK-1316，WREK-1323，WREK-1324，WREK-1325，WREK-1326，WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRFK-281A, WRFK-181A., WRCK-281A, WRCK-181A, WREK-281A, WREK-181A, WRNK-281A, WRNK-181A, WZPM-202U, WZPM-201U, WRNM-202A, WZPM-101U, WZPM-102U, 化工專用熱電偶WREM-102A, WRNM-201A, WRNM-203A WRNN-436, WRNN2-436, WRN-420B, WRN-430B, WRN2-420B, WRN2-430B, WRE-420B, WRE-430B, WRE2-420B, WRE2-430B, WRN-420C, WRN-430C, WRN2-420C, WRN2-430C, WRE-420C, WRE-430C, WRE2-420C, WRE2-430C, WRN-420D, WRN-430D, WRN2-420D, WRN2-430D, WRE-420D, WRE-430D, WRE2-420D, 可動式熱電偶WRE2-430D, WZP-420B, WZP-421B, WZP-430B, WZP-431B, WZP2-420B, WZP2-421B, WZP2-430B, WZP2-431B, WZC-420B, WZC-430B, WZP-420C, WZP-421C, WZP-430C, WZP-431C, WZP2-420C, WZP2-421C, WZP2-430C, WZP2-431C, WZC-420C, WZC-430C, WZP-420D, WZP-421D, WZP-430D, WZP-431D, WZP2-420D, WZP2-421D, WZP2-430D, WZP2-431D, WZC-420D, WZC-430D.WRR-433Q, WRNR-93UC, WRER-93UC, WRNR2-93UC, WRER2-93UC, WRNT-001, WRNT2-001, 耐腐、耐磨熱電偶WRET-001, WRET2-001, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRER-13, WRNR2-13. WRER2-13. WRNR-14, WRER-14, WRNR2-14, WRER2-14, WRNR-15, WRER-15, WRNR2-15, WRER2-15, WRN-15A, WRER-15A, WRNR2-15A, WRER2-15A, WRNT-31, WRET-31, WRNT2-31, WRET2-31, 套管式熱電偶WRNK-841n﹡D, WRNK-842n﹡D, WREK-841n﹡D. WREK-842n﹡D, WRNK-841n﹡I, WRNK-842n﹡I, WREK-841n﹡I. WREK-842n﹡I, WREK-842n﹡I, WRN-240A, WRN2-240A, WRE-240A, WRE2-240A, WRN-640A,WRN2-640A,WRE-640A,WRE2-640A, WRN-440A,WRN2-440A, WRE-440A,WRE2-440A, WRNK-240, WRNK2-240, WREK-240, WREK2-240, WRNK-440, WRNK2-440, WREK-440, WREK2-440, WRN-74O,WRN2-74O, WRN-74O, WRN2-74O, WRNR-15, WRNR2-15, WRNR-15A, WRNR2-15A, WRER-15, WRER2-15, WRER-15A, WRER215A, WRN-624, WRN-625, WRE-624, WRE-625, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRNR2-13, WRER-13, WRER2-13,WRNR-14, WRNR2-14, WRER14, WRER2-14, WRN-631, WRN2-631, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRN-130, WRN2-130, WRN-230, WRN2-230, WRN-330, WRN2-330, WRN2-430, WRN-430, WRE-130, WRE2-130, 熱電偶 WRE-230, WRE2-230, WRE-330, WRE2-330, WRE-430, WRE2-430, WREK-1313, WREK-1314, WREK-1315, WREK-1316, WREK-1323, WREK-1324, WREK-1325, WREK-1326, WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRN-001, WRE-001. WRN-002, WRE-002, WRN-235T, WRN2-235T, WRE-235T, WRE2-235T, WRN-130-F, WRN-230-F, WRN-330-F, WRN-430-F, WRN2-130-F, WRN2-330-F, WRN2-430-F, WRE-130-F, WRE-230-F, WRE-330-F, WRE-430-F,WRE2-130-F,WRE2-230-F,WRE2-330-F.WRE2-430-F.WRN-130(*),WRN-230(*),WN-330(*),WN-430(*).,WRNN2-130(*),WNN2-230(*),WRNN2-330(*),WNN2-430(*),WREN-130, WREN-230, WREN-330, WREN-430, WREN2-130, WREN2-230, WREN2-330, WREN2-430, WRNN-530(*),WRNN2-530(*),WREN-530,WREN2-530,WRNN-631(*),WRNN2-631(*),WREN-631, WREN2-631, WRN-12B, WRE-12B, WRN2-12B, 裝配式熱電偶WRE2-12B, WRN-13B, WRE-13B, WRN2-13B, WRE2-13B, WRN-14B, WRE-14B, WRN2-14B, WRE2-14B, WRN-15B, WRE-15B, WRN2-15B, WRE2-15B, WRN-15AB, WRE-15AB, WRN2-15AB, WRE2-15AB, WRN-4318, WRE-4318,,WN2-4318, WRE2-4318, WRN-43C, WRE-43C, WRN2-43C, WRE2-43C, WRR-120, WRR-121, WRR2-120, WRR2-121, WRP-120, WRP-121, WRP2-120,,
|
