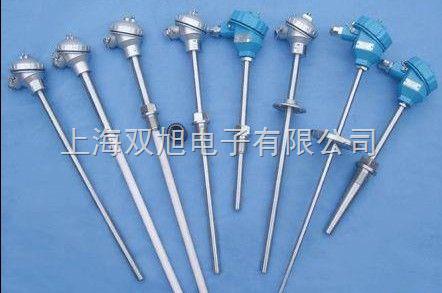

套管式熱電阻WZP2-634 廠家
產品概述
套管式熱電阻WZP2-634是一種用于溫度測量和控制的傳感器，可與顯示儀表配套使用，直接測量和控制生產過程中氣體、液體和蒸汽的溫度。該產品廣泛應用于發電廠管道測溫以及其他工業部門的溫度測量場景，能夠滿足不同工業環境下的測溫需求。14
產品特點
WZP2-634套管式熱電阻采用1Cr18Ni9Ti不銹鋼作為保護管材料，具有優異的耐腐蝕性和機械強度。其置入深度可選范圍廣泛，包括50mm至500mm之間的多種規格，能夠適應不同安裝環境的要求。產品設計注重穩定性和精度，確保在-200℃至500℃的寬溫度范圍內提供可靠的溫度測量數據。25
技術參數
該型號熱電阻采用Pt100分度號，測溫范圍覆蓋-200℃至500℃。產品提供多種置入深度選擇，包括50mm、100mm、150mm、200mm等規格，可根據實際應用場景靈活選用。保護管采用1Cr18Ni9Ti不銹鋼材質，螺紋連接方式為ZGI″(NPT″)，能夠承受一定的機械應力和環境壓力。814
應用領域
WZP2-634套管式熱電阻適用于多種工業場景的溫度測量，包括石油化工、冶金、電力、制藥等行業。產品特別適合用于管道溫度監測，能夠穩定工作在氣體、液體和蒸汽介質中，為工藝控制提供準確的溫度數據。其可靠性和穩定性使其成為工業溫度測量領域的重要選擇。312
Product Overview
The WZP2-634 sheathed thermal resistor is a temperature sensor designed for measurement and control applications. It works with display instruments to directly measure and monitor temperatures of gases, liquids and vapors in industrial processes. This product finds wide application in power plant pipeline temperature measurement as well as other industrial temperature monitoring scenarios. 14
Product Features
The WZP2-634 features a protective tube made of 1Cr18Ni9Ti stainless steel, offering excellent corrosion resistance and mechanical strength. It provides multiple insertion depth options ranging from 50mm to 500mm to accommodate various installation requirements. The product is engineered for stability and accuracy, delivering reliable temperature measurements across a broad range from -200℃ to 500℃. 213
Technical Specifications
This thermal resistor model uses Pt100 classification with a temperature measurement range of -200℃ to 500℃. Available insertion depths include 50mm, 100mm, 150mm, 200mm and more, providing flexibility for different application environments. The protective tube s threaded connection is ZGI″(NPT″) type, capable of withstanding certain mechanical stress and environmental pressure. 1418
Application Fields
The WZP2-634 sheathed thermal resistor is suitable for temperature measurement in various industrial settings including petrochemical, metallurgy, power generation and pharmaceutical industries. Particularly ideal for pipeline temperature monitoring, it performs stably in gas, liquid and vapor media to provide accurate temperature data for process control. Its reliability and stability make it a preferred choice for industrial temperature measurement applications. 315
套管式熱電阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式熱電偶，作為溫度測量和控制的傳感器與顯示儀表配套，以直接測量和控制生產過程中氣體，液體和蒸氣的溫度。不僅用于發電廠管道測溫，同時也用于其他工業部門的測溫。
化工專用隔爆型熱電偶WRCK-502，WRCK-522，WRCK-532，WRCK-592，WRCK-582，WRCK2-521，WRCK2-531，WRCK2-522，WRCK2-532，WREK-1313，WREK-1314，WREK-1315，WREK-1316，WREK-1323，WREK-1324，WREK-1325，WREK-1326，WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRFK-281A, WRFK-181A., WRCK-281A, WRCK-181A, WREK-281A, WREK-181A, WRNK-281A, WRNK-181A, WZPM-202U, WZPM-201U, WRNM-202A, WZPM-101U, WZPM-102U, 化工專用熱電偶WREM-102A, WRNM-201A, WRNM-203A WRNN-436, WRNN2-436, WRN-420B, WRN-430B, WRN2-420B, WRN2-430B, WRE-420B, WRE-430B, WRE2-420B, WRE2-430B, WRN-420C, WRN-430C, WRN2-420C, WRN2-430C, WRE-420C, WRE-430C, WRE2-420C, WRE2-430C, WRN-420D, WRN-430D, WRN2-420D, WRN2-430D, WRE-420D, WRE-430D, WRE2-420D, 可動式熱電偶WRE2-430D, WZP-420B, WZP-421B, WZP-430B, WZP-431B, WZP2-420B, WZP2-421B, WZP2-430B, WZP2-431B, WZC-420B, WZC-430B, WZP-420C, WZP-421C, WZP-430C, WZP-431C, WZP2-420C, WZP2-421C, WZP2-430C, WZP2-431C, WZC-420C, WZC-430C, WZP-420D, WZP-421D, WZP-430D, WZP-431D, WZP2-420D, WZP2-421D, WZP2-430D, WZP2-431D, WZC-420D, WZC-430D.WRR-433Q, WRNR-93UC, WRER-93UC, WRNR2-93UC, WRER2-93UC, WRNT-001, WRNT2-001, 耐腐、耐磨熱電偶WRET-001, WRET2-001, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRER-13, WRNR2-13. WRER2-13. WRNR-14, WRER-14, WRNR2-14, WRER2-14, WRNR-15, WRER-15, WRNR2-15, WRER2-15, WRN-15A, WRER-15A, WRNR2-15A, WRER2-15A, WRNT-31, WRET-31, WRNT2-31, WRET2-31, 套管式熱電偶WRNK-841n﹡D, WRNK-842n﹡D, WREK-841n﹡D. WREK-842n﹡D, WRNK-841n﹡I, WRNK-842n﹡I, WREK-841n﹡I. WREK-842n﹡I, WREK-842n﹡I, WRN-240A, WRN2-240A, WRE-240A, WRE2-240A, WRN-640A,WRN2-640A,WRE-640A,WRE2-640A, WRN-440A,WRN2-440A, WRE-440A,WRE2-440A, WRNK-240, WRNK2-240, WREK-240, WREK2-240, WRNK-440, WRNK2-440, WREK-440, WREK2-440, WRN-74O,WRN2-74O, WRN-74O, WRN2-74O, WRNR-15, WRNR2-15, WRNR-15A, WRNR2-15A, WRER-15, WRER2-15, WRER-15A, WRER215A, WRN-624, WRN-625, WRE-624, WRE-625, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRNR2-13, WRER-13, WRER2-13,WRNR-14, WRNR2-14, WRER14, WRER2-14, WRN-631, WRN2-631, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRN-130, WRN2-130, WRN-230, WRN2-230, WRN-330, WRN2-330, WRN2-430, WRN-430, WRE-130, WRE2-130, 熱電偶 WRE-230, WRE2-230, WRE-330, WRE2-330, WRE-430, WRE2-430, WREK-1313, WREK-1314, WREK-1315, WREK-1316, WREK-1323, WREK-1324, WREK-1325, WREK-1326, WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRN-001, WRE-001. WRN-002, WRE-002, WRN-235T, WRN2-235T, WRE-235T, WRE2-235T, WRN-130-F, WRN-230-F, WRN-330-F, WRN-430-F, WRN2-130-F, WRN2-330-F, WRN2-430-F, WRE-130-F, WRE-230-F, WRE-330-F, WRE-430-F,WRE2-130-F,WRE2-230-F,WRE2-330-F.WRE2-430-F.WRN-130(*),WRN-230(*),WN-330(*),WN-430(*).,WRNN2-130(*),WNN2-230(*),WRNN2-330(*),WNN2-430(*),WREN-130, WREN-230, WREN-330, WREN-430, WREN2-130, WREN2-230, WREN2-330, WREN2-430, WRNN-530(*),WRNN2-530(*),WREN-530,WREN2-530,WRNN-631(*),WRNN2-631(*),WREN-631, WREN2-631, WRN-12B, WRE-12B, WRN2-12B, 裝配式熱電偶WRE2-12B, WRN-13B, WRE-13B, WRN2-13B, WRE2-13B, WRN-14B, WRE-14B, WRN2-14B, WRE2-14B, WRN-15B, WRE-15B, WRN2-15B, WRE2-15B, WRN-15AB, WRE-15AB, WRN2-15AB, WRE2-15AB, WRN-4318, WRE-4318,,WN2-4318, WRE2-4318, WRN-43C, WRE-43C, WRN2-43C, WRE2-43C, WRR-120, WRR-121, WRR2-120, WRR2-121, WRP-120, WRP-121, WRP2-120,,
|
