【產品中英文介紹】

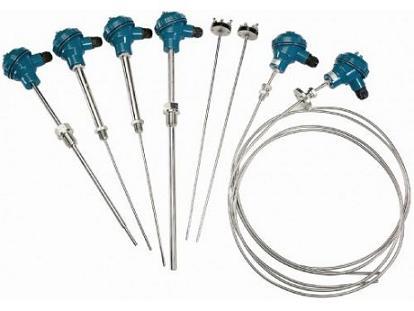

WZP-6212U 裝配式鉑電阻溫度傳感器
WZP-6212U Assembled Platinum Resistance Temperature Sensor
產品概述
Product Overview
WZP-6212U 裝配式鉑電阻是基于國際先進溫度傳感技術開發的精密測溫裝置，專為工業過程控制領域設計。產品采用模塊化裝配工藝，結合特殊工藝處理的鉑電阻元件，在-200℃~+500℃寬溫域范圍內實現穩定測量，滿足石油化工、電力能源、制藥食品等行業的多樣化需求。
核心技術
Core Technology
本產品核心部件采用穩定型鉑電阻元件，通過真空熔覆工藝實現感溫元件與保護管的高密度結合。多層復合結構設計有效隔離介質腐蝕與機械振動影響，配合專屬溫度補償算法，在復雜工況下仍能保持±0.15℃的測量一致性。過程連接部件采用三向應力緩沖設計，顯著提升設備在壓力波動場景中的可靠性。
應用領域
Application Scope
• 工業鍋爐與熱力系統溫度監測
• 化工反應裝置過程控制
• 制藥設備潔凈環境監控
• 食品加工鏈溫控節點
• 新能源電池模組熱管理
產品優勢
Product Advantages
- 寬域適配：支持直管/彎管/法蘭等多種安裝方式，可根據現場工況靈活選配
- 動態響應：優化的熱傳導結構使響應時間比常規產品縮短30%
- 介質兼容：提供316L、哈氏合金、鈦材等多材質保護管選項
- 長效穩定：經過2000小時加速老化測試，輸出漂移量＜±0.05%
- 維護便捷：模塊化組件支持現場快速更換，降低維護停機時間
技術參數
Technical Parameters
測量范圍：-200～+500℃
精度等級：Class A（0.15+0.002|t|℃）
熱響應時間：τ0.5≤8s（液體介質）
保護管壓力等級：PN16～PN40可選
電氣接口：M20×1.5／1/2NPT
防護等級：IP67
服務保障
Service Commitment
我們提供專業技術咨詢與選型指導，擁有完善的售后服務體系，可根據用戶需求提供個性化解決方案。產品出廠前均經過72小時工況模擬測試，確保交付品質穩定可靠。支持非標尺寸定制，滿足特殊場景應用需求。
English Version:
WZP-6212U Assembled Platinum RTD
High-Performance Temperature Measurement Solution
Innovative Design
The WZP-6212U features a modular assembly structure with advanced platinum sensing technology. Its multi-layer protective construction effectively withstands harsh industrial environments while maintaining measurement accuracy. The optimized thermal conduction path ensures rapid response to temperature changes.
Key Features
• Wide operating range: -200°C to +500°C
• Enhanced durability: Triple-layer shock absorption design
• Flexible configuration: Multiple process connections (flange/threaded/sanitary)
• Media compatibility: Optional 316L/Hastelloy/Ti material sheaths
• Maintenance-friendly: Field-replaceable sensing module
Performance Highlights
Precision engineering enables ±0.15°C basic accuracy with excellent long-term stability. The unique thermal buffer design minimizes measurement deviation caused by ambient temperature fluctuations. All welding joints undergo strict pressure testing to ensure leak-free performance under 4MPa working pressure.
Application Flexibility
Suitable for various installation scenarios including pipelines, reactors, and thermal storage systems. Customizable probe length (50-2000mm) and diameter (6-12mm) options available. Compatible with most industry-standard temperature transmitters and control systems.
Technical Specifications
Accuracy: ±(0.15 + 0.002|t|)°C
Response Time: <8s in stirred oil
Pressure Rating: ANSI 150～300LB options
Electrical Connection: Terminal box/explosion-proof conduit
Ambient Limit: -40°C～+85°C
Service Support
Our engineering team provides application-specific technical consultation and lifecycle maintenance guidance. All products undergo 100% performance verification before shipment. Custom calibration services available upon request.
