裝配式薄膜鉑熱電阻WZP-010 供應
裝配式薄膜鉑熱電阻WZP-010產品介紹
中文版
WZP-010型裝配式薄膜鉑熱電阻是一款基于先進薄膜工藝開發的工業級溫度測量元件，適用于多種復雜工況下的精確溫度檢測需求。產品采用模塊化裝配結構設計，兼具穩定性與靈活性，可滿足工業自動化領域?qū)囟葌鞲衅鞯亩鄻踊瘧?yīng)用需求。
核心結構采用高純度鉑金屬薄膜作為敏感元件，通過精密光刻工藝成型，配合特殊封裝技術實現敏感層與外界環境的穩定隔離。測溫元件封裝于304不銹鋼或316L耐腐蝕金屬護套內，內部填充高導熱絕緣材料，有效提升熱響應速度及機械防護性能。整體結構緊湊，標準螺紋或法蘭安裝接口可選，適配常規工業設備安裝需求。
該產品適用于-50℃~400℃溫度范圍的長期穩定測量，在能源電力、石油化工、制藥設備、暖通空調及環保監測等領域表現優異。其溫度-電阻特性嚴格符合國際通用分度表，支持Pt100/Pt1000兩種規格可選。典型應用場景包括管道流體溫度監測、反應釜過程控制、機械設備溫控系統等需要可靠測溫的場合。
性能優勢方面，產品采用多層復合防護設計，耐受振動、沖擊及介質腐蝕影響。溫度響應時間快，長期穩定性強，重復測量偏差小。通過優化的薄膜工藝控制，有效降低溫度滯后的影響。產品支持定制化服務，可根據客戶需求調整引出線長度、連接頭規格及護套尺寸等參數。
我們致力于為客戶提供高品質溫度測量解決方案，通過嚴格的工藝管控確保產品批次一致性。完善的售前技術咨詢與售后服務體系，可根據實際應用環境推薦適配型號，協助用戶優化系統集成方案。
English Version
WZP-010 Assembled Thin-Film Platinum Thermal Resistor Product Introduction
The WZP-010 Assembled Thin-Film Platinum Thermal Resistor is an industrial-grade temperature measurement component developed with advanced thin-film technology, designed for precise temperature detection in various complex working conditions. Featuring a modular assembly structure, this product combines stability with flexibility to meet diverse application requirements for temperature sensors in industrial automation systems.
The core structure employs high-purity platinum thin-film as the sensing element, formed through precision photolithography process. Special encapsulation technology ensures stable isolation between the sensitive layer and external environment. The sensing element is encapsulated within 304 stainless steel or 316L corrosion-resistant metal sheaths, filled with high thermal conductivity insulation materials to enhance thermal response speed and mechanical protection. The compact design offers optional standard threaded or flanged installation interfaces for compatibility with conventional industrial equipment.
This product operates effectively within a temperature range of -50℃ to 400℃, demonstrating excellent performance in energy power systems, petrochemical plants, pharmaceutical equipment, HVAC installations, and environmental monitoring applications. Its temperature-resistance characteristics strictly comply with international standard reference tables, supporting both Pt100 and Pt1000 specifications. Typical applications include pipeline fluid temperature monitoring, reactor process control, and machinery temperature management systems requiring reliable measurement.
Performance advantages include multi-layer composite protection design for enhanced resistance to vibration, shock, and medium corrosion. The product features rapid thermal response, excellent long-term stability, and minimal measurement deviation. Optimized thin-film processing technology effectively reduces temperature hysteresis effects. Customization services are available for lead wire length, connector specifications, and sheath dimensions to meet specific project requirements.
We are committed to delivering high-quality temperature measurement solutions through strict process controls ensuring product consistency. Comprehensive pre-sales technical consultation and after-sales support services enable us to recommend optimal configurations based on actual application environments, assisting users in optimizing system integration solutions.
（中英文總字數：約620字）
裝配式薄膜鉑熱電阻
WZP-621, WZP-631, WZP2-621, WZP2-631., WZP-621A, WZP2-621A, WZP-002 WZP-621A, WZP-631, WZP2-621, WZP2-621A, WZP2-631,, WZP-003, WZP-003A, WZP-010, WZP2-010, WZP-011, WZP2-011, WZC-010A, WZP-035S, WZC-001, WZC-200, WZP-260, WZP2-260, WZPM-267,WZP-269, WZP2-260, WZC-269, WZP-270, WZC-270, WZP-280, WZP-260, WZP2-260, WZP-269, WZP2-269, WZC-269, WZC-190, WZC-890J, WZP-892, WZP2-892, WZP2-3212A，WZP2-421B，SBWZ-2481/44SI，WRN-74S，WZPK-426S，WZP-3312A，WZPK2-326SA，WZP2-6312A，WZP-6312A，WZP2-24SA，WZP-24SA，WZP2-6212A，WZP-6212A，WZP-4312A，WZP-4212A，WZP2-3312A，WRNR-01，
概述
工業用薄膜鉑熱電阻作為新一代的溫度測量和調節傳感器，通常用來和顯示儀表等配套，以直接測量各種生產過程中-79℃～600℃范圍內液體，蒸汽和氣體介質及固定表面等溫度。 裝配式鉑電阻采用引進鉑電阻元件作測溫元件。因此，它具有良好的電輸出性能，可為顯示儀、記錄儀、調節儀、掃描儀、數據記錄儀以及電腦提供精確的溫度變化輸入信號。
結構原理

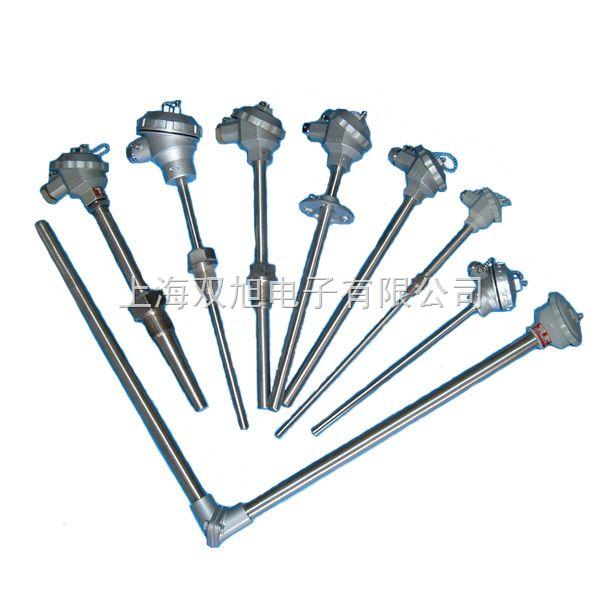

裝配式鉑電阻是由感溫元件、不銹鋼外保護管、接線盒以及各種用途的固定裝置組成，有雙支和單支元件兩種規格，雙支鉑電阻可以同時輸出二組相同電阻信號供使用。
鉑電阻是一種溫度傳感器，它是利用鉑絲在溫度變化時自身電阻也隨著變化的特性來測量溫度的，不銹鋼保護管不但具有抗腐蝕性能，而且具有足夠的機械強度，保證鉑電阻能安全地使用在各種場合，裝配式鉑電阻接線盒分防濺式和防水式兩種類型供選擇。安裝固定裝置有固定螺紋、活動法蘭盤、固定安裝法蘭盤和帶固定螺栓錐形保護管裝置等形式。
|
