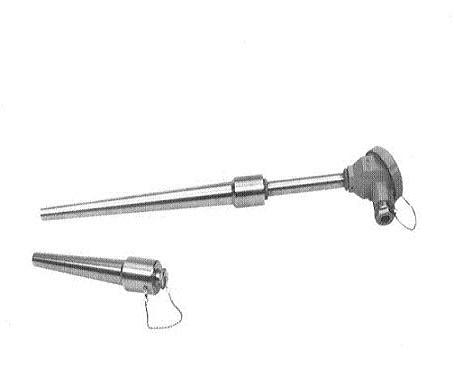

可動式熱電偶熱電阻WRNR-13 廠家
產品概述
WRNR-13可動式熱電偶熱電阻是一種專為工業溫度測量設計的高性能傳感器，特別適用于電站、化工等高溫高壓環境。該產品采用先進制造工藝，上節帶可動式固定螺紋結構，可在360°方向靈活安裝，維修時無需卸壓停機，顯著提升了設備維護效率和使用便捷性。其測溫范圍覆蓋0-800℃，滿足不同工況需求。24
結構特點
該產品采用分體式設計，熱套保護管與電偶可分離，用戶可將熱套焊接或機械固定在設備上后安裝電偶即可工作。保護管材質選用0Cr18Ni12MO2Ti不銹鋼，具有優異的耐腐蝕和抗壓性能。感溫元件置入長度提供50mm至300mm多種規格，可根據實際測量深度靈活選擇。獨特的可動螺紋結構解決了傳統熱電偶安裝角度受限的問題。414
技術性能
WRNR-13在常溫下絕緣電阻值不小于100MΩ，能夠穩定傳輸溫度信號。采用鎳鉻-鎳硅熱電偶元件，具有良好的熱穩定性和測量精度。產品設計參考了工業應用經驗，在500V直流電壓測試條件下仍保持可靠性能。特別優化了在蒸汽管道及鍋爐環境下的使用表現，能夠承受29.4MPa的工作壓力。619
應用領域
本產品廣泛應用于電力行業的汽輪機、鍋爐系統，石油化工裝置的溫度監控，以及各類需要高溫高壓測量的工業場景。其結構形式特別適合需要頻繁維護或更換的工況，解決了傳統熱電偶維修時必須停機的痛點。產品通過優化熱套與電偶的配合方式，顯著延長了保護管的使用壽命。89
使用優勢
維修人員可輕松拉出上節及元件部分進行操作，大幅降低了維護難度和時間成本。采用標準化接口設計，兼容主流顯示儀表和控制系統。產品經過嚴格測試，在高溫環境下仍能保持穩定的熱電勢輸出，為生產過程的溫度控制提供可靠數據支持。特殊的結構設計使其在介質流速達100m/s時仍能正常工作。715
Product Overview
The WRNR-13 movable thermocouple/resistance thermometer is designed for industrial temperature measurement in extreme conditions. Its innovative movable threaded connection allows 360-degree installation flexibility in power plants and chemical processing systems, eliminating downtime during maintenance. The product operates reliably within 0-800℃ range with robust stainless steel protection tube.46
Structural Features
Featuring a separable assembly design, the heat sleeve can be permanently welded while the sensing element remains replaceable. The rotating upper section with M20×1 thread enables versatile mounting orientations. Multiple insertion lengths (50-300mm) accommodate different measurement depths. The construction eliminates blind spots in cramped installation spaces.214
Technical Performance
The nickel-chromium/nickel-silicon thermocouple element ensures stable signal output even under 29.4MPa pressure. Excellent insulation resistance (>100MΩ) prevents signal leakage. Optimized for steam pipeline and boiler applications, it withstands fluid velocities up to 100m/s without performance degradation.919
Application Scenarios
Ideal for turbine temperature monitoring, reactor vessels, and other high-pressure systems requiring regular sensor maintenance. The design significantly reduces replacement time compared to conventional thermocouples. Compatible with most control systems through standardized output connections.815
Operational Benefits
Field technicians can safely extract the sensing assembly under pressure for inspection or replacement. The modular design extends service life by allowing independent replacement of wear components. Reliable performance in vibration-intensive environments makes it suitable for rotating equipment monitoring.714
