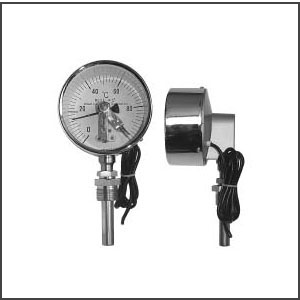

電接點雙金屬溫度計WZPK-233U 供應
產品概述
WZPK-233U電接點雙金屬溫度計是一款專為工業現場溫度監測與控制設計的精密儀器，適用于液體、蒸汽及氣體介質的溫度測量。該產品采用雙金屬感溫元件原理，通過機械結構將溫度變化轉化為指針位移，同時配備可調節的上下限電接點裝置，實現溫度自動報警或控制功能。其核心部件采用優質不銹鋼材料，確保在-80℃至+500℃的寬量程范圍內穩定工作，滿足石油、化工、電力等行業的嚴苛環境需求。產品具備現場直觀顯示與遠程信號聯動的雙重功能，為用戶提供靈活的溫度管理方案。120
產品特點
WZPK-233U電接點雙金屬溫度計具有多重實用特性：其表殼采用防腐蝕設計，支持軸向、徑向或萬向安裝方式，適應不同空間布置需求；雙金屬螺旋管結構確保響應速度≤40秒，測量精度達1.5級；機械接點裝置通過繼電器電路實現無源控制，最大承載電流0.7A，可直接驅動小型控制設備。特別設計的抽芯式結構允許不停機維護，顯著降低運維成本。產品提供60mm/100mm/150mm三種表盤規格，保護管長度可根據客戶需求定制，插入深度建議大于100mm以保證測量準確性。122428
工作原理（Working Principle）
The WZPK-233U bimetal thermometer operates based on differential thermal expansion principle: two bonded metal strips with distinct expansion coefficients form a helical sensing element. As temperature changes, the helical coil winds or unwinds to drive the pointer rotation, displaying real-time temperature on calibrated dial. The integrated electrical contacts trigger at preset temperature thresholds, activating control circuits without external power supply. This mechanical action ensures reliable operation even in high-interference environments.1228
應用領域（Applications）
This instrument is widely adopted in process industries including:
- Oil & Gas: Monitoring pipeline temperatures and overheating protection
- Chemical Plants: Reactor temperature surveillance in corrosive atmospheres
- Power Generation: Bearing temperature detection for rotating equipment
- Food Processing: Hygienic temperature control in sterilization processes
- HVAC Systems: Duct air temperature regulation Its robust construction withstands vibration, moisture, and moderate chemical exposure, making it suitable for harsh operational conditions. The product s dual-scale display (Celsius/Fahrenheit optional) facilitates international project applications.1920
技術參數（Specifications）
• Measurement Range: -80~+500℃ (custom ranges available) • Accuracy Class: 1.5級（Class 1.5） • Contact Capacity: 0.7A AC/DC • Protection Tube Material: 1Cr18Ni9Ti or 316L stainless steel • Installation Thread: M16×1.5/M27×2 or NPT threads • Ambient Operating Limits: -25~+55℃ with ≤85% RH • Electrical Contacts Configuration: SPDT form C (1NO+1NC) • Dial Options: Stainless steel or aluminum with white/color-coded background Standard models feature IP55防護等級 enclosure, while special versions offer enhanced sealing. 52124
選型指導（Selection Guide）
When ordering WZPK-233U, please specify:
- Dial diameter (60/100/150mm)
- Temperature scale range
- Installation type (axial/radial/universal)
- Insertion length (75-2000mm)
- Connection thread standard
- Contact configuration (single/double setpoint)
- Special material requirements Example model code: WZPK-233U-100-0~300℃-L150mm-M27×2-1NO. Our engineering team can provide customized solutions for unique applications. 1124
電接點雙金屬溫度計
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
電接點雙金屬溫度計，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
應用
電接點雙金屬溫度計應用于生產現場對溫度需自動控制和報警。直接測量各種生產過程中-80～500℃范圍內體、蒸汽
和氣體介質溫度。
電接點雙金屬溫度計的特點：
• 現場顯示溫度，直觀方便；
• 具有自動切斷電源和報警功能；
• 安全可靠，使用壽命長；
• 多種結構形式，可滿足不同要求。
工作原理
電接點雙金屬溫度計是利用溫度變化時帶動觸點變化，當其與上下限觸點或斷開的同時，使電路中的繼電器動作，從而自動控制及報警。
主要技術參數
• 產品執行標準：JB/T8803-1998 GB3836-83
• 標度盤公稱直徑：100
• 精度等級：（1.0），1.5
• 熱響應時間：≤40S
• 防護等級：IP55
• 正常工作大氣條件：溫度-25～+55℃，相對濕度≤85%
• 設定點誤差：設定點誤差應不超過基本誤差限的1.5倍。
• 切換差：切換差應不超過基本誤差限的1.5倍。
• 切換重復性：切換重復性極限范圍不大于基本誤差限值的1/2。
|
