【W(wǎng)ZPK2-136S電接點雙金屬溫度計產品介紹】

產品概述：
WZPK2-136S電接點雙金屬溫度計是一款采用雙金屬傳感技術的工業級溫度測量?jī)x表，通過機械結構與電接點系統的創新結合，可實現溫度監控與信號輸出的雙重功能。產品采用全密封不銹鋼結構，適用于復雜工況環境，兼顧直觀的指針顯示與穩定的電信號傳輸，為用戶提供可靠的過程控制解決方案。

核心特點：

1. 雙重功能集成
   指針表盤提供直觀的本地溫度讀數，同步配置可調節上下限電接點，當溫度達到預設閾值時自動觸發開關信號，滿足自動化控制需求。

2. 強化結構設計
   表殼采用304不銹鋼整體沖壓成型，防護等級達到IP65，有效抵御水汽、粉塵及輕度腐蝕性介質。傳感元件經特殊退火工藝處理，長期保持測量穩定性。

3. 寬域適應能力
   測溫范圍覆蓋-40℃至500℃，適配液體、氣體及蒸汽介質。通過調整感溫管長度（支持50-1000mm定制），可靈活應對不同安裝深度的需求。

4. 智能調節機制
   表頭配置磁助式調節旋鈕，用戶無需開蓋即可校準指針位置，降低維護頻次。電接點動作差值可根據工況需求進行微調，減少誤觸發概率。

5. 兼容性設計
   提供軸向/徑向/萬向型等多種表頭安裝方向，適配DIN標準過程連接方式�？蛇x配4-20mA模擬量輸出模塊，便于接入PLC/DCS控制系統。

應用領域：
• 石油化工：反應釜溫度監控、管道介質過熱保護
• 食品制藥：滅菌設備溫度聯鎖、發酵過程控制
• 機械設備：液壓系統溫度預警、軸承過熱保護
• 能源電力：鍋爐輔機監控、換熱裝置啟�？刂�

技術參數：
測溫范圍：-40~500℃（分段可選）
精度等級：±1.5% F.S
防護等級：IP65
接點容量：AC 220V 3A（阻性負載）
過程接口：G1/2"、M27×2等可選
插入深度：50-1000mm（常規規格）

服務支持：
提供工況適配選型指導、安裝定位建議及定期維護方案，支持特殊規格定制開發（接口形式、量程調整、接點組合配置等），確保設備與現場工藝的精準匹配。

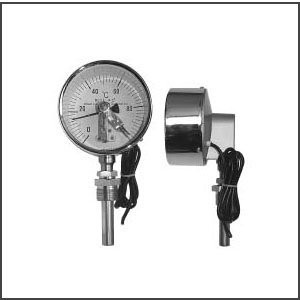

【W(wǎng)ZPK2-136S Electrical Contact Bimetal Thermometer Introduction】

Product Overview:
The WZPK2-136S electrical contact bimetal thermometer integrates mechanical temperature indication with electrical switching functionality. Featuring a fully sealed stainless steel construction, this industrial-grade instrument combines durable measurement performance with reliable signal output capabilities, making it suitable for demanding process control applications.

Key Features:

1. Dual Functionality
   Analog dial provides local temperature visualization, while adjustable upper/lower limit contacts generate switch signals when preset temperatures are reached, enabling automated system responses.

2. Robust Construction
   304 stainless steel housing with IP65 protection resists moisture, dust, and mild corrosive environments. Specially annealed sensing elements ensure long-term measurement consistency.

3. Extended Compatibility
   Covers -40℃ to 500℃ measurement range for liquid, gas, and steam media. Customizable insertion lengths (50-1000mm) accommodate various installation requirements.

4. User-Friendly Adjustment
   Magnetic-assisted calibration knob allows zero-point adjustment without opening the case. Adjustable contact differential minimizes false triggering in dynamic conditions.

5. Flexible Configuration
   Available in axial/radial/universal orientations with DIN-standard process connections. Optional 4-20mA output module enhances system integration capability.

Typical Applications:
• Chemical Plants: Reactor temperature supervision, pipeline overheat protection
• Food Processing: Sterilization system interlocks, fermentation control
• Mechanical Systems: Hydraulic oil temperature alert, bearing thermal management
• Power Generation: Boiler auxiliaries monitoring, heat exchanger cycling

Technical Specifications:
Measurement Range: -40~500℃ (selectable segments)
Accuracy: ±1.5% F.S
Protection Rating: IP65
Contact Rating: AC 220V 3A (resistive load)
Process Connection: G1/2", M27×2, etc.
Insertion Length: 50-1000mm (standard options)

Service Support:
Comprehensive technical consultation covering model selection, installation optimization, and maintenance planning. Customization services include special connection types, range modification, and contact configuration to meet specific operational requirements.
