雙金屬溫度計wss-401 供應
中文介紹

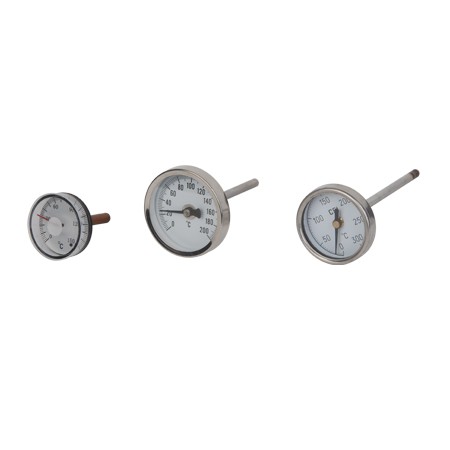

WSS-401雙金屬溫度計是一種用于測量中低溫的現場檢測儀表，能夠直接測量氣體和液體的溫度。其保護管、節頭、鎖緊螺栓等均采用1Cr18Ni9Ti材料，表殼采用鋁板拉伸成型經切削加工表面黑色電泳處理，表蓋與表盒采用環型雙層橡膠圈螺紋密封鎖緊結構，整體防水防腐性能良好。該溫度計的測溫范圍為-60-500℃，精度等級為1.5級，基本誤差限為量程的1.5%。溫度計指示部分按標度盤外徑分為φ60、φ100、φ150mm，尾管長度為100-2000mm。它具有無汞害、易讀數、牢固耐用等優點，廣泛應用于石油、化工、冶金、紡織、食品等工業領域。
English Introduction
The WSS-401 bimetallic thermometer is a field detection instrument used for measuring medium and low temperatures. It can directly measure the temperature of gases and liquids. The thermometer s protective tube, joints, and locking bolts are all made of 1Cr18Ni9Ti material. The case is made of aluminum plate, which is stretched and then processed by cutting, and the surface is treated with black electrophoretic coating. The cover and case are sealed and tightened with a double-layer rubber ring and screw thread structure, providing good waterproof and corrosion-resistant performance. The measuring range of this thermometer is -60-500℃, with a precision grade of 1.5 and a basic error limit of 1.5% of the range. The indicating part of the thermometer is divided into φ60, φ100, and φ150mm according to the outer diameter of the scale dial, and the tailpipe length is 100-2000mm. It has the advantages of being mercury-free, easy to read, sturdy, and durable, and is widely used in industries such as petroleum, chemical, metallurgy, textile, and food.
雙金屬溫度計
wss-561，wss-461，wss-552，wss-452，WSS-551，wss-451，wss-582，wss-482，wss-581，wss-481，wss-512，wss-412，wss-312，wss-511，wss-411，wss-311，wss-502，WSS-402，wss-302，wss-501，wss-401，WSS-301，WSSXP-481，WSSXE-481，WSSXP-411，WSSXE-411，WSSXP-401，WSSXE-401，WSSP-581，WSSP-481，WSSP-511，WSSP-411，WSSP-501，WSSP-401，WSSE-581，WSSE-481，WSSE-511，WSSE-411，WSSE-501，WSSE-401，WSS-583L
工作原理
雙金屬溫度計的工作原理是利用二種不同溫度膨脹系數的金屬，為提高測溫靈敏度，通常將金屬片制成螺旋卷形狀，當多層金屬片的溫度改變時，各層金屬膨脹或收縮量不等，使得螺旋卷卷起或松開。
由于螺旋卷的一端固定而另一端和一可以自由轉動的指針相連，因此，當雙金屬片感受到溫度變化時，指針即可在一圓形分度標尺上指示出溫度來。這種儀表的測溫范圍是200~650℃，允許誤差均為標尺兩程的1%左右。
概述
雙金屬溫度計的英文名稱是bimetal thermometer;bimetallic thermometer，是一種適合測量中低溫的現場檢測儀表，可直接測量各種生產過程中的液體、蒸汽和氣體介質溫度。
雙金屬溫度計主要的元件是一個用兩種或多種金屬片疊壓在一起組成的多層金屬片，利用兩種不同金屬在溫度改變時膨脹程度不同的原理工作的。是基于繞制成環性彎曲狀的雙金屬片組成。一端受熱膨脹時，帶動指針旋轉，工作儀表便顯示出熱電勢所應的溫度值。
|
