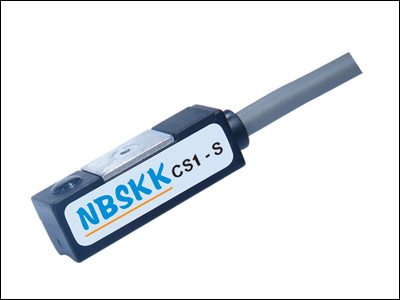

磁性開關CS1-S 價格
產品概述
磁性開關CS1-S是一款專為工業自動化設計的高性能感應元件，采用非接觸式磁感應原理，適用于氣缸位置檢測及機械設備行程控制。其結構緊湊，安裝便捷，能夠可靠地輸出開關信號，廣泛應用于注塑機、包裝機械、數控機床等自動化場景。該產品通過磁簧管技術實現信號切換，具有響應快速、使用壽命長的特點，可適配多種品牌的標準氣缸及迷你氣缸。16
技術特點
CS1-S磁性開關采用高亮度LED指示燈設計，便于現場狀態觀察，底部圓弧表貼結構增強了抗震性能。其工作電壓范圍為5-240V DC/AC，最大開關電流100mA，負載容量10W，能適應油污、粉塵等惡劣工業環境。產品支持二線式（磁簧管型）配置，導線采用耐油PVC材質護套，接頭部位采用防松脫設計，確保信號傳輸穩定。工作溫度覆蓋-10℃至60℃，防護性能優異，適合長期連續運行。1215
應用場景
該產品特別適用于空間受限的迷你氣缸（如TGA/TGL/TGM系列），可通過檢測活塞內置磁環的位置變化，實時控制物料分揀、機械手定位或流水線節拍。其模塊化設計支持快速更換，有效減少設備維護停機時間。典型應用包括自動化生產線、氣動控制系統及物流分揀設備等。1322
產品優勢
CS1-S磁性開關以高性價比和穩定性能著稱，無觸點設計徹底避免了傳統機械開關的電弧損耗問題。產品提供靈活的安裝方式，無需額外支架即可嵌入標準氣缸溝槽，顯著提升施工效率。其磁滯區間小于2mm，動作精準度高，適合對位置檢測要求嚴格的場景。2529
Product Overview
The CS1-S Magnetic Switch is a high-performance sensing component designed for industrial automation, utilizing non-contact magnetic induction technology for cylinder position detection and mechanical equipment stroke control. With a compact structure and easy installation, it reliably outputs switch signals and is widely used in injection molding machines, packaging equipment, CNC machines, and other automated systems. The product employs reed switch technology for signal switching, offering rapid response and extended service life, compatible with various standard and mini cylinders.16
Technical Features
The CS1-S features a high-brightness LED indicator for real-time status monitoring and an arc-bottom surface-mounted design for enhanced vibration resistance. It operates within a voltage range of 5-240V DC/AC, with a maximum switching current of 100mA and a load capacity of 10W, suitable for harsh environments like oil or dust exposure. The two-wire (reed switch) configuration uses oil-resistant PVC-sheathed cables and anti-loosening connectors to ensure stable signal transmission. Its operating temperature ranges from -10°C to 60°C, with robust protection for long-term continuous use.1215
Applications
Ideal for space-constrained mini cylinders (e.g., TGA/TGL/TGM series), this switch detects piston-embedded magnet position changes to control material sorting, robotic arm positioning, or conveyor timing. Its modular design allows quick replacement, minimizing downtime. Typical applications include automated production lines, pneumatic control systems, and logistics sorting equipment.1322
Advantages
The CS1-S stands out for its cost-effectiveness and reliability, with a contactless design eliminating arc wear common in mechanical switches. It supports tool-free installation via standard cylinder grooves, improving operational efficiency. A narrow hysteresis range (<2mm) ensures precise positioning, ideal for high-accuracy scenarios.2529
磁性開關
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，F(xiàn)D-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特點 ：
有PP、PVDF材質可適用于強酸堿場所；SUS 304/316金屬材質適用于高溫高壓桶槽。
接線盒規格齊全，有塑料、鋁合金、不銹鋼防爆型，防護等級IP-65以上。
接點容量50W/250VAC SPST或 30W/200VDC SPDT。
接續法蘭有JIS、DIN、ANSI規格；牙口有 NPT、PF、BSP等規格。
有ABS、GL、CR國際船籍認證及Ex防爆認證。
可做多點控制、安裝容易、節省成本。
|
