【中文產品介紹】

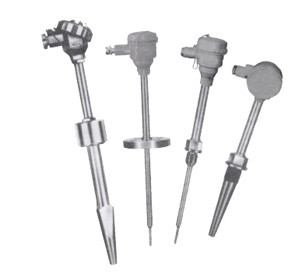

WZPK-105U 精密薄膜鉑熱電阻是專為工業溫度測量領域設計的高性能傳感元件。該產品采用先進薄膜沉積工藝，在氧化鋁陶瓷基片上形成納米級鉑金屬層，配合激光微調技術實現優異的測溫重復性。其獨特的緊湊型封裝結構可適配多種工業設備安裝需求，在-50℃至500℃寬溫域范圍內展現出色穩定性，尤其適用于溫度梯度變化頻繁的復雜工況環境。
本產品核心優勢體現在三方面：其一，選用高純度鉑材料結合真空封裝工藝，有效隔絕介質腐蝕與機械振動影響，平均無故障運行時間可達3萬小時以上；其二，通過創新性應力緩沖層設計，顯著降低冷熱沖擊導致的零點漂移問題，長期使用條件下年漂移量小于0.03%FS；其三，模塊化接線端子支持三線制/四線制自由切換，配合定制化保護套管方案，可兼容石油化工、電力能源、食品制藥等行業的多樣化安裝場景。
技術參數方面，產品提供分度號Pt100/Pt1000兩種配置，測溫精度達到A級（±0.15℃@0℃），熱響應時間τ0.5≤8秒（液體介質）。防護等級IP67殼體采用316L不銹鋼整體鍛造工藝，耐受壓力最高6MPa。自主研發的梯度退火工藝使元件在高溫段仍保持線性輸出特性，600℃條件下非線性誤差小于0.3%。產品適配DIN/IEC標準接口，支持G1/2、NPT 1/4等多種螺紋規格選配。
我們提供全流程技術支持服務，可根據客戶需求定制探桿長度（50-2000mm）、引線材質（聚四氟乙烯/玻璃纖維/金屬軟管）及接插件類型。所有出廠產品均經過72小時老化測試與多點溫度校準，確保批次一致性。針對特殊應用場景，可提供防爆型、衛生型、高抗震型等定制化解決方案。
【English Product Introduction】
The WZPK-105U thin-film platinum RTD represents cutting-edge temperature sensing technology for industrial applications. Engineered with magnetron-sputtered platinum film on alumina substrates, this sensor delivers exceptional measurement consistency through precisely controlled laser trimming processes. Its compact design accommodates diverse installation requirements while maintaining outstanding performance across a broad operational range from -50℃ to 500℃, particularly excelling in environments with rapid thermal cycling.
Three key technological advancements distinguish this product: The vacuum-encapsulated platinum sensing element resists chemical corrosion and mechanical stress, achieving over 30,000 hours MTBF. Proprietary stress-relief layers minimize zero-point drift caused by thermal shock, maintaining long-term stability with annual drift below 0.03%FS. Modular terminal blocks support flexible 3-wire/4-wire configurations, adaptable to various industrial scenarios through customizable sheath solutions.
Technical specifications include dual Pt100/Pt1000 options with Class A accuracy (±0.15℃@0℃). The IP67-rated 316L stainless steel housing withstands pressures up to 6MPa, while optimized thermal response reaches τ0.5≤8s in liquid media. Advanced annealing techniques ensure linear output characteristics with less than 0.3% nonlinearity at 600℃. Standard process connections cover DIN/IEC-compliant G1/2 and NPT 1/4 thread types.
Customization services include probe lengths (50-2000mm), cable materials (PTFE/fiberglass/metal conduit), and connector configurations. Each unit undergoes rigorous 72-hour aging tests and multi-point calibration for batch consistency. Specialized variants are available for explosive atmospheres, sanitary processes, and high-vibration environments, supported by comprehensive technical consultation throughout project implementation cycles.
