產品中文介紹：
WZP-212AB型薄膜鉑熱電阻是一款采用先進工藝制造的專業溫度傳感元件，適用于工業自動化、暖通空調、食品醫藥等領域的精準溫度檢測需求。該產品通過真空鍍膜技術將高純度鉑材料均勻沉積于陶瓷基板表面，結合激光微調工藝實現電阻值精密修正，確保溫度信號輸出的高線性度與長期穩定性。
產品采用304不銹鋼外殼設計，表面拋光處理兼具防護性與美觀度。內部填充特殊配方的絕緣導熱材料，有效提升抗震抗沖擊性能。傳感器探桿可選多種規格尺寸（直徑3mm至8mm），支持直管、彎管及法蘭安裝方式適配不同工況場景。根據客戶需求可定制不同引線長度（標準配置為2米耐高溫氟塑線纜），并提供PT100/Pt1000兩種電阻類型選擇。
在技術特性方面，該產品測量范圍覆蓋-50℃至+400℃，在0℃時基礎精度可達±0.15℃，全量程范圍內溫度響應時間小于0.8秒。獨特的表面鈍化工藝使元件具備優異的抗介質腐蝕能力，可長期應用于潮濕、油污等復雜工業環境。優化的熱傳導結構設計有效降低自熱效應，確保連續工作時測量數據的真實可靠性。
產品英文介紹：
The WZP-212AB thin-film platinum RTD is a precision temperature sensing device manufactured with advanced deposition technology, designed to deliver reliable temperature measurement in industrial automation, HVAC systems, and food/pharmaceutical processing applications. Its core element features a vacuum-sputtered platinum layer on high-grade ceramic substrate, precisely trimmed by laser calibration to achieve exceptional linearity and long-term stability.

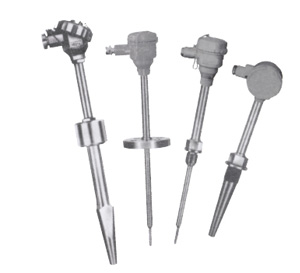

Encased in polished 304 stainless steel housing with IP67 protection rating, this sensor demonstrates remarkable mechanical durability and corrosion resistance. The modular design offers flexible installation configurations, including straight probe (3mm-8mm diameter options), 90° angled probe, and flange-mounted variants. Standard 2-meter high-temperature fluoropolymer cables are available with optional Pt100/Pt1000 output, accommodating diverse system integration requirements.
With an extended operational range from -50℃ to +400℃, the device maintains ±0.15℃ basic accuracy at 0℃ reference point. Rapid thermal response (T0.9<0.8s) is achieved through optimized thermal coupling structure, while the proprietary passivation layer effectively resists chemical corrosion in harsh environments. Low self-heating characteristics (0.02mW/℃ typical) ensure measurement integrity during continuous operation. Customizable immersion lengths and process connections enable seamless adaptation to various industrial applications.
