【產品概述】

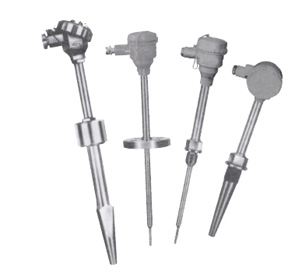

WZPK-306U薄膜鉑熱電阻是一款專為工業溫度測量設計的高精度傳感元件，采用先進薄膜沉積工藝制造而成。產品通過鉑金屬薄膜與陶瓷基板的精密結合，實現溫度信號的高靈敏度捕捉，可廣泛應用于流程工業、設備監測及環境控制等領域，為各類場景提供穩定可靠的溫度數據支持。
【核心優勢】
- 精密測溫性能：傳感器元件采用高純度鉑材料，結合數字化激光微調技術，確保全量程范圍內溫度測量誤差小于±0.15%，長期穩定性優異。
- 環境適應性強：一體化封裝結構配合304不銹鋼保護套管，具備IP67防護等級，可有效抵御潮濕、粉塵及中等強度化學腐蝕，適用于-50℃至500℃的寬溫域環境。
- 動態響應優化：超薄型感溫芯片配合熱導優化設計，使溫度響應時間較傳統產品提升約40%，特別適合快速變化的溫度場監測需求。
- 安裝兼容性高：支持多種引線配置（三線制/四線制），配備標準螺紋接口（可選M12×1.5/M16×1.5），適配主流工業儀表接口規范。
【應用領域】
• 能源系統：發電機組溫度監控、輸油管道伴熱檢測
• 制造行業：注塑機溫控系統、熱處理設備監測
• 環境工程：HVAC系統調控、實驗室恒溫裝置
• 食品醫藥：滅菌設備溫度驗證、冷鏈倉儲管理
【技術參數】
- 測溫范圍：-50～500℃（可定制擴展范圍）
- 熱響應時間：τ0.5＜3s（液體介質中）
- 引線類型：鍍銀銅芯PTFE絕緣電纜
- 電氣連接：航空插頭/直出線纜可選
- 機械振動：符合IEC 60068-2-6抗振要求
【服務支持】
我們提供完善的技術咨詢與定制化服務，可根據具體應用場景調整探頭尺寸、引線長度及接口形式，配合專業的現場安裝指導，確保設備集成后的最佳測量性能。產品出廠前均經過72小時連續老化測試，并提供24個月品質保證。
【English Version】
Product Overview
The WZPK-306U thin-film platinum RTD is a precision temperature sensing solution engineered for industrial applications. Utilizing advanced thin-film deposition technology, this sensor integrates platinum elements with ceramic substrates to deliver accurate temperature measurements across diverse operational environments.
Key Features
- Enhanced Accuracy: Laser-trimmed platinum sensing elements maintain measurement deviation within ±0.15% across full operational range
- Robust Construction: 304 stainless steel sheath with IP67 protection ensures reliable performance in humid, dusty and moderately corrosive conditions (-50℃ to 500℃)
- Rapid Response: Optimized thermal conduction design achieves 40% faster reaction speed compared to conventional sensors
- Flexible Integration: Multiple wiring configurations (3/4-wire) and standardized threading interfaces (M12×1.5/M16×1.5 optional)
Typical Applications
• Power plant thermal management
• Plastic injection molding control
• Pharmaceutical sterilization validation
• Food processing temperature monitoring
Technical Specifications
- Measurement span: -50～500℃ (extendable via customization)
- Time constant: τ0.5＜3s (in liquid medium)
- Cable option: Silver-plated copper conductor with PTFE insulation
- Connection interface: Aviation plug or direct cable output
- Vibration resistance: Complies with IEC 60068-2-6 standards
Service Commitment
We provide comprehensive technical support and customization services, including probe dimension adjustment, cable length optimization and interface modification. Each unit undergoes 72-hour continuous aging test prior to delivery, backed by 24-month quality assurance. Professional installation guidance ensures optimal system integration for varied application scenarios.
