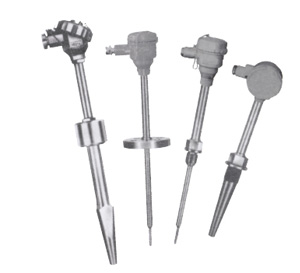

薄膜鉑熱電阻 WZPK-506U 產品介紹
中文介紹
薄膜鉑熱電阻 WZPK-506U 是一種高性能的溫度傳感器，廣泛應用于工業溫度測量場景。該產品采用一體化密封結構，外殼由不銹鋼材質經特殊工藝加工而成，內部封裝薄膜鉑電阻元件，結合致密氧化鎂絕緣材料填充技術，在提升機械強度的同時有效隔絕外界介質滲透。
在核心性能方面，WZPK-506U 具有較寬的工作溫度覆蓋范圍，能夠適應多種工業場景的溫度檢測需求。其電阻值隨溫度變化的線性關系穩定，配合特定工藝處理的引線系統，可實現溫度信號的高效傳輸。元件結構設計有效降低外界振動對內部敏感部件的影響，在動態工況下仍能保持測量數值的可靠性。熱響應時間經過優化，能及時反饋被測介質的溫度變化趨勢。
WZPK-506U 采用模塊化封裝設計，安裝時可適配多種工業管道的接口規格，支持不同角度的插入安裝方式。外殼表面經過防腐蝕處理，在含腐蝕性介質的環境中能保持結構完整性。防護結構設計可滿足常規工業環境的防護需求，減少粉塵、潮氣對內部元件的影響。
該產品適用于石油化工流程監測、電力設備溫控系統、冶金生產設備等工業場景的溫度檢測，在食品加工、制藥等對衛生要求較高的領域也有較好的適用性。使用過程中建議根據被測介質特性選擇匹配的插入深度，避免在超過規定機械強度的振動環境中長期使用，定期檢查引線連接部位狀態可延長設備使用壽命。
英文 Introduction
The WZPK-506U thin-film platinum thermistor is a high-performance temperature sensor widely used in industrial temperature measurement scenarios. This product adopts an integrated sealed structure, with a stainless steel shell processed by special technology, and the internal thin-film platinum thermistor element is encapsulated, combined with dense magnesium oxide insulation material filling technology, which enhances mechanical strength while effectively isolating external media penetration.
In terms of core performance, the WZPK-506U has a wide working temperature range, which can meet the temperature detection needs of various industrial scenarios. Its resistance value has a stable linear relationship with temperature changes, and the specially processed lead system can efficiently transmit temperature signals. The element structure design effectively reduces the impact of external vibration on internal sensitive components, and can still maintain the reliability of measurement values under dynamic working conditions. The thermal response time has been optimized to timely reflect the temperature change trend of the measured medium.
The WZPK-506U adopts a modular packaging design, which can be adapted to various industrial pipeline interface specifications during installation, and supports different angles of insertion installation. The shell surface is treated with anti-corrosion, which can maintain structural integrity in environments with corrosive media. The protective structure design can meet the protection needs of conventional industrial environments and reduce the impact of dust and moisture on internal components.
This product is suitable for temperature detection in industrial scenarios such as petrochemical process monitoring, power equipment temperature control systems, and metallurgical production equipment, and also has good applicability in fields with high hygiene requirements such as food processing and pharmaceuticals. During use, it is recommended to select the matching insertion depth according to the characteristics of the measured medium, avoid long-term use in vibration environments exceeding the specified mechanical strength, and regularly check the lead connection status to extend the service life of the equipment.
薄膜鉑熱電阻
WZP2-236SB，WZP-1312AB，WZP2-1312AB，WZP-212AB，WZP2-212AB，WZP-3312AB，WZP2-3312AB，WZP-4312AB，WZP2-4312AB，WZP-6312AB，WZPK-103U，WZPK-104U，WZPK-105U，WZPK-106U，WZPK-106U，WZPK-204U，WZPK-205U，WZPK-206U，WZPK-303U，WZPK-304U，WZPK-305U，WZPK-306U，WZPK-403U，WZPK-404U，WZPK-405U，WZPK-406U，WZPK-503U，WZPK-504U，WZPK-505U，WZPK-506U，WZPK-133U，WZPK-134U，WZPK-135U，WZPK-136U，WZPK-233U，WZPK-234U，WZPK-235U，WZPK-236U，WZPK-333U，WZPK-334U，WZPK-335U，WZPK-336U，WZPK-433U，WZPK-434U，WZPK-435U，WZPK-436U，WZPK-533U，WZPK-534U，WZPK-535U，WZPK-536U，WZPK-123UWZPK-124U，
簡介
工業用薄膜鉑熱電阻作為新一代的溫度測量和調節傳感器，通常用來和顯示儀表等配套，以直接測量各種生產過程中-79℃～600℃范圍內液體，蒸汽和氣體介質及固定表面等溫度。
技術參數
熱電阻感溫元件在0℃的電阻值（R0）
分度號Pt100 B級 R0=100±0.12Ω
鉑熱電阻的電阻與溫度關系一般可用以下關系表示：在-79～0℃范圍內
Rt=R0｛1+At+Bt2+C(t-100℃)t3｝
Rt=R0(1+At+Bt2)
Rt 為t℃時熱電阻的電阻值（Ω）
式中的R0為0℃時熱電阻的電阻值（Ω）
t為被測介質溫度（℃）
A、B、C等均為有關的分度常數
測量范圍和準確度
|
