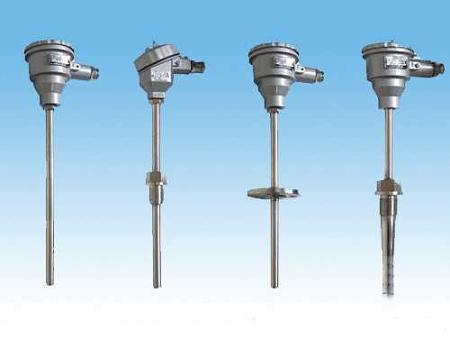

產品名稱：隔爆型鉑電阻溫度傳感器 WZPK2-136SA
（Explosion-Proof Platinum Resistance Thermometer WZPK2-136SA）
產品概述
WZPK2-136SA隔爆型鉑電阻溫度傳感器專為工業環境中的溫度測量需求設計，適用于存在可燃性氣體或粉塵的場所。產品采用特殊結構設計，在確保測量精度的同時實現安全防護，可廣泛應用于石油化工、能源開采、制藥等領域的流程監測與設備保護。
核心特點
-
安全防護設計
通過強化殼體結構與接合面優化處理，有效抑制內部電弧或高溫可能引發的風險。殼體材質選用高密度不銹鋼，結合多重密封工藝，確保在復雜工況下的長期穩定運行。
-
精確溫度感知
內置高純度鉑電阻元件，線性輸出特性保證-200℃~+500℃范圍內±0.15%的測量精度。元件封裝工藝經過優化處理，有效降低環境振動對測量結果的影響。
-
環境適應能力
防護等級達到IP65，可耐受潮濕、鹽霧及輕度化學腐蝕。接線腔體采用防滲漏設計，配合耐高溫絕緣材料，適應-40℃~+80℃的環境溫度波動。
-
便捷安裝維護
提供多種過程連接方式（法蘭/螺紋安裝），支持水平或垂直安裝方向。標準化接口設計可與主流控制系統快速對接，現場維護無需特殊工具。
應用領域
• 油氣儲運：儲罐溫度監控、管道伴熱系統
• 化工生產：反應釜溫度監測、蒸餾裝置
• 能源設施：發電機組軸承溫度檢測
• 制藥設備：滅菌工序溫度控制
技術參數
| 項目 |
參數 |
| 測溫范圍 |
-200℃~+500℃ |
| 精度等級 |
Class A (±0.15℃) |
| 熱響應時間 |
<8s（液體介質） |
| 電氣接口 |
M20×1.5/G1/2 |
| 防護等級 |
IP65/IP67（可選） |
英文版
Product Introduction: Explosion-Proof Platinum RTD WZPK2-136SA
The WZPK2-136SA explosion-proof platinum resistance thermometer delivers reliable temperature measurement in hazardous environments containing combustible substances. Engineered for industrial applications requiring both precision and safety, this robust sensor combines advanced thermal detection technology with explosion containment features.
Key Advantages
-
Intrinsic Safety Design
Multi-layer containment structure with precision-machined flame paths effectively prevents internal energy propagation. The stainless steel housing with corrosion-resistant coating maintains integrity under continuous thermal cycling.
-
Measurement Consistency
High-stability platinum sensing element achieves ±0.12% repeatability across the operational range. Vibration-resistant construction minimizes mechanical stress on sensitive components.
-
Environmental Durability
Sealed terminal compartment with double O-ring protection resists moisture ingress. Optional anti-abrasion sheath extends service life in particle-laden atmospheres.
-
Flexible Integration
Modular design supports various process connections (flange/threaded) and output configurations. Pre-calibrated units enable plug-and-play installation with common control systems.
Typical Applications
• Fuel storage tank temperature monitoring
• Chemical reactor thermal management
• Power plant equipment protection
• Pharmaceutical process validation
Technical Specifications
| Parameter |
Specification |
| Measurement Range |
-200℃ to +500℃ |
| Thermal Time Constant |
6s (in oil) |
| Electrical Connection |
Conduit entry M20 |
| Material Construction |
316SS housing |
| Lead Wire Option |
Teflon/PFA insulated |
