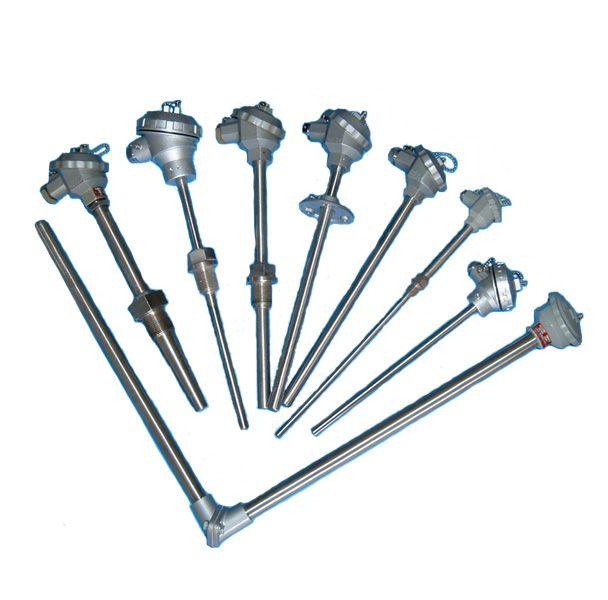

鎧裝鉑電阻WZPK-105S 供應
產品概述
鎧裝鉑電阻WZPK-105S是一種高精度溫度傳感器，采用不銹鋼保護套管和高密度氧化鎂絕緣材料制成，具有優異的機械強度和抗污染性能。其設計適用于復雜或空間受限的安裝環境，可直接通過銅導線與二次儀表連接，為工業自動化系統提供穩定的溫度監測信號。產品適用于液體、氣體及固體表面溫度測量，量程覆蓋-200℃至500℃，可滿足多種工業場景的需求。15
技術特點
該產品采用鉑電阻測溫元件，響應速度快，熱惰性小，例如直徑φ5mm的鎧裝結構熱響應時間僅需8秒，顯著減少動態誤差。其柔性設計支持多方向彎曲，便于在狹窄管道或微型設備中安裝。此外，產品具備良好的抗震性和耐壓性能，公稱壓力可達40V，適合振動或沖擊較大的工況環境。內部電阻絲采用氧化鐵絕緣保護，有效延長使用壽命。26
應用場景
WZPK-105S廣泛應用于石油化工、電力能源、食品加工等領域，尤其適合環境惡劣的場合，如高溫高壓反應釜、蒸汽管道或腐蝕性介質測量。其輸出信號可直接接入顯示儀表、記錄儀或計算機系統，為溫度控制、數據采集及過程自動化提供精準輸入。典型應用包括鍋爐溫度監控、冷凍設備及熱處理工藝監測。37
產品優勢
相比傳統裝配式鉑電阻，該型號直徑更�。ㄗ钚】蛇_(dá)φ3mm），長度可根據需求定制，安裝靈活性更高。不銹鋼護套和密封結構設計增強了防潮、防塵性能，確保在潮濕或多粉塵環境中穩定工作。產品提供單支或雙支規格，雙支型號采用三線制引線，便于冗余備份或多點測量。911
Introduction
The WZPK-105S sheathed platinum resistor is a precision temperature sensor with a stainless steel sheath and magnesium oxide insulation, designed for demanding industrial environments. It supports direct connection to secondary instruments via copper wires, delivering stable signals for temperature monitoring within a range of -200°C to 500°C. Its compact design suits confined spaces while maintaining high durability.58
Key Features
Featuring a platinum sensing element, this model offers rapid response (e.g., 8s for φ5mm diameter) and bendable structure for flexible installation. The anti-vibration and pressure-resistant design (up to 40V) ensures reliability in harsh conditions, with oxidation-resistant materials extending service life. The slim profile (from φ3mm) adapts to micro-scale equipment.612
Applications
Ideal for petroleum, power generation, and food processing industries, it excels in high-temperature pipelines, reactors, or corrosive media. Compatible with displays, data loggers, and control systems, it facilitates real-time temperature tracking in boilers, refrigeration units, and thermal treatment processes.37
Advantages
Compared to conventional models, the WZPK-105S provides superior flexibility with customizable lengths and dual-element options (3-wire configuration). The sealed sheath enhances resistance to moisture and dust, ensuring consistent performance in humid or dusty settings. Its robust construction minimizes maintenance needs.911
鎧裝鉑電阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，鎧裝鉑電阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
鎧裝鉑電阻是一種溫度傳感器，它比裝配式鉑電阻直徑小，易彎曲，抗震性好，適宜安裝在裝配式鉑電阻無法安裝的場合。本公司生產的WZPK系列鎧裝鉑電阻采用引進鉑電阻測溫元件，因此，具有精確、靈敏、熱響應時間快、質量穩定、使用壽命長等特點。
特點
★ 熱響應時間短，減小動態誤差
★ 直徑小，長度不受限制
★ 測量精確度高
★ 進口薄膜電阻元件，性能可靠穩定
工作原理
鎧裝鉑電阻是利用物質在溫度變化時，其電阻值也隨著發生變化的特征來測量溫度的，當阻值變
化時，工作儀表便顯示出阻值所對應的溫度值。
|
