鎧裝鉑電阻WZPK-134U 價格
產品概述（中英文）

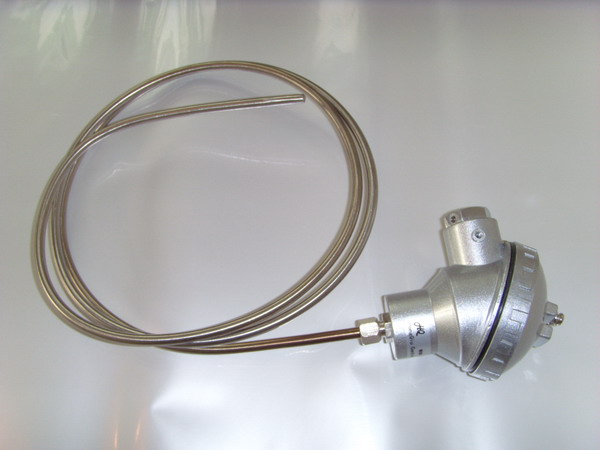

鎧裝鉑電阻WZPK-134U是一款高性能溫度傳感器，專為狹窄空間和快速響應場景設計。其直徑小、易彎曲的特性使其能靈活安裝于管道或設備中難以觸及的位置，同時具備優異的抗震性能。該產品采用不銹鋼保護套管和高密度氧化絕緣材料，確保在惡劣環境中仍能穩定工作，適用于-200℃至+500℃范圍的溫度測量。其輸出信號可直接連接顯示儀、記錄儀或控制系統，為工業自動化提供精確的溫度數據支持。115
The WZPK-134U armored platinum resistance thermometer is a high-performance temperature sensor designed for confined spaces and rapid response scenarios. Its compact diameter and flexible structure allow easy installation in hard-to-reach areas of pipelines or equipment, while maintaining excellent vibration resistance. With a stainless steel protective sheath and high-density oxide insulation, it ensures stable operation in harsh environments, suitable for temperature measurement ranging from -200℃ to +500℃. Its output signal can be directly connected to displays, recorders, or control systems, providing accurate temperature data for industrial automation.
技術特點（中英文）
WZPK-134U采用薄膜鉑電阻元件，熱響應時間短，可顯著減少動態誤差。其核心元件通過激光噴濺技術制成，具備良好的防沖擊性和穩定性。產品支持三線制或四線制接線，絕緣電阻大于100MΩ，確保信號傳輸?shù)目煽啃浴４送�，測量電流不超過5mA，避免了自熱效應引起的溫升問題（≤0.3℃），適用于長期連續監測。117
The WZPK-134U features a thin-film platinum resistance element with fast thermal response to minimize dynamic errors. The core component is manufactured via laser sputtering technology, ensuring impact resistance and long-term stability. It supports 3-wire or 4-wire connections with insulation resistance exceeding 100MΩ for reliable signal transmission. The low measurement current (≤5mA) prevents self-heating effects (temperature rise ≤0.3℃), making it ideal for continuous monitoring.
應用場景（中英文）
該產品廣泛應用于石油化工、電力、環保等行業的溫度監測，尤其適合高溫高壓或腐蝕性介質環境。例如，可集成于污水處理系統、液化氣加氣站設備或工業反應器中，其微型化設計也適用于實驗室精密儀器和醫療設備。通過銅導線與二次儀表連接，可靈活適配多種數據采集需求。213
The WZPK-134U is widely used in temperature monitoring for industries such as petrochemicals, power generation, and environmental protection, especially in high-temperature/pressure or corrosive environments. Examples include integration into wastewater treatment systems, LPG refueling stations, or industrial reactors. Its miniaturized design also suits laboratory instruments and medical equipment. Compatible with copper wire connections to secondary instruments, it adapts to diverse data acquisition requirements.
產品優勢（中英文）
與傳統裝配式鉑電阻相比，WZPK-134U在機械強度和抗污染性方面表現突出。其不銹鋼鎧裝結構有效抵抗機械應力，而內部絕緣材料可防止介質滲透。用戶可根據需求選擇防水式接線盒或固定法蘭等配置，滿足不同安裝條件。產品的一致性良好，偏差小，適合高精度溫度控制場景。420
Compared to traditional assembled platinum resistors, the WZPK-134U excels in mechanical strength and contamination resistance. Its stainless steel armored structure withstands mechanical stress, while internal insulation prevents media penetration. Users can select configurations like waterproof junction boxes or fixed flanges to match installation conditions. With minimal deviation and consistent performance, it meets high-precision temperature control needs.
鎧裝鉑電阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，鎧裝鉑電阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
鎧裝鉑電阻是一種溫度傳感器，它比裝配式鉑電阻直徑小，易彎曲，抗震性好，適宜安裝在裝配式鉑電阻無法安裝的場合。本公司生產的WZPK系列鎧裝鉑電阻采用引進鉑電阻測溫元件，因此，具有精確、靈敏、熱響應時間快、質量穩定、使用壽命長等特點。
特點
★ 熱響應時間短，減小動態誤差
★ 直徑小，長度不受限制
★ 測量精確度高
★ 進口薄膜電阻元件，性能可靠穩定
工作原理
鎧裝鉑電阻是利用物質在溫度變化時，其電阻值也隨著發生變化的特征來測量溫度的，當阻值變
化時，工作儀表便顯示出阻值所對應的溫度值。
|
