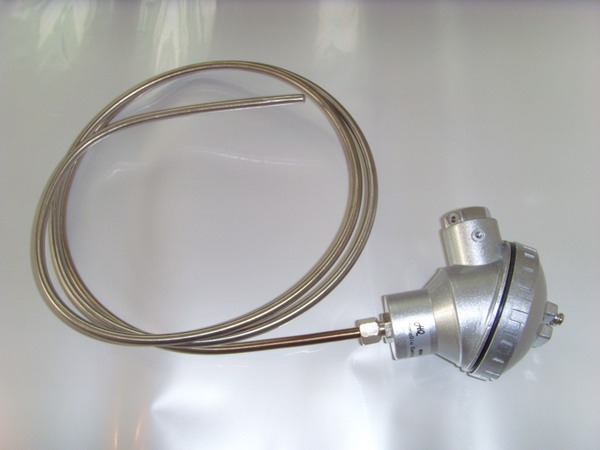

鎧裝鉑電阻WZPK2-126SA 供應
產品概述
鎧裝鉑電阻WZPK2-126SA是一種高精度溫度傳感器，采用鉑電阻測溫元件，具有快速響應、穩定可靠和使用壽命長的特點。其不銹鋼外保護套管設計增強了抗污染能力和機械強度，適合在惡劣環境中安裝。該產品可測量-200℃至500℃范圍內的溫度，廣泛應用于工業自動化、能源、環保等領域。
核心優勢
WZPK2-126SA直徑小且可彎曲，便于在狹窄或復雜空間安裝，同時抗震性能優異。熱響應時間短，能快速捕捉溫度變化，動態誤差小。產品內部填充高密度氧化絕緣材料，確保電氣隔離和長期穩定性。支持直接通過銅導線與二次儀表連接，為顯示儀、記錄儀及計算機系統提供精確的溫度信號輸入。
應用場景
適用于石油化工、電力設備、暖通空調等領域的溫度監測與控制。其適應性強的特點使其可用于管道、反應釜及小型設備中，滿足多樣化安裝需求。
Technical Overview
The WZPK2-126SA armored platinum resistance thermometer is a high-precision temperature sensor featuring a platinum RTD element, known for rapid response, stability, and durability. Its stainless steel sheath enhances resistance to contamination and mechanical stress, making it suitable for harsh environments. It covers a temperature range of -200°C to 500°C and is widely used in industrial automation, energy, and environmental protection.
Key Features
With a compact and bendable design, the WZPK2-126SA facilitates installation in confined or complex spaces while maintaining excellent vibration resistance. Its fast thermal response minimizes dynamic errors. The internal high-density oxide insulation ensures electrical isolation and long-term reliability. It connects directly to secondary instruments via copper wires, providing accurate temperature signals for displays, recorders, and computer systems.
Applications
Ideal for temperature monitoring and control in petrochemicals, power equipment, and HVAC systems. Its versatility allows installation in pipelines, reactors, and compact machinery, addressing diverse operational needs.
引用來源整合自產品功能與特性描述 12461316
鎧裝鉑電阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，鎧裝鉑電阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
鎧裝鉑電阻是一種溫度傳感器，它比裝配式鉑電阻直徑小，易彎曲，抗震性好，適宜安裝在裝配式鉑電阻無法安裝的場合。本公司生產的WZPK系列鎧裝鉑電阻采用引進鉑電阻測溫元件，因此，具有精確、靈敏、熱響應時間快、質量穩定、使用壽命長等特點。
特點
★ 熱響應時間短，減小動態誤差
★ 直徑小，長度不受限制
★ 測量精確度高
★ 進口薄膜電阻元件，性能可靠穩定
工作原理
鎧裝鉑電阻是利用物質在溫度變化時，其電阻值也隨著發生變化的特征來測量溫度的，當阻值變
化時，工作儀表便顯示出阻值所對應的溫度值。
|
