可動式熱電阻WZP-421 價格
產品概述

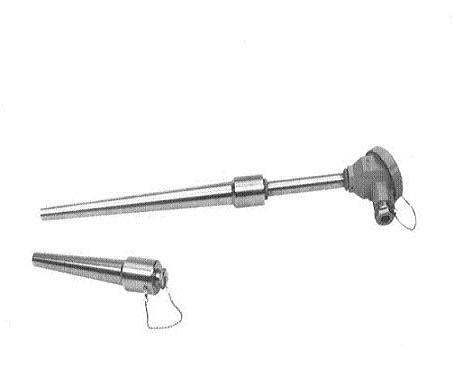

可動式熱電阻WZP-421是一款高精度的溫度傳感器，專為工業測溫需求設計。該產品采用優質不銹鋼保護管和鉑電阻感溫元件，能夠直接測量-200℃至500℃范圍內的液體、蒸汽、氣體介質及固體表面溫度。其裝配式結構設計靈活，支持多種安裝方式，便于現場調試與維護。產品具有抗振性能強、機械耐壓性好、熱響應速度快（典型值5秒）等特點，廣泛應用于石油、化工、電力、冶金等領域的溫度監測與控制系統中。11114
核心特點
WZP-421采用壓簧式感溫元件，有效減少機械振動對測量精度的影響。感溫元件通過細金屬絲雙繞絕緣骨架工藝制成，確保溫度梯度測量的一致性。保護管材質可選1Cr18Ni9Ti或0Cr18Ni12Mo2Ti不銹鋼，適應不同腐蝕性環境。產品支持防濺式或防水式接線盒，防護等級滿足工業現場需求。此外，用戶可根據實際需求選擇單支或雙支感溫元件配置，雙支型號適用于需同步顯示或冗余控制的場合。21219
技術參數
測溫范圍覆蓋-200℃至420℃（Pt100分度號），在-200~650℃范圍內精度可達±(0.15+0.002|t|)℃。常溫絕緣電阻≥100MΩ（測試電壓10-100VDC），最大允許工作電流5mA（溫升≤0.3℃）。熱響應時間T0.5≤30秒（常規配置），最小插入深度為保護管直徑的8-10倍。公稱壓力最高可達10MPa（視保護管規格而定），適用于管道及壓力容器安裝。42325
應用場景
該產品特別適合需要頻繁調整安裝位置的工況，如反應釜溫度監測、蒸汽管道巡檢等。在食品加工領域，其衛生型設計便于清潔；在核電行業，穩定性能滿足長期運行要求。典型配套設備包括DCS系統、記錄儀及PLC控制器，通過銅導線直接連接，輸出電阻信號與溫度呈線性關系。152022
服務與定制
提供多種規格選擇，保護管直徑可選12mm或16mm，長度支持300-900mm定制。支持三線制接線方式以消除引線電阻誤差，并提供安裝法蘭、螺紋等附件選項。用戶可根據介質特性選擇薄膜式或鎧裝感溫元件，滿足特殊場景的快速響應要求。51729
English Version
Product Overview
The movable thermal resistor WZP-421 is a precision temperature sensor designed for industrial applications. Featuring stainless steel protection tubes and platinum sensing elements, it measures temperatures from -200°C to 500°C in liquids, vapors, gases, and solid surfaces. Its modular design allows flexible installation with options for vibration-resistant configurations and quick maintenance. Ideal for petrochemical, power generation, and metallurgical industries, it delivers fast thermal response (typically 5s) and robust pressure resistance.114
Key Features
Equipped with spring-loaded sensing elements, the WZP-421 minimizes measurement drift caused by mechanical shocks. The dual-wire winding technique on insulated frames ensures uniform temperature gradient detection. Customizable protection tubes (1Cr18Ni9Ti/0Cr18Ni12Mo2Ti) accommodate corrosive environments, while IP-rated junction boxes (splash-proof/waterproof) enhance field reliability. Dual-element versions are available for redundant monitoring systems.212
Specifications
With a measuring range of -200°C to 420°C (Pt100), its accuracy reaches ±(0.15+0.002|t|)°C (-200~650°C). Insulation resistance exceeds 100MΩ (10-100VDC), and maximum allowable current is 5mA (ΔT≤0.3°C). The thermal time constant T0.5 is ≤30s (standard), with minimum insertion depth at 8-10 times the tube diameter. Pressure rating up to 10MPa suits pipeline and vessel installations.425
Applications
Designed for dynamic environments requiring positional adjustments, it excels in reactor monitoring, steam line inspections, and hygienic food processing. Its stable performance meets long-term nuclear plant operations. Compatible with DCS, PLCs, and chart recorders, it provides linear resistance-to-temperature output via direct copper wiring.1522
Customization & Support
Multiple configurations include 12mm/16mm tube diameters and 300-900mm lengths. Three-wire connection eliminates lead resistance errors, with optional flanges/threads for mounting. Thin-film or sheathed elements are available for specialized rapid-response requirements.517
