產品概述

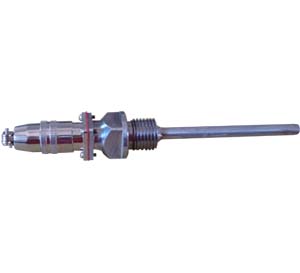

熱電阻WZP2-130B是一款工業級溫度傳感器，采用優質鉑電阻元件作為核心測溫組件，適用于-200℃至420℃范圍內的液體、蒸汽、氣體介質及固體表面溫度的精確測量。該產品設計符合行業通用規范，具有裝配式結構，便于安裝維護，接線盒采用不銹鋼材質，提供防濺或防水保護（根據型號后綴區分），可廣泛應用于電力、石油、化工、冶金等工業場景。其雙支結構支持同時輸出兩組獨立電阻信號，滿足多通道溫度監測需求。11320
技術特性
產品采用薄膜鉑電阻技術，測溫精度達B級標準（±0.3℃或±0.005|t|），感溫元件通過雙層絕緣工藝處理，常溫絕緣電阻≥100MΩ。保護管可選1Cr18Ni9Ti不銹鋼等材質，直徑通常為16mm，機械強度高且耐腐蝕。熱響應時間根據保護管結構分為10-90秒多檔可選，最小插入深度建議為保護管外徑的8-10倍。工作電流限制為5mA以降低自熱效應，溫升不超過0.3℃。產品支持三線制接線方式，有效消除導線電阻誤差。101821
應用場景
WZP2-130B特別適用于需要冗余測量的關鍵工況，如發電機組軸承溫度監測、化工反應釜多點溫控、管道流體溫度追蹤等。其穩定性能可與顯示儀表、記錄儀、PLC系統直接配套使用，實現生產流程的自動化溫度管理。典型安裝方式包括螺紋固定（M27×2或M33×2規格）或法蘭安裝，用戶需根據介質特性選擇保護管材質及插入深度。3826
Product Introduction (英文部分)
The WZP2-130B industrial RTD is a dual-element platinum resistance thermometer designed for reliable temperature measurement in harsh environments. With a standard Pt100 sensing element, it delivers accurate readings across -200°C to +420°C range. The modular assembly structure features replaceable components including stainless steel junction boxes (splash-proof or waterproof) and oxidation-resistant protection tubes, ensuring long-term stability in petrochemical, power generation and metallurgical applications. Its twin independent channels allow simultaneous data transmission to multiple control systems.122
Key Features
This RTD utilizes thin-film platinum technology with class B accuracy (±0.3°C or ±0.005|t|). The hermetically sealed sensing assembly exhibits >100MΩ insulation resistance at 100VDC. Standard 16mm OD protection tubes withstand 1.5x rated pressure, while the 3-wire configuration eliminates lead resistance errors. Customizable insertion lengths (L=XXmm) and process connections (NPT/G螺紋) adapt to various installation requirements. The 5mA current limit ensures minimal self-heating effect during continuous operation.121924
Typical Applications
Ideal for dual-redundancy temperature monitoring in turbines, reactors and pipelines. Compatible with most PLC/DCS systems through direct resistance output or via temperature transmitters. Recommended for steam lines (-30~420°C), hydraulic oil tanks (-50~150°C) and solid surface measurements. Installation notes: For pipe mounting, insert length should reach centerline; avoid excessive vibration locations.41527
熱電阻
MWFT-1，MWFT-2，MWFT-3，WZP-120B，WZP-121B，WZP-130B，WZP-131B，WZP2-120B，WZP2-121B，WZP2-130B，WZP2-131B，WZC-120B，WZC-130B，WZP-220B，WZP-221B，
WZP-230B，WZP-231B，WZP2-220B，WZP2-221B，WZP2-230B，WZP2-231B，WZP-220ABWZP2-220AB，WZC-220B，WZC-120B，
熱電阻是中低溫區常用的一種溫度檢測器。它的主要特點是測量精度高，性能穩定。其中鉑熱電阻的測量精確度是高的，它不僅廣泛應用于工業測溫，而且被制成標準的基準儀。
主要特點
簧式感溫元件，抗振性能好；
•測溫精度高；
•機械強度高，耐高溫耐壓性能好；
•進口薄膜電阻元件，性能可靠穩定。
工作原理
熱電阻的測溫原理是基于導體或半導體的電阻值隨著溫度的變化而變化的特性。熱電阻大都由純金屬材料制成，目前應用多的是鉑和銅，現在已開始采用鎳、錳和銠等材料制造熱電阻。熱電阻通常需要把電阻信號通過引線傳遞到計算機控制裝置或者其它二次儀表上。
|
