WZP2-220B 工業用鉑熱電阻中英文產品介紹
產品概述
WZP2-220B 鉑熱電阻是一款專為工業溫度測量場景設計的高精度測溫元件。產品采用優質鉑絲作為感溫材料，結合先進的封裝工藝，能夠在復雜工況下實現長期穩定的溫度信號采集。其結構設計兼顧防護性與靈活性，適用于多種設備安裝需求，是工業自動化控制系統中溫度監控環節的理想選擇。
核心優勢
- 高精度測量：鉑電阻元件線性度優異，測溫范圍覆蓋-200℃至+500℃，可滿足大部分工業場景需求。
- 環境適應性：不銹鋼保護管材質（可選304/316L）配合雙層密封結構，有效抵御腐蝕性介質、粉塵及潮濕環境影響。
- 快速響應：優化設計的感溫端結構縮短了熱響應時間，確保設備及時反饋溫度變化。
- 安裝便捷：提供多種接口規格（如螺紋連接、法蘭固定），適配不同設備安裝標準，降低改造難度。
典型應用領域
- 石油化工：反應釜、管道介質溫度監測
- 電力能源：鍋爐系統、汽輪機溫度保護
- 冶金制造：熔爐、熱處理設備溫控
- 制藥/食品：潔凈環境下的工藝溫度管理
技術參數
| 項目 |
參數 |
| 分度號 |
Pt100 |
| 測溫范圍 |
-200℃ ~ +500℃ |
| 精度等級 |
Class A/B（可選） |
| 保護管材質 |
不銹鋼304/316L |
| 接線方式 |
兩線制/三線制 |
| 防護等級 |
IP65（可選更高） |
服務支持
我們提供定制化設計方案，可根據客戶需求調整保護管長度、插入深度及接線盒形式（防水型、防爆型）。專業工程師團隊全程提供選型指導與售后技術支持，確保設備快速投入使用。

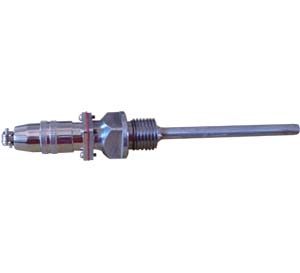

WZP2-220B Industrial Platinum RTD Bilingual Introduction
Product Overview
The WZP2-220B Platinum Resistance Thermometer is a high-precision temperature sensing component engineered for industrial applications. Utilizing premium platinum wire as the sensing element and advanced encapsulation technology, it delivers reliable temperature data acquisition even in harsh operating conditions. Its versatile mechanical design balances robust protection with flexible installation options, making it an optimal solution for temperature monitoring in industrial automation systems.
Key Advantages
- Precision Measurement: Platinum element ensures excellent linearity with a wide operating range (-200℃ to +500℃).
- Environmental Resistance: Stainless steel sheath (304/316L optional) with dual-layer sealing effectively resists corrosion, dust, and moisture.
- Rapid Response: Optimized tip structure accelerates thermal equilibrium for real-time feedback.
- Easy Integration: Multiple interface options (threaded, flanged) simplify retrofitting into existing equipment.
Typical Applications
- Petrochemical: Reactor vessel & pipeline temperature monitoring
- Power Generation: Boiler systems & turbine protection
- Metallurgy: Furnace & heat treatment control
- Pharma/Food: Process temperature management in cleanrooms
Technical Specifications
| Parameter |
Value |
| Sensor Type |
Pt100 |
| Temperature Range |
-200℃ ~ +500℃ |
| Accuracy Class |
Class A/B (optional) |
| Sheath Material |
SS304/316L |
| Wiring Configuration |
2-wire/3-wire |
| Protection Rating |
IP65 (upgradable) |
Service Commitment
Customized solutions are available for sheath length, insertion depth, and junction box types (waterproof/explosion-proof). Our engineering team provides lifecycle support from product selection to post-installation troubleshooting, ensuring seamless integration with your systems.
