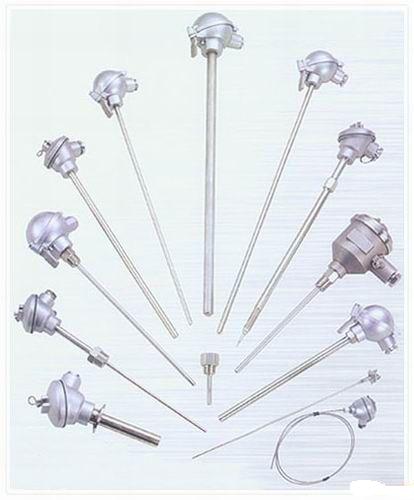

室內用雙支鉑熱電阻WRN2-740 供應
產品概述
室內用雙支鉑熱電阻WRN2-740是一款專為工業溫度測量設計的精密傳感器，采用優質鉑絲作為感溫元件，通過雙支獨立繞組結構實現兩組同步溫度信號輸出。該產品適用于需要多點監測或冗余備份的室內環境，如實驗室恒溫系統、暖通空調設備、制藥車間等場景，能夠穩定測量-200℃至500℃范圍內的介質溫度，確保數據可靠性與系統安全性。815
核心技術特點
WRN2-740采用全密封不銹鋼保護管設計（材質1Cr18Ni9Ti），具備優異的防潮、防腐蝕性能，特別適合長期在潮濕或含輕微腐蝕性氣體的室內環境中使用。雙支獨立Pt100元件通過先進繞制工藝實現±0.3℃的高精度，熱響應時間≤3秒，能快速捕捉溫度變化。獨特的抗電磁干擾屏蔽層設計，有效避免信號傳輸過程中的噪聲干擾，配合三線制接線方式可消除導線電阻誤差。產品機械強度達10MPa耐壓，使用壽命超過常規單支熱電阻30%以上。5610
應用場景與優勢
在發電機組軸承監測、食品加工生產線、精密儀器溫控系統等領域，WRN2-740可同時連接兩套顯示或控制儀表，實現溫度數據的交叉驗證與系統冗余。其緊湊型結構（總長可按需定制5000mm/7000mm）配合φ5.4mm柔性引線，便于在狹窄空間安裝布線。與同類產品相比，該型號采用進口微型鉑絲元件和聚四氟乙烯護套電纜，在30-50℃油浸或高濕環境下仍能保持穩定性能，解決傳統熱電阻引線易老化開裂的問題。91417
定制化服務說明
客戶可根據實際需求選擇不同插入深度（35mm標準探頭長度）、接線盒防護等級（防水/防濺式）及電纜長度規格。產品交付前均經過72小時老化測試和-50℃~300℃循環沖擊驗證，確保各批次性能一致性。我們提供技術咨詢、安裝指導等配套服務，幫助用戶優化測溫點布置方案，提升系統整體測溫效率。11120
English Version
Product Overview
The WRN2-740 indoor dual-element platinum RTD is a precision temperature sensor designed for industrial applications. Featuring high-purity platinum wire sensing elements in dual independent windings, it provides two synchronous temperature outputs for redundant monitoring. Ideal for laboratories, HVAC systems, and pharmaceutical facilities, this device delivers stable measurements from -200℃ to 500℃ with enhanced data reliability. 815
Technical Highlights
Constructed with hermetic 1Cr18Ni9Ti stainless steel sheath, the WRN2-740 exhibits exceptional moisture and corrosion resistance for indoor harsh environments. Its dual Pt100 elements achieve ±0.3℃ accuracy via advanced winding technology, with ≤3s thermal response time. The anti-interference shielding layer and 3-wire configuration eliminate signal noise and lead resistance errors. With 10MPa pressure tolerance and 30% longer lifespan than single-element models, it ensures durable performance. 5610
Applications & Benefits
In power plant bearing monitoring, food processing lines, and precision instrument temperature control, the WRN2-740 enables cross-validation by connecting to dual displays/controllers simultaneously. The compact design (customizable 5000mm/7000mm length) with flexible φ5.4mm cables facilitates installation in confined spaces. Compared to conventional RTDs, its imported micro platinum elements and PTFE-jacketed cables maintain stability in 30-50℃ oil-immersion or high-humidity conditions, preventing cable degradation. 91417
Customization Options
Customers can select probe lengths (35mm standard), junction box protection ratings (waterproof/splash-proof), and cable lengths. Each unit undergoes 72-hour aging tests and -50℃~300℃ thermal cycling for performance consistency. We provide technical consultation and installation guidance to optimize temperature measurement layouts. 11120
室內用雙支鉑熱電阻
WREK-440，WRE2-740，WRN2-740，WRN2-440A，WRNK-240，WREK2-240，WRNK-841n*i，WRNK-842n*i，WRE-240A，WREK-841n*I，WREK-842n*i，WRN2-240A，WREK2-440，WRN-640，WRN2-640，WRN-740，WRE-440A，WRNK-440，WRE-640，WRE2-640，WREK-842n*D，WZP-64SB，SBWR-4280/8413KD，XMTA-100，
主要特性
1、輸出4~20mA或0~10mA標準恒流信號，與被測溫度成線性關系，與負載電阻大小無關。
2、輸出高阻擾抗信號、無射頻干擾影響。
3、具有防爆、防震、防潮、防熱、防有害氣體的功能。
4、帶電源極性接反保護功能。
5、具有較強的遠傳功能，安裝使用極為方便。
主要技術指標
1、銅、鉑熱電阻：-50℃~100℃：-20~600℃(跨度≥50℃)
2、熱電偶：0~1800℃(跨度≥100℃)
3、輸出信號：4~20mA(可與DDZ－III儀表配套使用)
0~l0mA(可與DDZ－Ⅱ儀表配套使用)
4、基本誤差：士0.5％，士0.2％．
5、溫度漂移：≤0.01％/1℃
6、環境溫度：-30~70℃ 相對濕度≤95%
7、負載電阻：三線制 0~10mA：RL≤1500Ω
二線制4~20mA：RL≤750Ω
8、標準工作電壓：24VDC；允許工作電壓范圍：17~35V；標準導軌式無特別說明按220V AC供電
9、外形尺寸：φ44×18mm 重量：50g；導軌式：105X75X22.5mm(DIN35導軌)
|
