WRNK-841N*I 型鉑熱電阻產品介紹
中文介紹
WRNK-841N*I 型鉑熱電阻是一種適用于室內環境的高精度溫度測量元件。它采用優質鉑材料制成，具有良好的穩定性和可靠性，能夠在較寬的溫度范圍內提供精確的溫度測量數據。該產品設計精巧，結構緊湊，安裝方便，能夠輕松集成到各種室內溫度監測系統中。
鉑熱電阻的工作原理基于鉑材料的電阻值隨溫度變化的特性。當溫度升高時，鉑的電阻值會相應增加，通過測量電阻值的變化，即可精確計算出當前的溫度值。WRNK-841N*I 型鉑熱電阻具有較高的測量精度和良好的線性度，能夠滿足室內環境溫度監測的高精度要求。
在設計上，該產品充分考慮了室內使用環境的特點。其外殼采用耐腐蝕、耐高溫的材料制成，能夠有效保護內部元件免受外界環境的影響。同時，產品還具備良好的防潮性能，能夠在潮濕的室內環境中穩定工作，確保測量數據的準確性和可靠性。
此外，WRNK-841N*I 型鉑熱電阻還具有良好的兼容性，能夠與多種溫度顯示儀表、數據采集系統以及自動化控制系統配合使用，為用戶提供靈活的溫度監測解決方案。無論是在工業廠房、實驗室、數據中心，還是在商業建筑、智能家居等領域，該產品都能發揮重要作用，為用戶提供可靠的溫度測量支持。
總之，WRNK-841N*I 型鉑熱電阻憑借其出色的性能和廣泛的應用范圍，是室內溫度測量的理想選擇。
English Introduction
The WRNK-841N*I platinum resistance thermometer is a high-precision temperature measurement element designed for indoor use. Made from high-quality platinum, it offers excellent stability and reliability, providing accurate temperature measurement data over a wide temperature range. This product is designed with a compact structure and is easy to install, making it easy to integrate into various indoor temperature monitoring systems.
The working principle of the platinum resistance thermometer is based on the characteristic that the resistance value of platinum changes with temperature. As the temperature rises, the resistance value of platinum increases accordingly. By measuring the change in resistance value, the current temperature can be accurately calculated. The WRNK-841N*I platinum resistance thermometer has high measurement accuracy and good linearity, meeting the high-precision requirements for indoor temperature monitoring.
In terms of design, this product takes into full consideration the characteristics of indoor use environments. Its casing is made of corrosion-resistant and high-temperature-resistant materials, effectively protecting the internal components from external environmental influences. At the same time, the product also has good moisture-proof performance, allowing it to work stably in humid indoor environments and ensuring the accuracy and reliability of measurement data.
Moreover, the WRNK-841N*I platinum resistance thermometer has good compatibility and can be used in conjunction with a variety of temperature display instruments, data acquisition systems, and automation control systems, offering users a flexible temperature monitoring solution. Whether in industrial plants, laboratories, data centers, commercial buildings, or smart homes, this product can play an important role and provide reliable temperature measurement support.
In summary, the WRNK-841N*I platinum resistance thermometer, with its outstanding performance and wide range of applications, is an ideal choice for indoor temperature measurement.

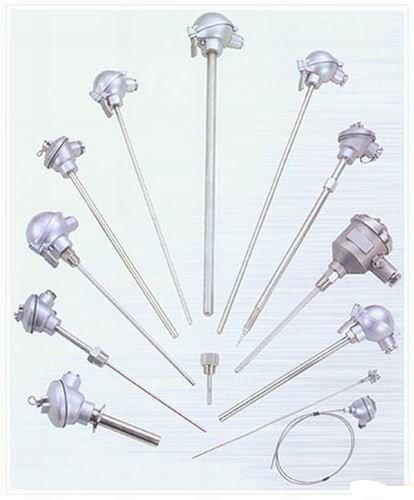

室內用雙支鉑熱電阻
WREK-440，WRE2-740，WRN2-740，WRN2-440A，WRNK-240，WREK2-240，WRNK-841n*i，WRNK-842n*i，WRE-240A，WREK-841n*I，WREK-842n*i，WRN2-240A，WREK2-440，WRN-640，WRN2-640，WRN-740，WRE-440A，WRNK-440，WRE-640，WRE2-640，WREK-842n*D，WZP-64SB，SBWR-4280/8413KD，XMTA-100，
主要特性
1、輸出4~20mA或0~10mA標準恒流信號，與被測溫度成線性關系，與負載電阻大小無關。
2、輸出高阻擾抗信號、無射頻干擾影響。
3、具有防爆、防震、防潮、防熱、防有害氣體的功能。
4、帶電源極性接反保護功能。
5、具有較強的遠傳功能，安裝使用極為方便。
主要技術指標
1、銅、鉑熱電阻：-50℃~100℃：-20~600℃(跨度≥50℃)
2、熱電偶：0~1800℃(跨度≥100℃)
3、輸出信號：4~20mA(可與DDZ－III儀表配套使用)
0~l0mA(可與DDZ－Ⅱ儀表配套使用)
4、基本誤差：士0.5％，士0.2％．
5、溫度漂移：≤0.01％/1℃
6、環境溫度：-30~70℃ 相對濕度≤95%
7、負載電阻：三線制 0~10mA：RL≤1500Ω
二線制4~20mA：RL≤750Ω
8、標準工作電壓：24VDC；允許工作電壓范圍：17~35V；標準導軌式無特別說明按220V AC供電
9、外形尺寸：φ44×18mm 重量：50g；導軌式：105X75X22.5mm(DIN35導軌)
|
