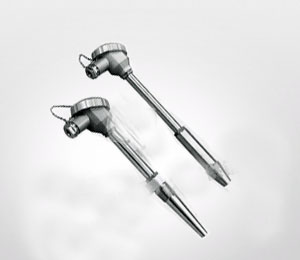

WZPN2-330型套管式熱電阻產品說明
產品概述
WZPN2-330型套管式熱電阻是專為工業過程溫度檢測設計的測量裝置，采用模塊化結構設計，適用于多種復雜工況環境。傳感器核心部件由特種合金材料制成，通過真空封裝工藝確保測量單元的穩定性和抗干擾能力。產品主體配置可拆卸式防護套管，支持在線維護和部件更換，有效降低使用成本。
結構特性
設備采用分體式鎧裝結構，測溫元件與保護套管實現物理隔離設計，顯著提升機械強度和介質兼容性。防護套管提供316不銹鋼、哈氏合金等多種材質選擇，最高耐受壓力可達35MPa。接線盒采用工程塑料材質，配備多層密封結構，防護等級達到IP65要求，可適應戶外惡劣環境下的連續工作。標準配置提供M27×2螺紋或DN25法蘭兩種安裝方式，支持垂直、水平及傾斜安裝。
技術參數
測量范圍：-200℃~+800℃（具體依據套管材質）
熱響應時間：τ0.5≤8s（液體介質環境）
絕緣電阻：常溫下≥100MΩ（500VDC）
耐振性能：20m/s²（10Hz~150Hz三向振動）
應用領域
本產品廣泛應用于石油煉化裝置、火力發電機組、工業鍋爐系統、化工反應設備等場景的溫度監控，特別適合存在介質沖刷、強烈振動或壓力脈動的測量點位。采用防濺型接線腔體設計，確保在潮濕多塵環境下的可靠連接。
選型指導
建議根據介質特性選擇匹配的套管材質：常規工況可選304不銹鋼；強腐蝕環境推薦鈦合金TA2材質；高溫高壓場景建議選用Inconel 600合金。對于存在氣蝕風險的安裝位置，可選用錐形套管結構增強耐用性。
注意事項
安裝時應確保測溫元件插入深度≥100mm，避開介質流動死區。定期檢查密封部件狀態，建議每12個月進行零點校準。嚴禁在超出規定壓力或溫度范圍的環境中使用，運輸過程需做好防震防護。
WZPN2-330 Sheath Thermometer Product Description
Product Overview
The WZPN2-330 sheath-type resistance thermometer is engineered for industrial process temperature monitoring, featuring modular construction adaptable to diverse operational environments. The sensing core, manufactured from specialty alloys, employs vacuum encapsulation technology to ensure measurement stability and anti-interference capability. The detachable protection sheath allows in-situ maintenance and component replacement, effectively reducing lifecycle costs.
Structural Features
Adopting a split armored design, the temperature-sensing element is physically isolated from the protective sheath, enhancing mechanical durability and media compatibility. Available sheath materials include 316 stainless steel and Hastelloy alloys, with pressure resistance up to 35MPa. The engineering plastic junction box incorporates multi-layer sealing, achieving IP65 protection for reliable outdoor operation. Standard configurations offer M27×2 threaded or DN25 flanged mounting, supporting vertical, horizontal, and angled installations.
Technical Specifications
Measurement range: -200℃~+800℃ (material-dependent)
Thermal response: τ0.5≤8s (in liquid media)
Insulation resistance: ≥100MΩ @500VDC (ambient)
Vibration resistance: 20m/s² (10Hz-150Hz triaxial)
Applications
This product is widely implemented in temperature monitoring systems for petroleum refining units, thermal power generators, industrial boilers, and chemical reactors. Its splash-proof terminal chamber design ensures reliable connections in humid/dusty environments, particularly suitable for measurement points with media erosion, vibration, or pressure fluctuations.
Selection Guidelines
Sheath material selection should correspond to media characteristics: 304 SS for general service, TA2 titanium for corrosive environments, and Inconel 600 for high-temperature/pressure applications. Tapered sheath configuration is recommended for installations subject to cavitation risks.
Installation Notes
Ensure minimum 100mm immersion depth in process media, avoiding flow stagnation zones. Perform seal integrity checks quarterly and zero-point calibration annually. Strictly observe specified pressure/temperature limits. Use shock-absorbing packaging during transportation.
