套管式熱電阻WZP-731 供應
產品概述

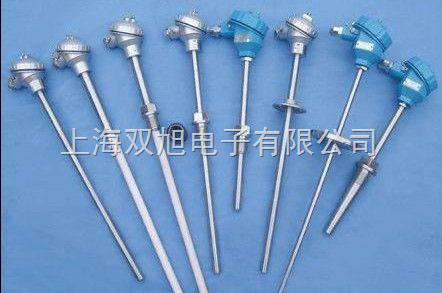

套管式熱電阻WZP-731是一種高精度溫度測量傳感器，專為工業環境設計，可直接測量氣體、液體及蒸氣介質的溫度。其結構采用錐形套管設計，配合法蘭固定方式，適用于發電廠管道及其他工業場景的長期穩定測溫需求。產品核心采用鉑電阻元件（Pt100分度號），測溫范圍覆蓋-200℃至500℃，響應速度快，機械強度高，能夠承受復雜工況下的壓力與流速影響。整體設計兼顧耐用性與安裝便捷性，滿足多樣化工業測溫需求。115
技術特點
WZP-731采用不銹鋼保護管材質（如304、316等可選），耐腐蝕且抗機械沖擊。其熱響應時間（T0.5）≤120秒，能快速捕捉溫度變化；常溫絕緣電阻≥100MΩ，確保信號傳輸穩定性。產品支持三線制或四線制接線，減少導線電阻誤差，提升測量精度。獨特的錐形套管結構可適應高流速介質（≤80m/s），并提供多種插入深度（75mm至500mm可選），滿足不同安裝場景需求。922
應用領域
該產品廣泛應用于電力、石化、冶金等行業，特別適用于鍋爐管道、蒸汽系統、反應容器等高溫高壓環境。其法蘭連接方式可無縫集成到現有設備中，同時防水接線盒設計增強了戶外或潮濕環境的適應性。此外，雙支熱電阻型號（WZP2-731）可同步輸出兩組信號，為冗余控制或數據校驗提供便利。106
產品優勢
WZP-731以可靠性為核心優勢，通過優化保護管結構與材料選擇，顯著延長了使用壽命。其模塊化設計便于維護更換，且無需頻繁校準。用戶可根據實際需求定制保護管材質、插入深度及連接方式，靈活性高。產品嚴格遵循工業測溫規范，確保長期運行下的數據準確性與一致性。1825
English Version
Product Overview
The WZP-731 sheathed RTD is a precision temperature sensor designed for industrial applications, capable of directly measuring gases, liquids, and vapors. Featuring a conical sheath and flange mounting, it excels in power plant pipelines and general industrial processes. With a Pt100 sensing element, it covers -200°C to 500°C, delivering fast response and robust performance under high-pressure or high-flow conditions. Its durable construction ensures long-term stability in harsh environments.115
Key Features
Constructed with stainless steel sheaths (304/316 optional), the WZP-731 resists corrosion and mechanical stress. Its thermal response time (T0.5) ≤120 seconds, while insulation resistance ≥100MΩ guarantees signal integrity. The 3-wire or 4-wire configuration minimizes lead resistance errors, enhancing accuracy. The conical sheath accommodates flows up to 80m/s, with customizable insertion depths (75mm–500mm) for flexible installation.229
Applications
Ideal for power generation, petrochemicals, and metallurgy, this RTD suits boilers, steam systems, and pressurized vessels. Flange integration simplifies retrofitting, and the waterproof junction box ensures outdoor durability. Dual-element versions (WZP2-731) provide redundant outputs for critical control or validation.610
Advantages
The WZP-731 prioritizes reliability through optimized materials and modular design, reducing maintenance needs. Customizable sheath options, lengths, and connections adapt to diverse requirements. Consistent accuracy aligns with industrial standards, making it a trusted solution for continuous temperature monitoring.1825
套管式熱電阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式熱電偶，作為溫度測量和控制的傳感器與顯示儀表配套，以直接測量和控制生產過程中氣體，液體和蒸氣的溫度。不僅用于發電廠管道測溫，同時也用于其他工業部門的測溫。
化工專用隔爆型熱電偶WRCK-502，WRCK-522，WRCK-532，WRCK-592，WRCK-582，WRCK2-521，WRCK2-531，WRCK2-522，WRCK2-532，WREK-1313，WREK-1314，WREK-1315，WREK-1316，WREK-1323，WREK-1324，WREK-1325，WREK-1326，WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRFK-281A, WRFK-181A., WRCK-281A, WRCK-181A, WREK-281A, WREK-181A, WRNK-281A, WRNK-181A, WZPM-202U, WZPM-201U, WRNM-202A, WZPM-101U, WZPM-102U, 化工專用熱電偶WREM-102A, WRNM-201A, WRNM-203A WRNN-436, WRNN2-436, WRN-420B, WRN-430B, WRN2-420B, WRN2-430B, WRE-420B, WRE-430B, WRE2-420B, WRE2-430B, WRN-420C, WRN-430C, WRN2-420C, WRN2-430C, WRE-420C, WRE-430C, WRE2-420C, WRE2-430C, WRN-420D, WRN-430D, WRN2-420D, WRN2-430D, WRE-420D, WRE-430D, WRE2-420D, 可動式熱電偶WRE2-430D, WZP-420B, WZP-421B, WZP-430B, WZP-431B, WZP2-420B, WZP2-421B, WZP2-430B, WZP2-431B, WZC-420B, WZC-430B, WZP-420C, WZP-421C, WZP-430C, WZP-431C, WZP2-420C, WZP2-421C, WZP2-430C, WZP2-431C, WZC-420C, WZC-430C, WZP-420D, WZP-421D, WZP-430D, WZP-431D, WZP2-420D, WZP2-421D, WZP2-430D, WZP2-431D, WZC-420D, WZC-430D.WRR-433Q, WRNR-93UC, WRER-93UC, WRNR2-93UC, WRER2-93UC, WRNT-001, WRNT2-001, 耐腐、耐磨熱電偶WRET-001, WRET2-001, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRER-13, WRNR2-13. WRER2-13. WRNR-14, WRER-14, WRNR2-14, WRER2-14, WRNR-15, WRER-15, WRNR2-15, WRER2-15, WRN-15A, WRER-15A, WRNR2-15A, WRER2-15A, WRNT-31, WRET-31, WRNT2-31, WRET2-31, 套管式熱電偶WRNK-841n﹡D, WRNK-842n﹡D, WREK-841n﹡D. WREK-842n﹡D, WRNK-841n﹡I, WRNK-842n﹡I, WREK-841n﹡I. WREK-842n﹡I, WREK-842n﹡I, WRN-240A, WRN2-240A, WRE-240A, WRE2-240A, WRN-640A,WRN2-640A,WRE-640A,WRE2-640A, WRN-440A,WRN2-440A, WRE-440A,WRE2-440A, WRNK-240, WRNK2-240, WREK-240, WREK2-240, WRNK-440, WRNK2-440, WREK-440, WREK2-440, WRN-74O,WRN2-74O, WRN-74O, WRN2-74O, WRNR-15, WRNR2-15, WRNR-15A, WRNR2-15A, WRER-15, WRER2-15, WRER-15A, WRER215A, WRN-624, WRN-625, WRE-624, WRE-625, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRNR2-13, WRER-13, WRER2-13,WRNR-14, WRNR2-14, WRER14, WRER2-14, WRN-631, WRN2-631, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRN-130, WRN2-130, WRN-230, WRN2-230, WRN-330, WRN2-330, WRN2-430, WRN-430, WRE-130, WRE2-130, 熱電偶 WRE-230, WRE2-230, WRE-330, WRE2-330, WRE-430, WRE2-430, WREK-1313, WREK-1314, WREK-1315, WREK-1316, WREK-1323, WREK-1324, WREK-1325, WREK-1326, WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRN-001, WRE-001. WRN-002, WRE-002, WRN-235T, WRN2-235T, WRE-235T, WRE2-235T, WRN-130-F, WRN-230-F, WRN-330-F, WRN-430-F, WRN2-130-F, WRN2-330-F, WRN2-430-F, WRE-130-F, WRE-230-F, WRE-330-F, WRE-430-F,WRE2-130-F,WRE2-230-F,WRE2-330-F.WRE2-430-F.WRN-130(*),WRN-230(*),WN-330(*),WN-430(*).,WRNN2-130(*),WNN2-230(*),WRNN2-330(*),WNN2-430(*),WREN-130, WREN-230, WREN-330, WREN-430, WREN2-130, WREN2-230, WREN2-330, WREN2-430, WRNN-530(*),WRNN2-530(*),WREN-530,WREN2-530,WRNN-631(*),WRNN2-631(*),WREN-631, WREN2-631, WRN-12B, WRE-12B, WRN2-12B, 裝配式熱電偶WRE2-12B, WRN-13B, WRE-13B, WRN2-13B, WRE2-13B, WRN-14B, WRE-14B, WRN2-14B, WRE2-14B, WRN-15B, WRE-15B, WRN2-15B, WRE2-15B, WRN-15AB, WRE-15AB, WRN2-15AB, WRE2-15AB, WRN-4318, WRE-4318,,WN2-4318, WRE2-4318, WRN-43C, WRE-43C, WRN2-43C, WRE2-43C, WRR-120, WRR-121, WRR2-120, WRR2-121, WRP-120, WRP-121, WRP2-120,,
|
