裝配式薄膜鉑熱電阻WZP2-010 價格
產品概述
裝配式薄膜鉑熱電阻WZP2-010是一款高精度溫度測量傳感器，采用先進的薄膜鉑電阻技術制造。該產品設計用于工業環境中液體、蒸汽和氣體介質的溫度測量，具有快速響應和穩定輸出的特點。產品結構由感溫元件、不銹鋼保護管、接線盒和固定裝置組成，采用模塊化裝配設計便于安裝維護。WZP2-010可提供雙支元件配置，能同時輸出兩組相同的電阻信號，滿足多點溫度監測需求。319
技術特點
WZP2-010采用薄膜鉑電阻作為核心感溫元件，通過精密濺射工藝將鉑材料附著在陶瓷基片上，具有優異的抗震性和溫度響應速度。產品工作溫度范圍覆蓋-200℃至420℃，在不同溫度區間均能保持線性輸出特性。不銹鋼保護管提供良好的機械強度和耐腐蝕性能，適用于多種工業環境。接線盒采用防水式設計，確保在潮濕工況下穩定工作。產品允許通過最大測量電流為5mA，自熱效應控制在0.3℃以內，保證測量準確性。128
應用領域
該產品廣泛應用于石油化工、電力能源、機械制造等行業的溫度監測系統。特別適合需要測量管道內介質溫度或設備表面溫度的場合。產品可與各類顯示儀表、記錄儀和控制系統配套使用，為自動化生產提供可靠的溫度數據。雙支元件設計使其適用于需要冗余備份或同步比較的重要測溫點。固定螺紋安裝方式便于在壓力容器和管道上進行標準化安裝。1124
Product Overview
The assembled thin-film platinum RTD WZP2-010 is a high-precision temperature sensor manufactured using advanced thin-film platinum technology. This product is designed for measuring liquid, steam and gas temperatures in industrial environments, featuring fast response and stable output. The modular assembly structure consists of sensing element, stainless steel sheath, connection head and mounting fixtures, providing convenient installation and maintenance. The WZP2-010 offers dual-element configuration capable of simultaneously outputting two identical resistance signals for multi-point temperature monitoring requirements. 1323
Key Features
Utilizing thin-film platinum as core sensing element, the WZP2-010 applies precision sputtering technology to deposit platinum material on ceramic substrate, delivering excellent vibration resistance and temperature response. The operational temperature range covers -200°C to 420°C with maintained linear output characteristics across intervals. Stainless steel protective tube provides good mechanical strength and corrosion resistance for various industrial environments. Waterproof connection head design ensures stable performance in humid conditions. With maximum measuring current limited at 5mA, the self-heating effect is controlled within 0.3°C to guarantee measurement accuracy. 415
Application Fields
This product finds wide applications in temperature monitoring systems for petroleum chemical, power energy and machinery manufacturing industries. It is particularly suitable for measuring medium temperature inside pipelines or equipment surface temperature. The sensor can be paired with various display instruments, recorders and control systems to provide reliable temperature data for automated production. Dual-element design makes it ideal for critical measurement points requiring redundancy or synchronous comparison. Standard threaded mounting facilitates installation on pressure vessels and pipelines. 1225
裝配式薄膜鉑熱電阻
WZP-621, WZP-631, WZP2-621, WZP2-631., WZP-621A, WZP2-621A, WZP-002 WZP-621A, WZP-631, WZP2-621, WZP2-621A, WZP2-631,, WZP-003, WZP-003A, WZP-010, WZP2-010, WZP-011, WZP2-011, WZC-010A, WZP-035S, WZC-001, WZC-200, WZP-260, WZP2-260, WZPM-267,WZP-269, WZP2-260, WZC-269, WZP-270, WZC-270, WZP-280, WZP-260, WZP2-260, WZP-269, WZP2-269, WZC-269, WZC-190, WZC-890J, WZP-892, WZP2-892, WZP2-3212A，WZP2-421B，SBWZ-2481/44SI，WRN-74S，WZPK-426S，WZP-3312A，WZPK2-326SA，WZP2-6312A，WZP-6312A，WZP2-24SA，WZP-24SA，WZP2-6212A，WZP-6212A，WZP-4312A，WZP-4212A，WZP2-3312A，WRNR-01，
概述
工業用薄膜鉑熱電阻作為新一代的溫度測量和調節傳感器，通常用來和顯示儀表等配套，以直接測量各種生產過程中-79℃～600℃范圍內液體，蒸汽和氣體介質及固定表面等溫度。 裝配式鉑電阻采用引進鉑電阻元件作測溫元件。因此，它具有良好的電輸出性能，可為顯示儀、記錄儀、調節儀、掃描儀、數據記錄儀以及電腦提供精確的溫度變化輸入信號。
結構原理

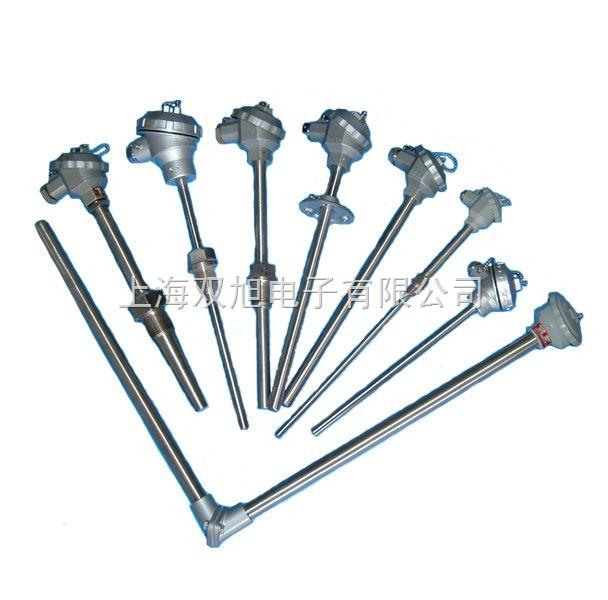

裝配式鉑電阻是由感溫元件、不銹鋼外保護管、接線盒以及各種用途的固定裝置組成，有雙支和單支元件兩種規格，雙支鉑電阻可以同時輸出二組相同電阻信號供使用。
鉑電阻是一種溫度傳感器，它是利用鉑絲在溫度變化時自身電阻也隨著變化的特性來測量溫度的，不銹鋼保護管不但具有抗腐蝕性能，而且具有足夠的機械強度，保證鉑電阻能安全地使用在各種場合，裝配式鉑電阻接線盒分防濺式和防水式兩種類型供選擇。安裝固定裝置有固定螺紋、活動法蘭盤、固定安裝法蘭盤和帶固定螺栓錐形保護管裝置等形式。
|
