裝配式薄膜鉑熱電阻WZP-6212A 廠家
產品概述
裝配式薄膜鉑熱電阻WZP-6212A是一款工業級溫度測量傳感器，采用先進的薄膜鉑電阻技術制造，專為精確測量液體、蒸汽、氣體介質及固體表面溫度而設計。該產品具有高精度、快速響應和優異穩定性的特點，適用于-200℃至500℃的寬溫區測量，能與各類顯示儀表、控制系統配套使用，廣泛應用于石油、化工、電力、冶金等工業領域。其核心元件采用陶瓷基板濺射鉑膜工藝，結合不銹鋼保護管結構，確保在復雜工況下的長期可靠性。815
Technical Specifications
The WZP-6212A assembled thin-film platinum RTD features a Pt100 sensing element with Class B accuracy (±0.3℃ at 0℃). Its compact design incorporates a 1Cr18Ni9Ti stainless steel sheath with fixed threaded connection, offering protection against corrosion and mechanical stress. The sensor demonstrates rapid thermal response (T0.5≤90s) and maintains stable performance under vibration conditions. Specialized manufacturing processes ensure minimal self-heating effect (<0.3℃ at 5mA current) and high insulation resistance (>100MΩ). Customizable insertion lengths (225×75mm standard) accommodate diverse installation requirements.1225
結構特點
該產品采用模塊化裝配設計，包含感溫元件、不銹鋼保護管、防水接線盒及固定螺紋裝置。雙層密封結構有效防止水分和粉塵侵入，防護等級達IP65。保護管經過特殊加工處理，能承受29.4MPa公稱壓力，適用于高壓環境。感溫元件與保護管之間填充高密度氧化鎂絕緣材料，既保證熱傳導效率又增強抗震性能。產品提供單支或雙支元件選項，雙支型號可同步輸出兩組獨立溫度信號，滿足冗余測量需求。814
Performance Advantages
This temperature sensor distinguishes itself through advanced thin-film technology that achieves superior measurement consistency. The laser-trimmed platinum layer on ceramic substrate provides excellent long-term stability with minimal drift. Its robust construction withstands fluid velocities up to 80m/s and maintains accuracy across 500+ thermal cycles. The standardized 3-wire connection simplifies wiring while reducing lead resistance effects. Optional customized configurations include different sheath materials, connection types, and probe dimensions for specialized applications.613
應用領域
WZP-6212A特別適用于流程工業中的關鍵溫度監測點，如反應釜溫度控制、管道介質測溫、熱交換系統監控等場景。在食品加工領域，其衛生型結構設計符合清潔要求；在能源行業中，耐高壓特性適合鍋爐及蒸汽系統；而快速響應特點使其成為塑料擠出、紡織烘干等快速變化溫場的理想選擇。產品經嚴格出廠測試，確保每支傳感器達到標稱性能參數。918
Installation Considerations
For optimal performance, recommend minimum insertion depth of 15 times the sheath diameter plus sensing element length. Avoid mounting near high-emissivity surfaces or strong electromagnetic fields. When measuring flowing media, orient the sensor perpendicular to fluid direction. Periodic verification is suggested for continuous processes exceeding 300℃. The product s interchangeable design facilitates maintenance without system downtime. Standard delivery includes protective cap and terminal identification tags.1415
裝配式薄膜鉑熱電阻
WZP-621, WZP-631, WZP2-621, WZP2-631., WZP-621A, WZP2-621A, WZP-002 WZP-621A, WZP-631, WZP2-621, WZP2-621A, WZP2-631,, WZP-003, WZP-003A, WZP-010, WZP2-010, WZP-011, WZP2-011, WZC-010A, WZP-035S, WZC-001, WZC-200, WZP-260, WZP2-260, WZPM-267,WZP-269, WZP2-260, WZC-269, WZP-270, WZC-270, WZP-280, WZP-260, WZP2-260, WZP-269, WZP2-269, WZC-269, WZC-190, WZC-890J, WZP-892, WZP2-892, WZP2-3212A，WZP2-421B，SBWZ-2481/44SI，WRN-74S，WZPK-426S，WZP-3312A，WZPK2-326SA，WZP2-6312A，WZP-6312A，WZP2-24SA，WZP-24SA，WZP2-6212A，WZP-6212A，WZP-4312A，WZP-4212A，WZP2-3312A，WRNR-01，
概述
工業用薄膜鉑熱電阻作為新一代的溫度測量和調節傳感器，通常用來和顯示儀表等配套，以直接測量各種生產過程中-79℃～600℃范圍內液體，蒸汽和氣體介質及固定表面等溫度。 裝配式鉑電阻采用引進鉑電阻元件作測溫元件。因此，它具有良好的電輸出性能，可為顯示儀、記錄儀、調節儀、掃描儀、數據記錄儀以及電腦提供精確的溫度變化輸入信號。
結構原理

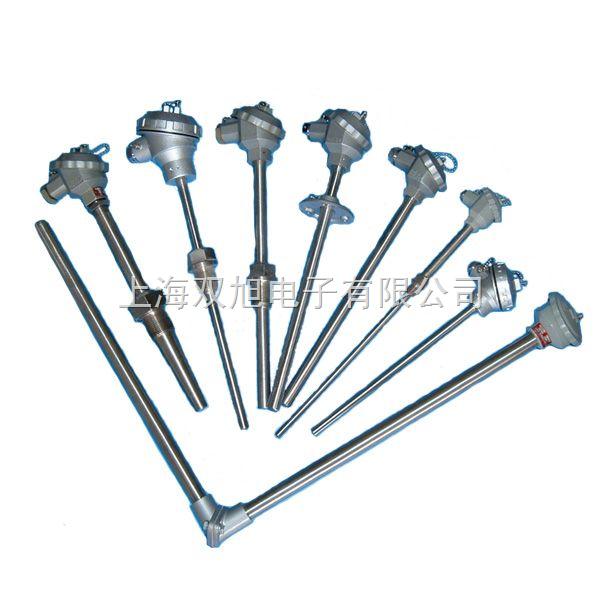

裝配式鉑電阻是由感溫元件、不銹鋼外保護管、接線盒以及各種用途的固定裝置組成，有雙支和單支元件兩種規格，雙支鉑電阻可以同時輸出二組相同電阻信號供使用。
鉑電阻是一種溫度傳感器，它是利用鉑絲在溫度變化時自身電阻也隨著變化的特性來測量溫度的，不銹鋼保護管不但具有抗腐蝕性能，而且具有足夠的機械強度，保證鉑電阻能安全地使用在各種場合，裝配式鉑電阻接線盒分防濺式和防水式兩種類型供選擇。安裝固定裝置有固定螺紋、活動法蘭盤、固定安裝法蘭盤和帶固定螺栓錐形保護管裝置等形式。
|
