電接點雙金屬溫度計WZP-104U 供應

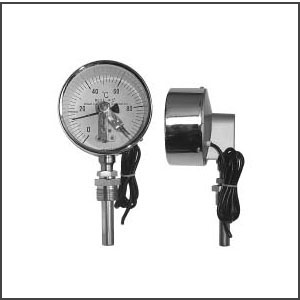

WZP - 104U 電接點雙金屬溫度計產品介紹
中文介紹
WZP - 104U 電接點雙金屬溫度計是一種廣泛應用于工業現場的溫度測量儀表。它采用雙金屬片作為感溫元件，利用雙金屬片在溫度變化時產生彎曲變形的特性，通過機械傳動將溫度變化轉換為指針的偏轉角度，從而實現對溫度的直觀顯示。該溫度計具有測量范圍廣、精度較高、穩定性好等特點，適用于多種工業環境中的溫度監測。
其測量范圍通常覆蓋 - 30℃至 300℃，能夠滿足大多數工業生產過程中的溫度測量需求。外殼采用堅固耐用的材質制成，具備良好的防護性能，可有效抵御外界的機械沖擊、灰塵和水分侵入，確保溫度計在惡劣的工業現場環境中長期穩定運行。同時，它還配備了電接點裝置，當溫度達到設定的上下限值時，能夠輸出電信號，實現溫度的自動控制或報警功能，為工業自動化生產提供了便利。
此外，WZP - 104U 電接點雙金屬溫度計的讀數直觀，操作簡便，維護成本低，是一種經濟實用的溫度測量儀表，深受廣大工業用戶的信賴和青睞。
English Introduction
The WZP - 104U electric contact bimetallic thermometer is a widely used temperature measuring instrument in industrial fields. It employs a bimetallic strip as the temperature - sensing element. The bimetallic strip bends when the temperature changes. This bending deformation is converted into the deflection angle of a pointer through mechanical transmission, thereby achieving intuitive temperature display. This thermometer features a wide measuring range, relatively high accuracy, and good stability, making it suitable for temperature monitoring in various industrial environments.
Its measuring range typically covers - 30℃ to 300℃, which can meet the temperature measurement requirements of most industrial production processes. The housing is made of robust and durable materials, providing excellent protective performance. It can effectively resist mechanical impacts, dust, and moisture ingress from the outside, ensuring the long - term stable operation of the thermometer in harsh industrial environments. In addition, it is equipped with an electric contact device. When the temperature reaches the preset upper and lower limit values, it can output an electrical signal to achieve automatic temperature control or alarm functions, providing convenience for industrial automation production.
Moreover, the WZP - 104U electric contact bimetallic thermometer has an intuitive reading, is easy to operate, and has low maintenance costs. It is an economical and practical temperature measuring instrument that is highly trusted and favored by a large number of industrial users.
電接點雙金屬溫度計
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
電接點雙金屬溫度計，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
應用
電接點雙金屬溫度計應用于生產現場對溫度需自動控制和報警。直接測量各種生產過程中-80～500℃范圍內體、蒸汽
和氣體介質溫度。
電接點雙金屬溫度計的特點：
• 現場顯示溫度，直觀方便；
• 具有自動切斷電源和報警功能；
• 安全可靠，使用壽命長；
• 多種結構形式，可滿足不同要求。
工作原理
電接點雙金屬溫度計是利用溫度變化時帶動觸點變化，當其與上下限觸點或斷開的同時，使電路中的繼電器動作，從而自動控制及報警。
主要技術參數
• 產品執行標準：JB/T8803-1998 GB3836-83
• 標度盤公稱直徑：100
• 精度等級：（1.0），1.5
• 熱響應時間：≤40S
• 防護等級：IP55
• 正常工作大氣條件：溫度-25～+55℃，相對濕度≤85%
• 設定點誤差：設定點誤差應不超過基本誤差限的1.5倍。
• 切換差：切換差應不超過基本誤差限的1.5倍。
• 切換重復性：切換重復性極限范圍不大于基本誤差限值的1/2。
|
