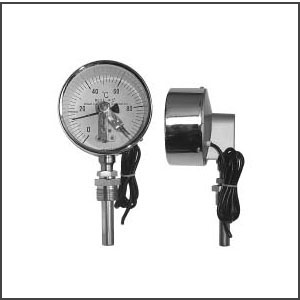

電接點雙金屬溫度計WZPK-503S 價格
產品概述
電接點雙金屬溫度計WZPK-503S是一款廣泛應用于工業現場溫度監測與控制的精密儀表，采用高品質材料和先進工藝制造而成。該產品通過雙金屬片的熱膨脹原理實現溫度測量，具有結構緊湊、響應迅速、性能穩定等特點，能夠可靠地應用于石油、化工、電力等行業的液體、蒸汽及氣體介質溫度測量場景。產品設計充分考慮了工業環境的復雜需求，具備良好的抗震性和耐腐蝕性，確保在各類工況下長期穩定運行。1523
核心特點
電接點雙金屬溫度計WZPK-503S采用螺旋狀雙金屬感溫元件，能夠快速感應溫度變化并通過指針精確顯示數值。其機械觸點裝置可在溫度達到預設閾值時自動觸發電路通斷，實現溫度控制或報警功能。產品配備不銹鋼保護套管，內部填充高密度絕緣材料，既保證了機械強度又增強了抗污染能力。該型號溫度計支持-200℃至500℃的寬范圍測溫，表盤直徑提供多種規格選擇，可根據現場需求靈活配置安裝螺紋尺寸和探桿長度。817
應用場景
This bimetallic thermometer with electrical contact is particularly suitable for temperature monitoring in pipeline systems, reaction vessels and power equipment. Its compact design and vibration resistance make it ideal for installation in confined spaces or high-vibration environments like compressor stations and pumping units. The product is commonly applied in petrochemical plants for crude oil heating systems, in pharmaceutical factories for sterilization process control, and in food processing facilities for pasteurization temperature supervision. The corrosion-resistant housing ensures long-term reliability even when exposed to harsh industrial atmospheres. 228
技術優勢
The WZPK-503S features excellent thermal response characteristics with typical reaction time under 15 seconds, providing real-time temperature feedback for process control. The hermetically sealed casing achieves IP65 protection level, effectively preventing moisture and dust ingress. With its durable stainless steel construction and precision-machined components, this temperature instrument maintains measurement accuracy throughout extended service periods. The clear dial display with anti-parallax design facilitates easy reading from various angles, while the adjustable probe length (available from 50mm to 2000mm) allows customization for different installation requirements. 1023
產品差異化
Compared with conventional thermometers, this electrical contact version adds reliable switching functionality without requiring external power supply. The snap-action contacts provide clean switching signals to control circuits, eliminating contact bounce that could cause erratic operation. Manufacturers have optimized the mechanical structure to minimize hysteresis, ensuring repeatable switching accuracy within ±1.5% of span. For maintenance convenience, some models feature a removable core design that enables sensor replacement without process shutdown. These thoughtful engineering details make WZPK-503S a cost-effective solution for industrial temperature regulation. 317
服務保障
We provide comprehensive technical support for this product series, including installation guidance and operation consulting. The temperature instruments undergo rigorous quality verification procedures during manufacturing to ensure stable performance. With standardized production processes and strict material selection criteria, our bimetallic thermometers deliver consistent quality across all batches. Customers can choose from various connection types including thread, flange or socket weld options to match their existing piping configurations. 228
電接點雙金屬溫度計
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
電接點雙金屬溫度計，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
應用
電接點雙金屬溫度計應用于生產現場對溫度需自動控制和報警。直接測量各種生產過程中-80～500℃范圍內體、蒸汽
和氣體介質溫度。
電接點雙金屬溫度計的特點：
• 現場顯示溫度，直觀方便；
• 具有自動切斷電源和報警功能；
• 安全可靠，使用壽命長；
• 多種結構形式，可滿足不同要求。
工作原理
電接點雙金屬溫度計是利用溫度變化時帶動觸點變化，當其與上下限觸點或斷開的同時，使電路中的繼電器動作，從而自動控制及報警。
主要技術參數
• 產品執行標準：JB/T8803-1998 GB3836-83
• 標度盤公稱直徑：100
• 精度等級：（1.0），1.5
• 熱響應時間：≤40S
• 防護等級：IP55
• 正常工作大氣條件：溫度-25～+55℃，相對濕度≤85%
• 設定點誤差：設定點誤差應不超過基本誤差限的1.5倍。
• 切換差：切換差應不超過基本誤差限的1.5倍。
• 切換重復性：切換重復性極限范圍不大于基本誤差限值的1/2。
|
