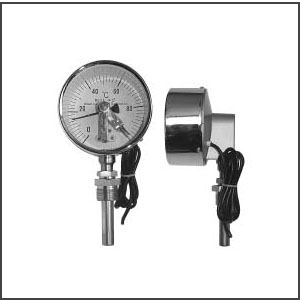

產品名稱：電接點雙金屬溫度計 WZPK-506U
Product Name: Bimetallic Temperature Switch with Electrical Contact WZPK-506U

【產品概述】
WZPK-506U 電接點雙金屬溫度計是一款專為工業溫度監測與控制設計的機械式儀表。產品采用雙金屬螺旋彈簧傳感技術，通過溫度變化驅動機械傳動系統，實現溫度指針顯示與電接點信號輸出的雙重功能。儀表內置可調式電接觸裝置，支持用戶根據實際需求預設溫度報警或控制節點，適用于液體、氣體及蒸汽介質的溫度管理場景。殼體采用全不銹鋼材質，具有良好的抗腐蝕性與抗震性能，可在-20℃至500℃溫度范圍內長期穩定運行。

[Product Overview]
The WZPK-506U bimetallic temperature switch with electrical contact is a mechanical instrument specifically designed for industrial temperature monitoring and control. Utilizing bimetallic helical spring sensing technology, the device converts temperature variations into mechanical movement to drive both analog temperature indication and electrical contact signal output. The integrated adjustable contact mechanism allows users to preset temperature alarm or control setpoints according to operational requirements, making it suitable for temperature management of liquid, gaseous, and steam media. Constructed with stainless steel housing, the device demonstrates excellent corrosion resistance and vibration tolerance, maintaining reliable performance within a temperature range of -20℃ to 500℃.

【核心優勢】

1. 雙功能一體化設計：同步實現溫度可視化監測與電氣控制信號輸出，簡化設備配置流程
2. 寬量程適應性：覆蓋常規工業溫度需求，無需額外配置補償元件
3. 機械式工作原理：無需外部供電即可持續工作，特別適合電力受限環境
4. 防護型結構設計：IP65防護等級殼體可有效抵御粉塵與水霧侵入
5. 定制化服務：提供表盤尺寸、過程連接方式、溫度量程等多參數選配方案

[Core Advantages]

1. Dual-function integration: Combines visual temperature monitoring with electrical control signal output, simplifying system configuration
2. Wide-range applicability: Covers standard industrial temperature requirements without additional compensation components
3. Mechanical operation: Continuous functionality without external power supply, ideal for electricity-restricted environments
4. Protective construction: IP65-rated enclosure effectively resists dust and water ingress
5. Customization service: Offers configurable options including dial size, process connection types, and temperature ranges

【典型應用】
• 熱力管網系統：蒸汽管道溫度保護、換熱裝置過熱預警
• 流程工業設備：反應釜溫度監控、烘箱連鎖控制
• 暖通空調系統：鍋爐安全保護、冷媒管路低溫防護
• 重型機械領域：發動機冷卻系統、液壓油溫管理

[Typical Applications]
• Thermal pipeline systems: Steam line temperature protection, heat exchanger overheat warning
• Process industry equipment: Reactor temperature monitoring, oven interlock control
• HVAC systems: Boiler safety protection, refrigerant line freeze protection
• Heavy machinery: Engine cooling system monitoring, hydraulic oil temperature management

【選型指導】
為滿足不同工況需求，本系列產品提供以下可選項：
• 表頭直徑：100mm/150mm（標配軸向安裝）
• 過程接口：G1/2"、M27×2 等常規工業螺紋規格
• 接點容量：AC 220V 5A（常規配置可定制）
• 接觸形式：單刀單擲（SPST）或單刀雙擲（SPDT）

[Configuration Guidance]
To accommodate diverse operational conditions, the product series provides the following options:
• Dial diameter: 100mm/150mm (standard axial mounting)
• Process connection: G1/2", M27×2 standard industrial threads
• Contact rating: AC 220V 5A (standard configuration with customization available)
• Contact form: Single-pole single-throw (SPST) or single-pole double-throw (SPDT)

該儀表通過機械結構創新實現了溫度監測與控制的經濟型解決方案，建議用戶在選型時重點關注介質特性、安裝空間及控制精度要求。我們的技術支持團隊可提供工況適配分析與安裝指導服務。

[Technical Note]
This instrument delivers a cost-effective temperature monitoring and control solution through mechanical innovation. Users are advised to prioritize medium characteristics, installation space, and control accuracy during selection. Our technical support team provides operational condition analysis and installation guidance services.
