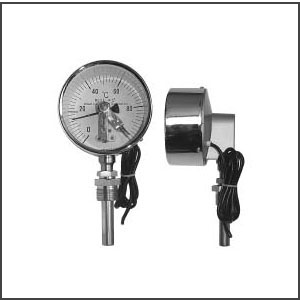

電接點雙金屬溫度計WZPK2-405SA產品介紹
產品概述
電接點雙金屬溫度計WZPK2-405SA是一款基于雙金屬熱敏元件原理設計的工業級溫度測量與控制儀表。產品采用高品質金屬材料制造，通過溫度變化引起的機械形變驅動指針指示溫度值，并配合可調節的電接點裝置實現溫度信號輸出功能。該儀表兼具現場直觀顯示與電氣信號傳輸雙重特性，可廣泛應用于需要溫度監控及自動化控制的工業場景。
核心優勢
本產品采用優化的雙金屬片螺旋結構設計，在-20℃至500℃寬量程范圍內保持穩定的溫度響應特性。表殼選用304不銹鋼材質配合密封結構，能在粉塵、潮濕等復雜工況下保持長期可靠運行。表盤采用高對比度刻度標識與防霧化處理工藝，確保惡劣環境下的可視性。電接點組件配備雙組可調式觸點，支持用戶根據工藝需求靈活設定上下限報警值。產品提供軸向、徑向等多種安裝方式，適配不同設備的結構需求。
應用領域
該溫度計適用于石油化工裝置的溫度監測、食品醫藥生產線的過程控制、暖通空調系統的節能管理、機械設備運行狀態監控等場景。其可靠的結構設計可滿足電力、冶金、水處理等行業的長期使用要求，特別適合需要現場觀測與遠程控制結合的自動化系統集成。
技術參數
測量范圍：-20~500℃（支持分段定制）
精度等級：±1.5% F.S
接點容量：AC 220V 3A（阻性負載）
防護等級：IP65
環境溫度：-10~55℃
接觸電阻：≤50mΩ
電氣接口：M20×1.5或1/2"NPT
安裝螺紋：M27×2或定制規格
Bimetallic Thermometer with Electrical Contact WZPK2-405SA Product Introduction
Product Overview
The WZPK2-405SA bimetallic thermometer with electrical contact is an industrial-grade temperature measurement and control instrument based on the bimetallic thermal element principle. Manufactured with high-quality metal materials, the device utilizes mechanical deformation caused by temperature changes to drive the pointer for temperature indication, while incorporating an adjustable electrical contact mechanism for temperature signal output. This dual-function instrument combines local visual display with electrical signal transmission, making it suitable for various industrial applications requiring temperature monitoring and automated control.
Key Features
The thermometer employs an optimized spiral bimetallic strip structure, maintaining stable temperature response characteristics across a broad measurement range from -20℃ to 500℃. The 304 stainless steel housing with sealed construction ensures long-term reliability in challenging environments containing dust or moisture. The dial features high-contrast graduations and anti-fog treatment for clear visibility under harsh conditions. The electrical contact system includes two adjustable contact points, allowing flexible configuration of upper/lower alarm limits according to process requirements. Multiple installation configurations (axial/radial) are available to accommodate different equipment layouts.
Application Scenarios
This instrument is widely used in temperature monitoring for petrochemical installations, process control in food/pharmaceutical production lines, energy management of HVAC systems, and operational status monitoring of mechanical equipment. Its robust design meets the long-term service requirements in power generation, metallurgy, water treatment and other industrial sectors, particularly suitable for automated systems requiring integration of local observation and remote control capabilities.
Technical Specifications
Measurement range: -20~500℃ (customizable segments)
Accuracy class: ±1.5% F.S
Contact rating: AC 220V 3A (resistive load)
Protection class: IP65
Ambient temperature: -10~55℃
Contact resistance: ≤50mΩ
Electrical connection: M20×1.5 or 1/2"NPT
Mounting thread: M27×2 or custom specifications
