中文產品介紹]

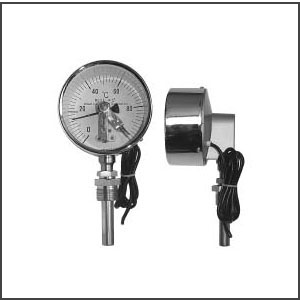

WZPK2-175SA電接點雙金屬溫度計是一款專為工業流程溫度監測設計的精密儀器，采用雙層金屬螺旋傳感技術實現溫度物理量的機械式轉換。該產品通過獨特的機械結構設計，將溫度變化轉化為可直觀讀取的指針指示，并配備可調節電接點裝置，適用于需要溫度控制與信號輸出的工業場景。
本產品核心元件采用耐腐蝕金屬復合材料制造，表殼經精密沖壓工藝成型，具備IP65防護等級，可有效抵御粉塵侵入和水流噴射。雙層金屬傳感系統經過特殊熱處理工藝，在-50℃至500℃范圍內實現線性溫度響應，指針回差誤差控制在量程的±1.5%以內。電接點模塊采用銀合金觸點材質，接觸電阻穩定在50mΩ以下，支持最高250V AC/3A電氣負載。
產品采用徑向安裝結構，表盤直徑75mm，感溫管長度175mm，滿足常規工業設備安裝需求。表面覆蓋防震鋼化玻璃，可在振動頻率低于55Hz、振幅不大于1mm的工況環境下保持穩定工作。針對不同介質測量需求，感溫管可提供304/316不銹鋼材質選項，末端可定制螺紋、法蘭等連接方式。
該溫度計適用于石油化工設備反應釜溫度監控、食品機械殺菌溫度追蹤、暖通系統過熱保護等場景。通過雙設定點調節旋鈕，用戶可自定義上下限報警值，配合繼電器模塊實現設備聯動控制。指針式顯示規避了電子元件老化帶來的偏差風險，機械結構設計使產品在無外部電源環境下仍可保持基礎監控功能。
[English Product Introduction]
The WZPK2-175SA Bimetallic Temperature Switch is a precision instrument designed for industrial process temperature monitoring, employing helical bimetallic strip sensing technology to achieve mechanical conversion of temperature parameters. This device translates thermal variations into visible pointer readings through optimized mechanical construction, featuring adjustable electrical contacts for temperature control applications requiring signal output.
Constructed with corrosion-resistant metal composites, the housing adopts precision stamping technology to achieve IP65 protection rating, effectively resisting dust ingress and water jet exposure. The bimetallic sensing system undergoes specialized heat treatment processes, delivering linear temperature response within -50℃ to 500℃ range with pointer hysteresis controlled within ±1.5% of span. The contact module utilizes silver alloy material maintaining stable contact resistance below 50mΩ, supporting electrical loads up to 250V AC/3A.
Featuring radial mounting configuration, the instrument incorporates a 75mm diameter dial and 175mm sensing probe length suitable for standard industrial installations. Shock-resistant tempered glass cover ensures stable operation under vibration conditions below 55Hz frequency and 1mm amplitude. Customizable probe options include 304/316 stainless steel materials with optional threaded or flanged connections for diverse medium measurement requirements.
This thermometer is ideal for reactor temperature monitoring in petrochemical plants, sterilization process tracking in food processing equipment, and overheat protection in HVAC systems. Dual adjustable setpoint knobs allow users to define upper/lower alarm thresholds, enabling equipment interlocking via relay modules. Analog display eliminates deviation risks from electronic component aging, while mechanical architecture ensures basic monitoring functionality without external power supply.
The product emphasizes structural reliability through cold-forged pressure components and vacuum-sealed movement assembly. Special attention is given to thermal expansion compensation design, ensuring measurement stability during rapid temperature fluctuations. Optional magnetic drive coupling configuration provides galvanic isolation for explosive environments. Periodic maintenance recommendations include annual bearing lubrication and triennial contact resistance verification to sustain long-term operational accuracy.
