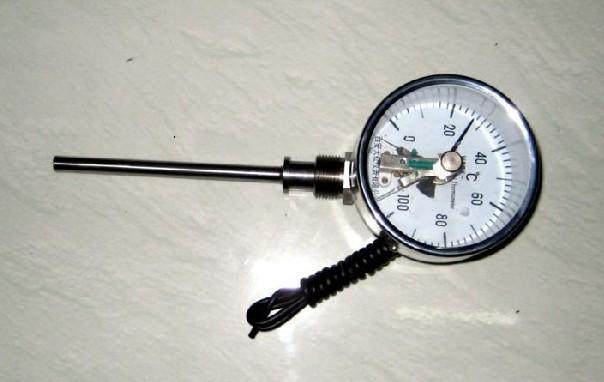

電接點雙金屬溫度計 WSSX-416 產品介紹（中文版）
WSSX-416型電接點雙金屬溫度計是一款適用于工業領域溫度監測與控制的機械式儀表，采用雙金屬傳感原理與電接點控制技術相結合的設計方案。該產品通過內部精密結構的協同作用，實現溫度測量與電氣信號輸出的雙重功能，可廣泛應用于各類設備的過程溫度監控系統。
產品核心結構由感溫元件、傳動機構、指示系統和電接點組件構成。感溫元件采用特殊工藝處理的雙金屬片，在溫度變化時產生形變位移，經機械傳動放大后驅動指針精確指示當前溫度值。電接點組件內置可調節式接點裝置，用戶可通過旋轉表盤外置調節旋鈕，分別設定上下限報警或控制點位。當溫度達到預設值時，接點動作觸發外部電路，實現設備啟停、信號報警或連鎖保護功能。
本產品殼體采用304不銹鋼整體沖壓成型，表盤配置強化玻璃觀察窗，具備良好的密封性與抗震性能，可適應振動環境與戶外工況。表頭支持軸向、徑向、萬向等多種安裝方式，過程連接部件提供多種螺紋規格與法蘭選型，便于匹配不同工業設備的安裝需求。測量范圍覆蓋-80℃至+500℃區間，用戶可根據實際需求選擇合適量程。
產品適用于石油化工、電力能源、機械制造、供熱系統等領域的溫度監控場景，尤其在需要機械式就地指示與電氣控制聯動的應用環境中表現突出。經過優化設計的傳動機構有效降低了指針回差，確保全量程范圍內指示精度控制在±1.5%以內。電接點組件采用銀合金觸點材料，配合雙斷點結構設計，顯著提升接觸可靠性與電氣壽命。
Technical Introduction of Bimetallic Temperature Gauge with Electrical Contact WSSX-416 (English Version)
The WSSX-416 bimetallic temperature gauge with electrical contact is a mechanical instrument designed for industrial temperature monitoring and control applications. Combining bimetallic sensing technology with electrical contact control mechanisms, this device provides both temperature indication and electrical signal output capabilities, making it suitable for process temperature management in various industrial systems.
The instrument s core components include a temperature-sensitive element, mechanical transmission system, indication assembly, and electrical contact unit. The bimetallic strip, manufactured through specialized processing techniques, generates calibrated displacement in response to temperature changes. This movement is amplified through precision gear mechanisms to drive the pointer s accurate indication. The adjustable contact system allows users to set upper/limit control points via an external calibration knob, activating circuit connections when temperature reaches preset values to trigger equipment control or alarm functions.
Constructed with 304 stainless steel housing and reinforced glass window, the gauge demonstrates excellent durability in harsh environments. Its IP65-rated enclosure ensures reliable operation under vibration and outdoor conditions. Multiple installation configurations including axial, radial, and adjustable angle types are available, with various process connection options such as threaded joints and flanges to accommodate different industrial equipment requirements. The measurement range spans from -80℃ to +500℃, with customizable scales to meet specific application needs.
This product is particularly suitable for temperature monitoring in petrochemical plants, power generation facilities, manufacturing equipment, and thermal systems where local indication combined with electrical control is required. The optimized transmission mechanism minimizes pointer hysteresis, achieving overall accuracy within ±1.5% of span. The contact system employs silver alloy materials with double-break configuration, enhancing electrical reliability and operational longevity.
Technical Parameters (中英文對照):
- 精度等級 Accuracy Class: 1.5級 Grade 1.5
- 接點容量 Contact Rating: 24VDC/0.1A (阻性負載 Resistive Load)
- 防護等級 Protection Rating: IP65
- 環境溫度 Ambient Temp: -25℃～+55℃
- 接點數量 Contacts: 1-2組可選 Optional 1-2 sets
- 電氣連接 Electrical Connection: M20×1.5電纜密封接頭 Cable Gland
本產品嚴格執行質量管理要求，提供完善的售前技術咨詢與售后維護支持，致力于為工業用戶提供穩定可靠的過程監控解決方案。生產企業持續優化產品性能，確保每臺出廠設備均經過多道工序檢測與功能驗證。
