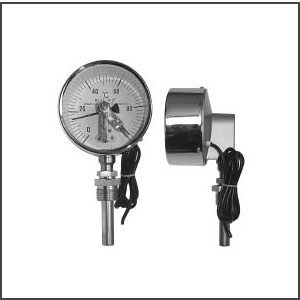

電接點雙金屬溫度計WRNR-01 廠家
產品概述
電接點雙金屬溫度計WRNR-01是一款專為工業溫度監測與控制設計的精密儀器，廣泛應用于石化、電力、食品制藥等領域。該產品采用雙金屬片傳感技術，通過不同金屬的熱膨脹差異驅動指針運動，實現溫度的直觀顯示。同時，其電接點功能可與控制系統聯動，在溫度超限時觸發報警或自動調節，確保生產安全與工藝穩定性。產品測量范圍覆蓋-80℃至+500℃，適應液體、蒸汽及氣體介質的測溫需求。1212
核心特點
WRNR-01具有耐震設計，內部可充裝硅油或采用分離式結構以減少環境振動干擾。表殼采用不銹鋼材質，防腐性強，適用于高溫高壓環境。提供軸向、徑向、萬向等多種安裝形式，支持可動外螺紋、固定法蘭等連接方式，適配不同場景的安裝需求。電接點部分采用繼電器兼容設計，支持上下限報警或雙上限/雙下限設定，操作簡便且可靠性高。熱響應時間≤40秒，確保實時監測的準確性。5719
技術參數
產品執行行業通用技術規范，標度盤直徑100mm，精度等級1.5級，防護等級IP55。正常工作環境為-25℃至+55℃，相對濕度≤85%。設定點誤差不超過基本誤差限的1.5倍，切換差同樣嚴格控制在誤差限范圍內。電氣參數方面，額定功率10VA，最高工作電壓220VAC或24VDC，最大允許電流0.7A，絕緣電阻符合常規工業要求。81120
Product Overview
The WRNR-01 Bimetal Thermometer with Electrical Contact is a precision instrument designed for industrial temperature monitoring and control, widely used in petrochemical, power generation, food processing, and pharmaceutical industries. It utilizes bimetal strip sensing technology to drive pointer movement via differential thermal expansion, providing clear temperature indication. The electrical contact feature enables聯動 with control systems to trigger alarms or automatic adjustments when temperature limits are exceeded, ensuring operational safety and process stability. Its measurement range spans from -80°C to +500°C, suitable for liquids, steam, and gases.14
Key Features
The WRNR-01 incorporates anti-vibration design with options for silicon oil filling or separated structure to minimize environmental interference. The stainless steel casing enhances corrosion resistance for harsh conditions. Multiple installation options (axial, radial, universal) and connection types (movable external thread, fixed flange) ensure adaptability. The electrical contact supports adjustable upper/lower limits or dual-limit configurations, featuring reliable relay compatibility and user-friendly operation. With a rapid thermal response time of ≤40 seconds, it guarantees real-time accuracy.51217
Specifications
This product complies with industry-standard technical requirements, featuring a 100mm dial diameter, 1.5 accuracy class, and IP55 protection rating. Operating conditions cover -25°C to +55°C at ≤85% relative humidity. Setpoint error and switching differential are rigorously controlled within 1.5 times the basic error limit. Electrical parameters include 10VA rated power, 220VAC/24VDC max voltage, 0.7A max current, and standard insulation resistance.81120
電接點雙金屬溫度計
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
電接點雙金屬溫度計，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
應用
電接點雙金屬溫度計應用于生產現場對溫度需自動控制和報警。直接測量各種生產過程中-80～500℃范圍內體、蒸汽
和氣體介質溫度。
電接點雙金屬溫度計的特點：
• 現場顯示溫度，直觀方便；
• 具有自動切斷電源和報警功能；
• 安全可靠，使用壽命長；
• 多種結構形式，可滿足不同要求。
工作原理
電接點雙金屬溫度計是利用溫度變化時帶動觸點變化，當其與上下限觸點或斷開的同時，使電路中的繼電器動作，從而自動控制及報警。
主要技術參數
• 產品執行標準：JB/T8803-1998 GB3836-83
• 標度盤公稱直徑：100
• 精度等級：（1.0），1.5
• 熱響應時間：≤40S
• 防護等級：IP55
• 正常工作大氣條件：溫度-25～+55℃，相對濕度≤85%
• 設定點誤差：設定點誤差應不超過基本誤差限的1.5倍。
• 切換差：切換差應不超過基本誤差限的1.5倍。
• 切換重復性：切換重復性極限范圍不大于基本誤差限值的1/2。
|
