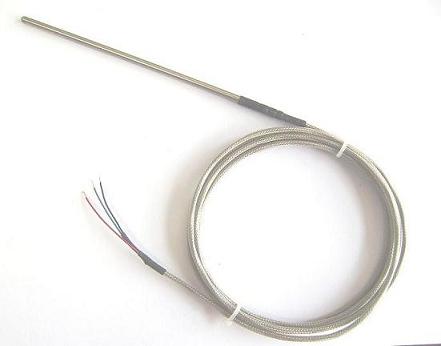

WZPM-202型鉑電阻溫度傳感元件產品介紹
【中文版】
WZPM-202系列鉑電阻元件是專為工業溫度測量領域研發的高性能傳感裝置。該產品采用先進薄膜工藝技術，在純度達99.999%的鉑金屬基材表面形成精密感溫層，通過多層復合結構封裝工藝，確保元件在復雜工況下的長期穩定性。其核心部件經過真空退火處理，有效消除內部應力對測溫精度的影響。
該系列產品工作溫度范圍覆蓋-200℃至+600℃，在常溫區段可實現±0.15℃的測量精度。特殊設計的陶瓷保護基板與金屬引線的匹配熱膨脹系數，有效降低溫度循環導致的機械應力。表面鈍化處理工藝使元件具備良好的抗腐蝕特性，可適應化工、電力等嚴苛環境的應用需求。
產品采用模塊化結構設計，支持多種安裝方式與接口形式。優化的熱響應設計使其在不同介質中展現出良好的動態特性，典型熱響應時間小于3秒（液體介質）。三重絕緣防護結構有效防止漏電流干擾，特別適用于變頻設備等存在電磁干擾的測量場景。
在制造過程中實施全程質量監測體系，每個生產批次均經過72小時連續老化測試。產品廣泛應用于能源裝備、精密制造、環境監測等領域，特別適用于需要長期穩定工作的自動化控制系統。提供定制化服務支持，可根據具體應用需求調整引線長度、封裝形式等參數配置。
【English Version】
The WZPM-202 platinum resistance temperature sensor is a high-performance measurement component developed for industrial applications. Utilizing advanced thin-film technology, the device features a precisely engineered sensing layer on 99.999% pure platinum substrate. Its multi-layer encapsulation structure ensures reliable operation under demanding environmental conditions.
With an operational range spanning -200℃ to +600℃, this series achieves ±0.15℃ measurement accuracy in standard temperature ranges. The specially designed ceramic substrate coordinates thermal expansion coefficients with metal leads, significantly reducing mechanical stress during thermal cycling. Surface passivation treatment enhances corrosion resistance for challenging industrial environments.
Modular construction allows flexible installation configurations and interface compatibility. Optimized thermal dynamics enable rapid response characteristics, achieving typical thermal response time under 3 seconds in liquid media. The triple-insulation structure effectively eliminates leakage current interference, particularly suitable for electromagnetic-intensive applications like variable frequency drive systems.
Manufacturing processes incorporate comprehensive quality control protocols, with each production batch undergoing 72-hour continuous aging tests. These components find extensive application in energy systems, precision manufacturing, and environmental monitoring, especially in automated control systems requiring long-term stability. Customization services are available for lead length, encapsulation design, and other parameter adjustments to meet specific application requirements.
The product s robust construction and stable output characteristics make it a reliable solution for process control systems. Through continuous technical refinement, the WZPM-202 series demonstrates notable performance consistency across varying operating conditions, providing dependable temperature monitoring for modern industrial applications.
