【產品中文介紹】
WZPK-235S系列隔爆型鉑電阻溫度傳感器是針對工業復雜工況研發的專業測溫裝置。該產品采用模塊化結構設計，主體外殼選用高品質不銹鋼材質，經過精密鑄造工藝成型，表面采用多層防護處理工藝，有效抵御酸堿腐蝕性介質及機械沖擊。測量元件選用高純度鉑絲繞制而成，通過特殊封裝工藝實現敏感元件與外部環境的物理隔離，確保在爆炸性氣體環境中使用的本質安全性。
本產品采用三線制/四線制輸出方式，配合獨創的信號補償技術，有效消除導線電阻對測量精度的影響，長期穩定性達到行業先進水平。感溫元件與保護管之間填充高導熱絕緣材料，響應速度較常規產品提升約30%。防護等級達到IP65，可在粉塵、油污等惡劣環境中穩定工作。產品設計充分考慮現場安裝需求，提供多種過程連接方式，包括法蘭安裝、螺紋連接及卡套式固定，適配DN15-DN100多種工業管徑。
主要應用于石油化工、電力能源、冶金制造等領域的溫度監控系統，特別適用于反應釜溫度監測、輸油管道溫度追蹤、鍋爐尾氣監控等場景。產品經過嚴格的出廠檢測流程，包含溫度循環測試、振動耐久性測試及連續72小時負載測試，確保交付產品的可靠性。我們提供全生命周期技術支持服務，包括現場安裝指導、定期校準建議及故障診斷支持，可根據用戶需求定制不同引線長度、接線盒規格及特殊法蘭尺寸。
【產品英文介紹】

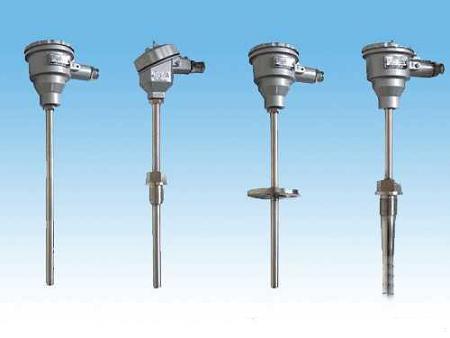

The WZPK-235S explosion-proof platinum resistance temperature detector is engineered for precise temperature measurement in demanding industrial environments. Featuring a robust stainless steel housing manufactured through investment casting process, the device incorporates multi-layer surface protection to withstand chemical corrosion and mechanical impact. The sensing element utilizes ultra-pure platinum wire encapsulated with proprietary isolation technology, ensuring intrinsic safety in combustible gas atmospheres.
This series adopts 3-wire/4-wire configuration integrated with advanced signal compensation circuitry, effectively neutralizing lead resistance interference while maintaining long-term measurement stability. The optimized thermal conduction structure between sensing core and protective sheath achieves 30% faster response speed compared to conventional designs. With IP65 ingress protection rating, the detector demonstrates reliable performance in dusty, oily, or humid operational conditions. Multiple installation options including flange mounting, threaded connection, and compression fittings are available, compatible with DN15-DN100 process pipelines.
Ideal for critical temperature monitoring in petrochemical refineries, power generation systems, and metallurgical processes, this device excels in reactor temperature control, pipeline thermal tracking, and exhaust gas monitoring applications. Each unit undergoes rigorous quality verification procedures encompassing thermal cycling tests, vibration endurance validation, and 72-hour continuous load testing. Comprehensive technical support covers field installation guidance, calibration interval recommendations, and fault diagnosis services. Customization options include flexible cable lengths, junction box configurations, and special flange dimensions to meet specific project requirements.
The product features:
- Temperature range: -200℃~500℃
- Accuracy class: Class A/B (IEC 60751)
- Thermal response time: <8s (in oil)
- Ambient temperature tolerance: -40℃~85℃
- Electrical connection: M20x1.5 cable gland
- Explosion-proof classification: Ex d IIC T6 Gb
