套管式熱電阻WZP-121 價格
產品概述

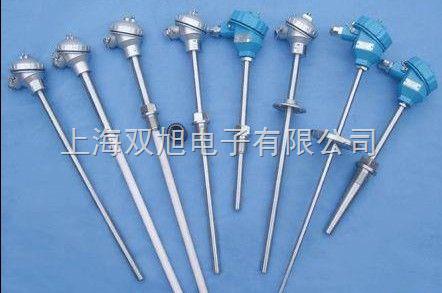

套管式熱電阻WZP-121是一款工業級溫度傳感器，專為測量液體、氣體介質及固體表面溫度設計，適用于-200℃~600℃的寬溫域環境。其核心采用高精度鉑電阻感溫元件（Pt100），確保測量穩定性和可靠性。產品結構緊湊，由感溫元件、保護套管、接線盒及安裝固定裝置組成，可適配多種工業場景，如石油化工、電力冶金、輕紡食品等領域。保護管材質為不銹鋼（如1Cr18Ni9Ti），兼具耐腐蝕與機械強度，適合復雜工況。1913
技術特點
WZP-121采用雙層密封接線盒設計（防濺或防水結構），有效抵御潮濕和粉塵侵入。感溫元件通過絕緣骨架均勻繞制，響應速度快，能準確反映介質的平均溫度。保護管直徑可選12mm或16mm，適配不同安裝需求。產品支持單支或雙支配置，雙支型可同時連接多臺顯示或記錄儀表。其常溫絕緣電阻≥100MΩ（測試電壓10~100V DC），長期使用穩定性?xún)?yōu)異。熱響應時間根據保護管尺寸和介質流速動態優化，滿足實時監控需求。3717
應用場景
該產品廣泛用于流程工業中的溫度監測與控制，如反應釜內液體溫度、管道蒸汽熱力參數、設備表面過熱預警等。在能源領域，可集成至發電機組或輸變電系統的溫度保護回路；在食品制藥行業，符合衛生設計要求的型號適用于潔凈環境。其模塊化結構支持快速更換，降低維護成本�？蛻�(hù)可根據實際需求選擇固定螺紋、活動法蘭等安裝方式，適配不同壓力條件（如固定螺紋型耐壓10MPa）。11018
Product Introduction
The sheathed thermal resistor WZP-121 is a precision temperature sensor designed for industrial applications, covering a measurement range of -200°C to 600°C. It utilizes a Pt100 platinum sensing element to deliver consistent performance in liquids, gases, and solid surfaces. The robust stainless-steel sheath (e.g., 1Cr18Ni9Ti) provides durability against corrosion and mechanical stress, suitable for harsh environments like petrochemical plants and power stations. The compact design integrates a terminal box, protective tube, and mounting fixtures for flexible installation.1921
Key Features
WZP-121 features a sealed terminal box (splash-proof or waterproof) to ensure operational safety in humid/dusty conditions. The finely wound sensing element on an insulated frame ensures rapid thermal response and accurate average temperature readings. Available in 12mm or 16mm sheath diameters, it supports single or dual-channel configurations for multi-instrument connectivity. With insulation resistance ≥100MΩ under DC voltage, it maintains long-term reliability. The optimized thermal response time adapts to varying fluid velocities, ideal for dynamic process monitoring.71323
Applications
This product is widely adopted in process industries for tasks such as reactor temperature tracking, pipeline steam monitoring, and equipment overheating protection. In energy systems, it safeguards generators and transformers via temperature feedback loops. Hygienic variants meet cleanliness requirements in food/pharmaceutical production. Modular components allow easy maintenance, while threaded or flanged mounting options accommodate diverse pressure conditions (e.g., 10MPa rating for threaded types).101824
套管式熱電阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式熱電偶，作為溫度測量和控制的傳感器與顯示儀表配套，以直接測量和控制生產過程中氣體，液體和蒸氣的溫度。不僅用于發電廠管道測溫，同時也用于其他工業部門的測溫。
化工專用隔爆型熱電偶WRCK-502，WRCK-522，WRCK-532，WRCK-592，WRCK-582，WRCK2-521，WRCK2-531，WRCK2-522，WRCK2-532，WREK-1313，WREK-1314，WREK-1315，WREK-1316，WREK-1323，WREK-1324，WREK-1325，WREK-1326，WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRFK-281A, WRFK-181A., WRCK-281A, WRCK-181A, WREK-281A, WREK-181A, WRNK-281A, WRNK-181A, WZPM-202U, WZPM-201U, WRNM-202A, WZPM-101U, WZPM-102U, 化工專用熱電偶WREM-102A, WRNM-201A, WRNM-203A WRNN-436, WRNN2-436, WRN-420B, WRN-430B, WRN2-420B, WRN2-430B, WRE-420B, WRE-430B, WRE2-420B, WRE2-430B, WRN-420C, WRN-430C, WRN2-420C, WRN2-430C, WRE-420C, WRE-430C, WRE2-420C, WRE2-430C, WRN-420D, WRN-430D, WRN2-420D, WRN2-430D, WRE-420D, WRE-430D, WRE2-420D, 可動式熱電偶WRE2-430D, WZP-420B, WZP-421B, WZP-430B, WZP-431B, WZP2-420B, WZP2-421B, WZP2-430B, WZP2-431B, WZC-420B, WZC-430B, WZP-420C, WZP-421C, WZP-430C, WZP-431C, WZP2-420C, WZP2-421C, WZP2-430C, WZP2-431C, WZC-420C, WZC-430C, WZP-420D, WZP-421D, WZP-430D, WZP-431D, WZP2-420D, WZP2-421D, WZP2-430D, WZP2-431D, WZC-420D, WZC-430D.WRR-433Q, WRNR-93UC, WRER-93UC, WRNR2-93UC, WRER2-93UC, WRNT-001, WRNT2-001, 耐腐、耐磨熱電偶WRET-001, WRET2-001, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRER-13, WRNR2-13. WRER2-13. WRNR-14, WRER-14, WRNR2-14, WRER2-14, WRNR-15, WRER-15, WRNR2-15, WRER2-15, WRN-15A, WRER-15A, WRNR2-15A, WRER2-15A, WRNT-31, WRET-31, WRNT2-31, WRET2-31, 套管式熱電偶WRNK-841n﹡D, WRNK-842n﹡D, WREK-841n﹡D. WREK-842n﹡D, WRNK-841n﹡I, WRNK-842n﹡I, WREK-841n﹡I. WREK-842n﹡I, WREK-842n﹡I, WRN-240A, WRN2-240A, WRE-240A, WRE2-240A, WRN-640A,WRN2-640A,WRE-640A,WRE2-640A, WRN-440A,WRN2-440A, WRE-440A,WRE2-440A, WRNK-240, WRNK2-240, WREK-240, WREK2-240, WRNK-440, WRNK2-440, WREK-440, WREK2-440, WRN-74O,WRN2-74O, WRN-74O, WRN2-74O, WRNR-15, WRNR2-15, WRNR-15A, WRNR2-15A, WRER-15, WRER2-15, WRER-15A, WRER215A, WRN-624, WRN-625, WRE-624, WRE-625, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRNR2-13, WRER-13, WRER2-13,WRNR-14, WRNR2-14, WRER14, WRER2-14, WRN-631, WRN2-631, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRN-130, WRN2-130, WRN-230, WRN2-230, WRN-330, WRN2-330, WRN2-430, WRN-430, WRE-130, WRE2-130, 熱電偶 WRE-230, WRE2-230, WRE-330, WRE2-330, WRE-430, WRE2-430, WREK-1313, WREK-1314, WREK-1315, WREK-1316, WREK-1323, WREK-1324, WREK-1325, WREK-1326, WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRN-001, WRE-001. WRN-002, WRE-002, WRN-235T, WRN2-235T, WRE-235T, WRE2-235T, WRN-130-F, WRN-230-F, WRN-330-F, WRN-430-F, WRN2-130-F, WRN2-330-F, WRN2-430-F, WRE-130-F, WRE-230-F, WRE-330-F, WRE-430-F,WRE2-130-F,WRE2-230-F,WRE2-330-F.WRE2-430-F.WRN-130(*),WRN-230(*),WN-330(*),WN-430(*).,WRNN2-130(*),WNN2-230(*),WRNN2-330(*),WNN2-430(*),WREN-130, WREN-230, WREN-330, WREN-430, WREN2-130, WREN2-230, WREN2-330, WREN2-430, WRNN-530(*),WRNN2-530(*),WREN-530,WREN2-530,WRNN-631(*),WRNN2-631(*),WREN-631, WREN2-631, WRN-12B, WRE-12B, WRN2-12B, 裝配式熱電偶WRE2-12B, WRN-13B, WRE-13B, WRN2-13B, WRE2-13B, WRN-14B, WRE-14B, WRN2-14B, WRE2-14B, WRN-15B, WRE-15B, WRN2-15B, WRE2-15B, WRN-15AB, WRE-15AB, WRN2-15AB, WRE2-15AB, WRN-4318, WRE-4318,,WN2-4318, WRE2-4318, WRN-43C, WRE-43C, WRN2-43C, WRE2-43C, WRR-120, WRR-121, WRR2-120, WRR2-121, WRP-120, WRP-121, WRP2-120,,
|
