裝配式薄膜鉑熱電阻WZP2-260 供應
【產品中文介紹】
裝配式薄膜鉑熱電阻WZP-260是一款基于先進傳感技術研發的高性能溫度測量元件，專為工業領域復雜工況下的精準測溫需求設計。產品采用模塊化裝配結構，兼顧可靠性與便捷性，可廣泛應用于石油化工、電力能源、機械制造、環境監測等行業的溫度監控系統。
本產品核心部件采用高純度鉑薄膜傳感材料，通過精密微加工工藝制成厚度均勻的敏感層，結合獨特封裝技術顯著提升熱響應效率。傳感器部件與保護套管采用分體裝配設計，既可靈活適配多種安裝場景，又便于后期維護更換。金屬外殼經特殊表面處理工藝，可有效應對潮濕、粉塵及弱腐蝕性介質的長期作用，確保測量穩定性。
在性能表現方面，產品測溫范圍覆蓋-50℃至+500℃常用工業區間，整體線性度誤差控制在±0.3%以內，在連續工作環境下仍能保持優于0.1℃/年的溫漂特性。通過優化結構設計，其熱響應時間較傳統產品縮短約30%，特別適合需要快速反饋溫度變化的工藝流程。產品支持多規格引線接口配置，可無縫對接主流PLC系統及數字儀表。
我們始終關注工業現場的實際應用需求，持續改進產品防護等級與抗震性能。所有出廠產品均經過多道質量檢測工序，從原材料篩選到成品測試建立完整的質量追溯體系，為設備連續穩定運行提供可靠的溫度監測解決方案。
【Product Introduction in English】
The WZP-260 modular thin-film platinum RTD is a high-performance temperature sensing component developed with advanced sensing technology, specifically engineered for precision measurement in complex industrial environments. Featuring a modular assembly design that balances reliability and ease of installation, this product is widely applicable in temperature monitoring systems across petroleum refining, power generation, mechanical manufacturing, and environmental monitoring sectors.
At the core of the device lies a high-purity platinum thin-film sensing element manufactured through precision micro-fabrication processes. The uniform thickness of the active layer combined with specialized encapsulation technology ensures exceptional thermal response characteristics. The separable assembly design between sensing unit and protective sheath allows flexible adaptation to diverse installation scenarios while simplifying maintenance procedures. The metal housing with surface treatment provides durable protection against moisture, particulate matter, and mild corrosive media.
Delivering reliable performance across -50℃ to +500℃ range, the device maintains linearity within ±0.3% and exhibits long-term stability with thermal drift below 0.1℃/year. Optimized structural design achieves 30% faster response time compared to conventional models, making it particularly suitable for processes requiring rapid temperature feedback. Multiple lead wire configurations ensure compatibility with mainstream PLC systems and digital instrumentation.
Our continuous product improvement focuses on enhancing environmental resilience and vibration resistance. Each unit undergoes rigorous multi-stage quality inspections, with full traceability from material selection to final testing. This comprehensive quality assurance protocol supports reliable temperature monitoring for critical industrial equipment, contributing to sustained operational stability in demanding working conditions.
裝配式薄膜鉑熱電阻
WZP-621, WZP-631, WZP2-621, WZP2-631., WZP-621A, WZP2-621A, WZP-002 WZP-621A, WZP-631, WZP2-621, WZP2-621A, WZP2-631,, WZP-003, WZP-003A, WZP-010, WZP2-010, WZP-011, WZP2-011, WZC-010A, WZP-035S, WZC-001, WZC-200, WZP-260, WZP2-260, WZPM-267,WZP-269, WZP2-260, WZC-269, WZP-270, WZC-270, WZP-280, WZP-260, WZP2-260, WZP-269, WZP2-269, WZC-269, WZC-190, WZC-890J, WZP-892, WZP2-892, WZP2-3212A，WZP2-421B，SBWZ-2481/44SI，WRN-74S，WZPK-426S，WZP-3312A，WZPK2-326SA，WZP2-6312A，WZP-6312A，WZP2-24SA，WZP-24SA，WZP2-6212A，WZP-6212A，WZP-4312A，WZP-4212A，WZP2-3312A，WRNR-01，
概述
工業用薄膜鉑熱電阻作為新一代的溫度測量和調節傳感器，通常用來和顯示儀表等配套，以直接測量各種生產過程中-79℃～600℃范圍內液體，蒸汽和氣體介質及固定表面等溫度。 裝配式鉑電阻采用引進鉑電阻元件作測溫元件。因此，它具有良好的電輸出性能，可為顯示儀、記錄儀、調節儀、掃描儀、數據記錄儀以及電腦提供精確的溫度變化輸入信號。
結構原理

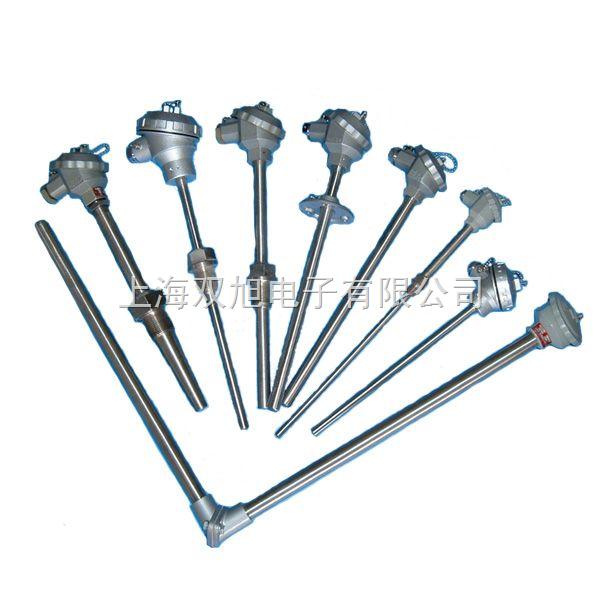

裝配式鉑電阻是由感溫元件、不銹鋼外保護管、接線盒以及各種用途的固定裝置組成，有雙支和單支元件兩種規格，雙支鉑電阻可以同時輸出二組相同電阻信號供使用。
鉑電阻是一種溫度傳感器，它是利用鉑絲在溫度變化時自身電阻也隨著變化的特性來測量溫度的，不銹鋼保護管不但具有抗腐蝕性能，而且具有足夠的機械強度，保證鉑電阻能安全地使用在各種場合，裝配式鉑電阻接線盒分防濺式和防水式兩種類型供選擇。安裝固定裝置有固定螺紋、活動法蘭盤、固定安裝法蘭盤和帶固定螺栓錐形保護管裝置等形式。
|
