熱套式雙金屬溫度計WSSX-483L 供應
產品概述
WSSX-483L熱套式雙金屬溫度計是一款適用于工業現場溫度測量的高可靠性?xún)x表，可直觀顯示液體、蒸汽及氣體介質的溫度，測量范圍覆蓋-80℃至+600℃。該產品采用熱套式設計，能夠配合多種安裝套管，適應不同壓力環境需求，尤其適用于高溫、高壓或有害氣體工況下的連續生產場景，更換機芯時無需停機操作，顯著提升生產效率。其核心雙金屬片結構通過熱膨脹原理驅動指針旋轉，確保溫度指示穩定準確。1310
技術特點
該溫度計的表殼采用防腐蝕材質，防護等級達IP55，可抵御惡劣環境；標度盤提供60mm、100mm、150mm三種直徑規格，支持徑向、軸向或萬向安裝方式，適配多樣化現場需求。熱響應時間≤40秒，確保實時監測效率。產品支持內置鉑電阻或熱電偶模塊，便于遠傳信號集成。其獨特的熱套結構設計解決了傳統溫度計因頸部較短需破壞保溫層的問題，節能且便于觀察。31215
應用場景
WSSX-483L廣泛應用于電力、石油、化工、冶金等行業的流程控制，如熱力管道、反應釜及蒸汽系統。典型場景包括秦山核電站、揚子石化等大型項目的溫度監控，以及出口至東南亞、中東等地區的工業設備配套。產品在高溫硅橡膠電纜生產、化工廠反應過程等場景中表現優異，用戶反饋其耐用性與操作便捷性突出。62325
Product Introduction
The WSSX-483L Sheath-type Bimetallic Thermometer is designed for reliable temperature measurement in industrial environments, with a range of -80°C to +600°C. It features a sheath-mounted design compatible with various installation sleeves, enabling adaptation to diverse pressure conditions without downtime during maintenance. The bimetallic coil mechanism ensures stable readings, while the robust housing (IP55-rated) resists corrosion. Options for remote signal transmission via integrated sensors enhance flexibility. 11015
Key Features
With multiple dial sizes (60/100/150mm) and installation orientations (radial/axial/universal), this thermometer suits complex layouts. Its ≤40s thermal response time guarantees timely monitoring. The extended neck design preserves insulation layers, reducing energy loss. Customizable protection tubes (e.g., 1Cr18Ni9Ti) cater to corrosive media. Applications span power plants, refineries, and chemical processing, notably in projects like Sinopec s facilities and overseas exports. 31223
Applications
Ideal for steam pipelines, reactors, and hazardous gas systems, the WSSX-483L excels in industries requiring continuous operation. It has been deployed in nuclear power stations, petrochemical complexes, and international industrial installations, praised for its durability and maintenance efficiency. The design minimizes thermal leakage, aligning with energy-saving requirements in large-scale production. 625

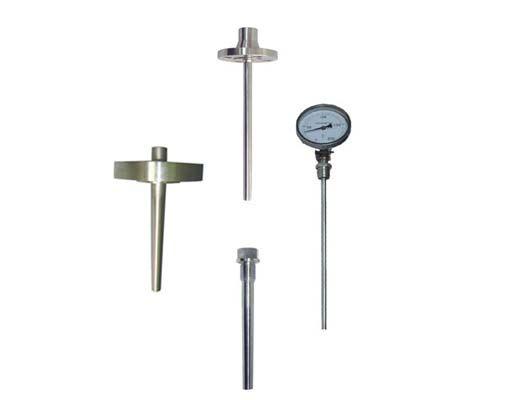

熱套式雙金屬溫度計
WSSX-403L，WSSX-483L，WSS-483L，WSS-413L，WSS-413L，WSS-503L，WSS-403L，WSSX-483S，WSSX-413S，WSS-483S，WSS-513S，WSS-413S，WSS-503S，WSS-403S，WSSX-486
應用
熱套式雙金屬溫度計可配合各式安裝套管，滿足不同壓力等級要求�？梢灾苯訙y(cè)量各種生產過程中的 -80-+500 ℃范圍內液體、蒸汽和氣體介質以及固體表面測溫。
主要技術參數
標度盤公稱直徑：100
精度等級：1.0、1.5
連接尺寸：M20x1.5、NPT1/2
熱響應時間：≤40s
防護等級：IP55
注：
可配各式安裝套管，熱安裝套管形式詳見熱安裝套管；
保護管其余材質根據協議訂貨；
打﹡表示公稱壓力根據法蘭壓力等級而訂。
選型須知
型號
精度等級
測溫范圍
安裝固定形式
熱安裝套管形式
插入長度
例A：萬向型雙金屬溫度計，測溫范圍0-400℃。熱安裝套管TH01F，插入長度300mm.即為：WSS-483TH01F 0-400℃ l=300mm.
|
